Manometer

ELECALL Digitales Differenzdruckmessgerät Luft-Gas-Messgeräte Barometer für Über- und Unterdruck im Reinraum KPA/mbar

47,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 8–15 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

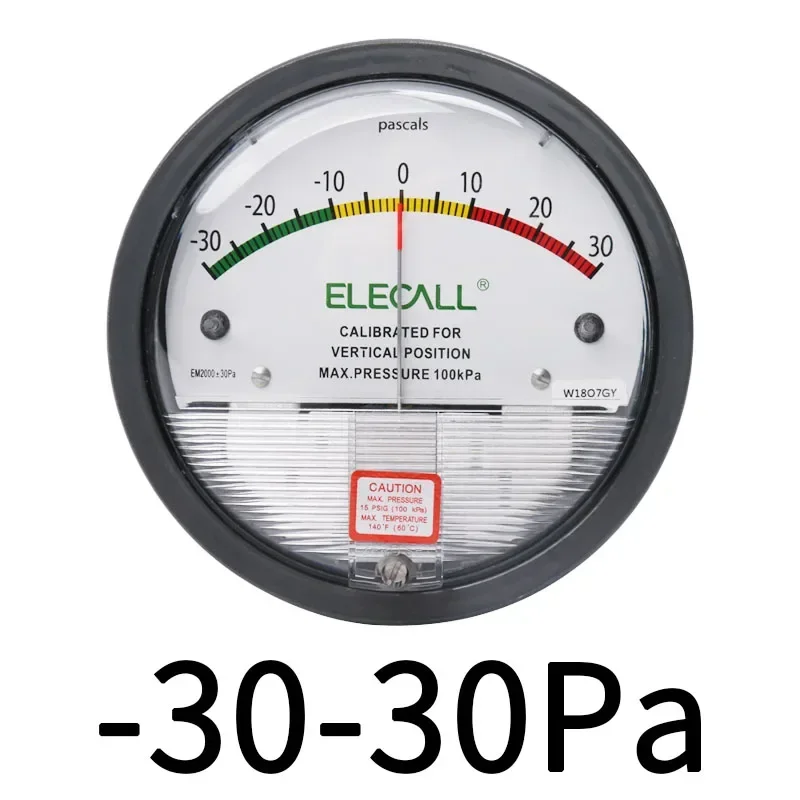

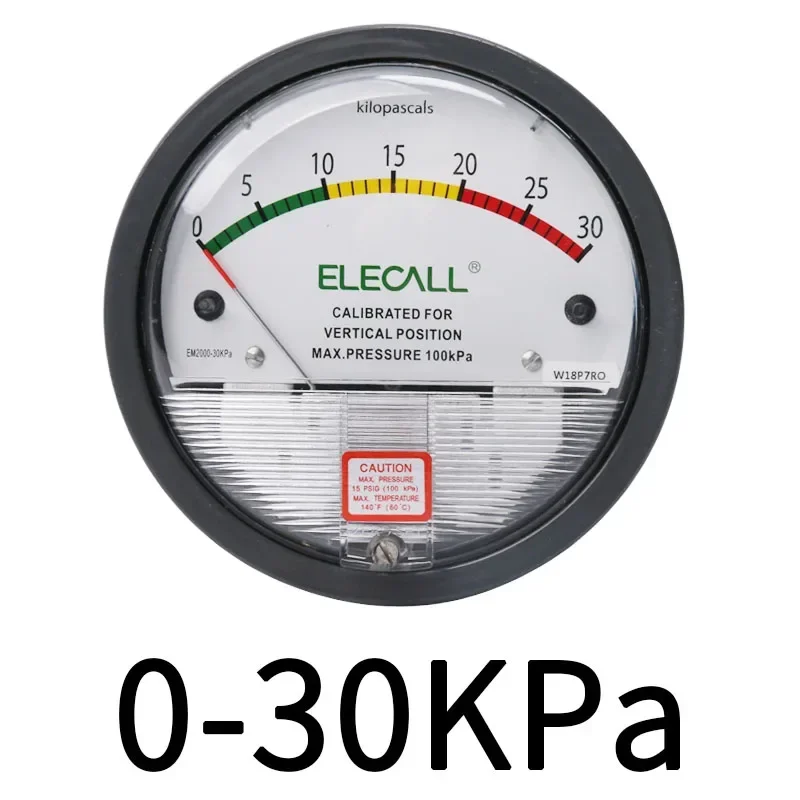

ELECALL EM2000 -30PA~30KPA Micro Differential Pressure Gauge High Precision Air Pressure Meter Barometer
Specification
Product Name: ELECALL micro differential pressure gauge
Temperature range:-7-60°
Dimensions:120*55mm
Rated pressure: -68-103kpa
Weight:540g
Overpressure: Rubber plug will break away when 172kap
Range: Minimum0-60pa,Max 0-210kpa
Material: Pressed cast aluminum
Connection: High pressure and low pressure will be 1/8" spinal canal thread
Accuracy: 21°:±2%FS(-125pa;250pa is 3%, -60pa is 4%)
Connections: 1/8" female NPT high and low pressure taps, duplicated, one pair side and one pair back
Features
1. Virtually eliminating the friction generated by the rotation gear
2. The inner table without filling liquid. No inertia, no drift pointer movement.
3. Excellent anti-vibration, anti-jitter performance.
4. Excellent resistance to pressure overload, measurable, positive, negative or differential pressure.
5.Free and Flexible installation.
6. Has a simple structure, small size, low power consumption and high precision, suitable for almost all application areas.
