1 Stück GX12 GX16 Wasserdichter Luftfahrtstecker 2P3P4P5P6P7P8P9P10 Pin Verdrahtungsstromanschluss Luftstecker mit Kabel

7,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 31–38 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

GX12 GX16 Butt Joint Waterproof Aviation Plug Socket Connector 2P3P4P5P6P7P8P9P10 Pins Power Connector Air Plug With Wire Cable
pls notice the price is one piece male with cable or female with cable.
pls choice it when make order, thanks.
Description
Package: one piece,pls choice male or female when make order.
Diameter:16mm or 12mm
Pacakge:one piece

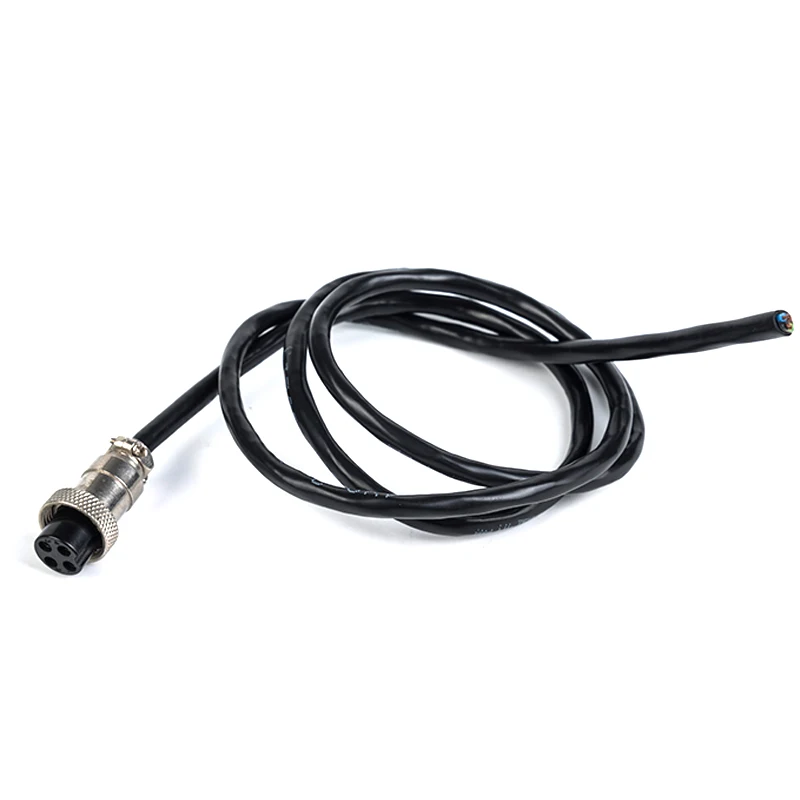

Male plug with cable: 18cm length cable
Female socket with cable: 1m length cable
Environmental conditions
Ambient temperature: -50 ~ +70 C
Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2
Centrifugal: acceleration 250m/s2
Main technical characteristics
Rated voltage: 2 core /3 core/ 4 core- 400V, 5 pin /6 pin /7 pin /8pin- 250V Rated current: 5A
Contact resistance: (each contact pair)Less than 0.005 Ω
Insulation resistance: In normal conditions, not less than 1000MΩ; after constant warm tests, not less than 20MΩ.
