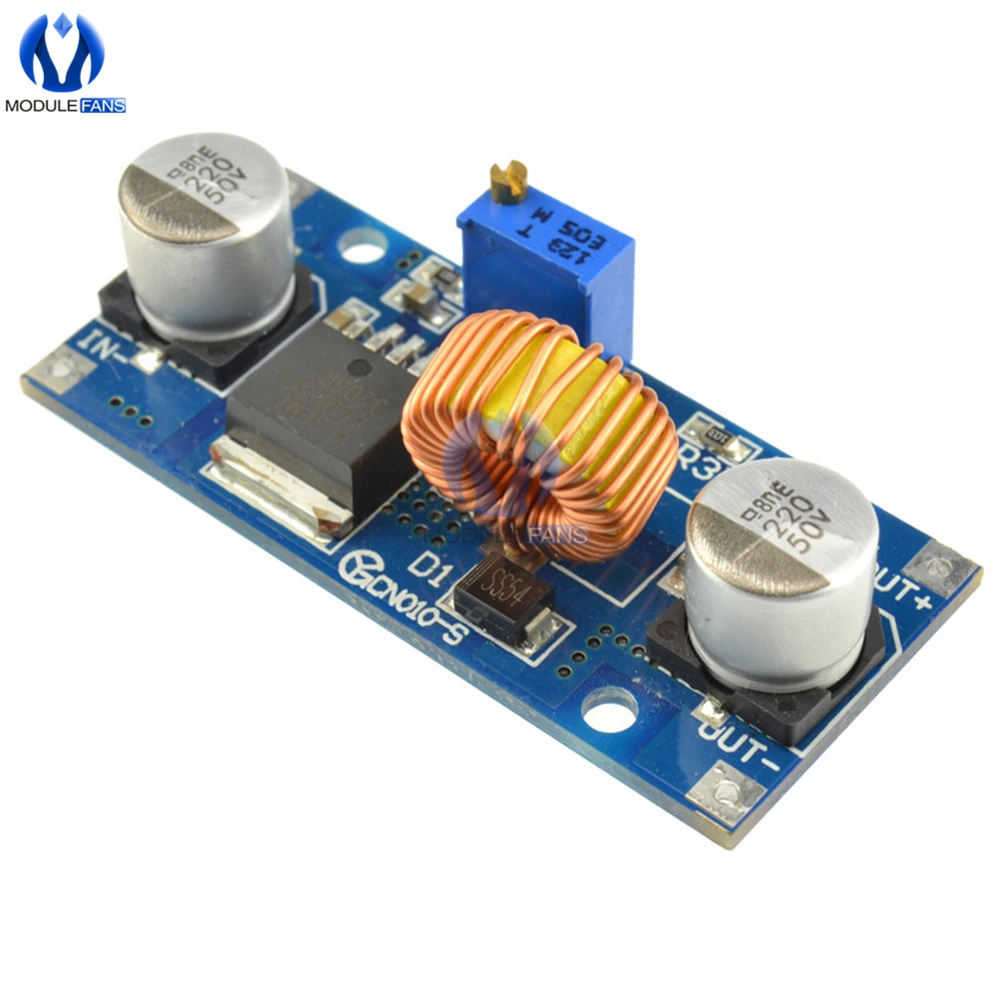

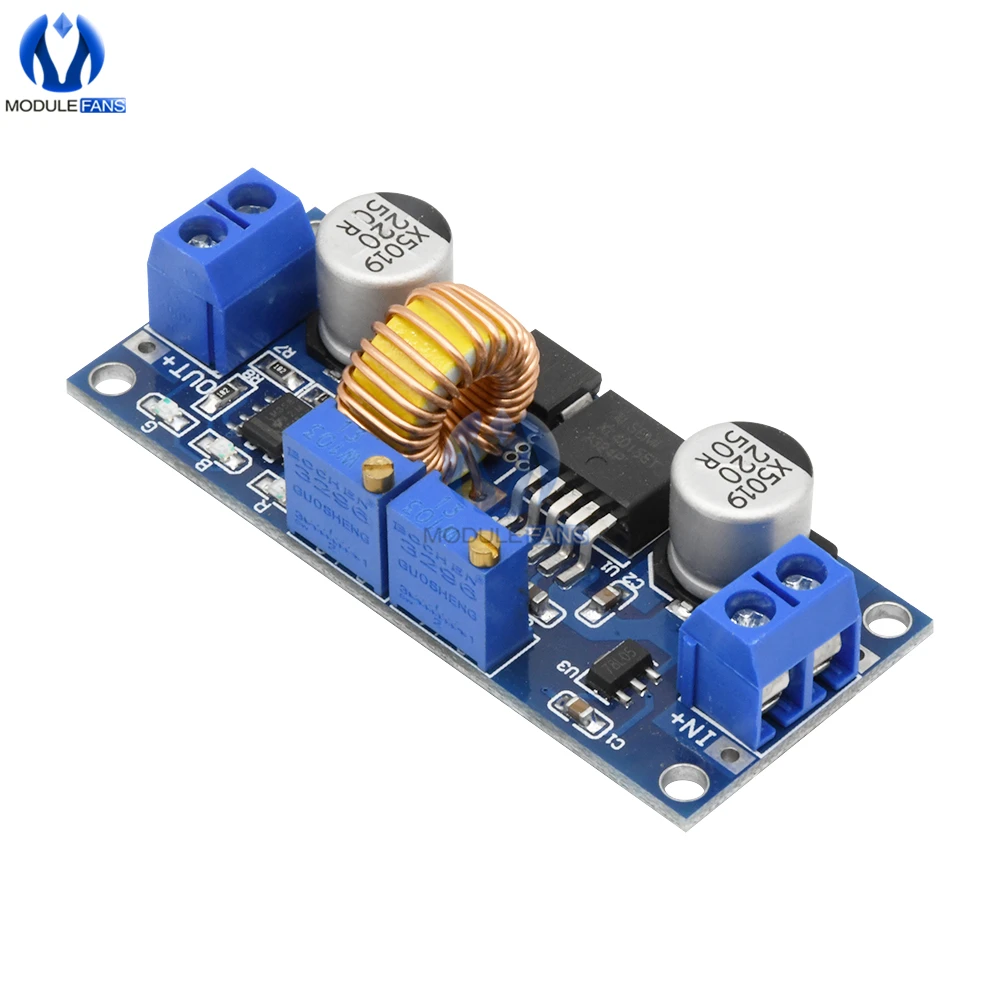

XL4015E1 5A DC-DC Buck Step-down Modul Schritt-unten Schaltung DC Zu DC Spannung Schritt Up Down-konverter Spannung Und Strom Regler

Produktbeschreibung

XL4015E1 5A DC-DC Buck Step-down Module Step-down Circuit DC To DC Voltage Step Up Down-converter Voltage And Current Regulator
Specification

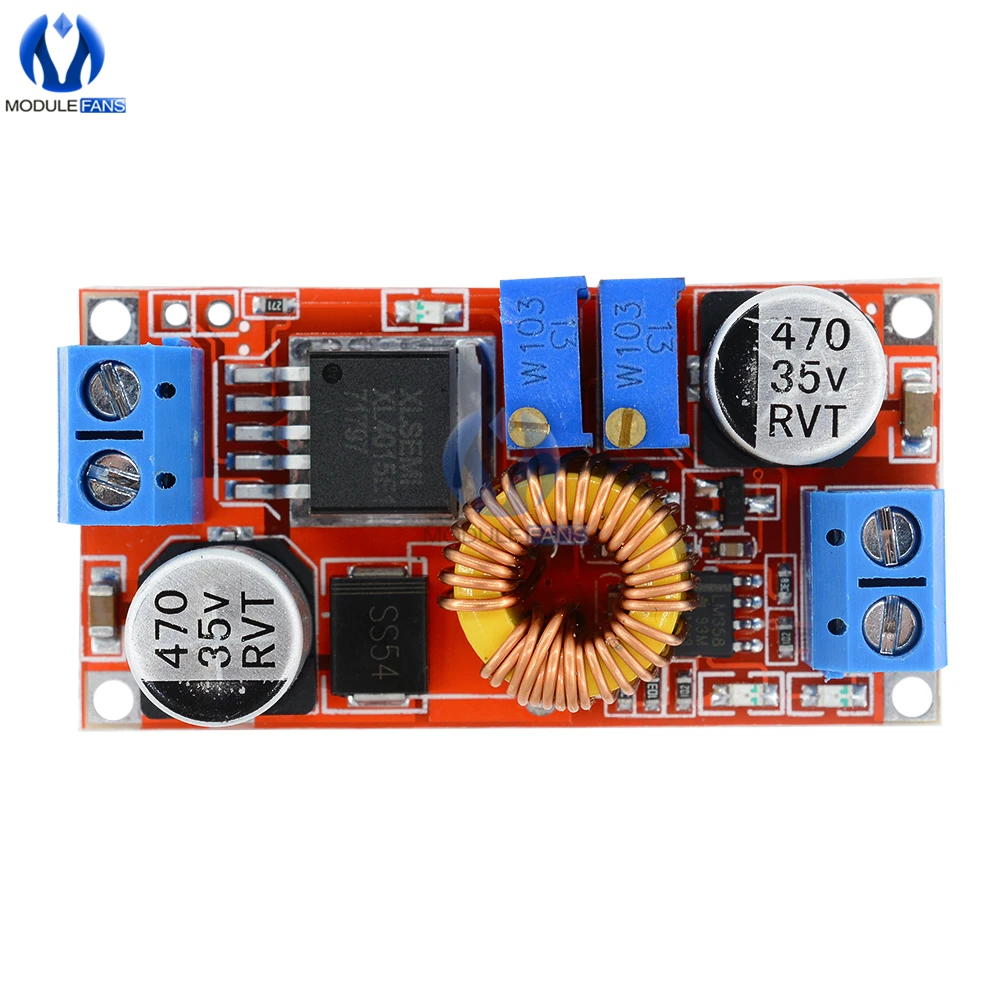

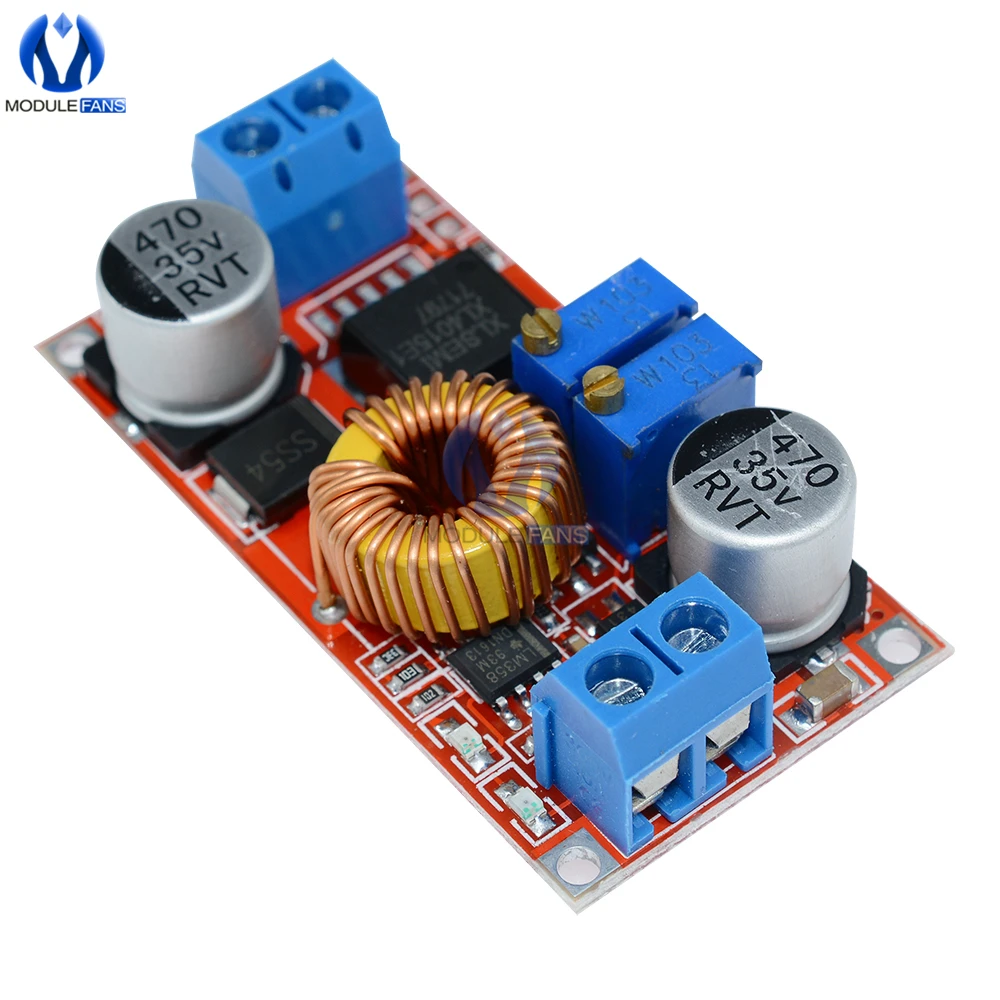

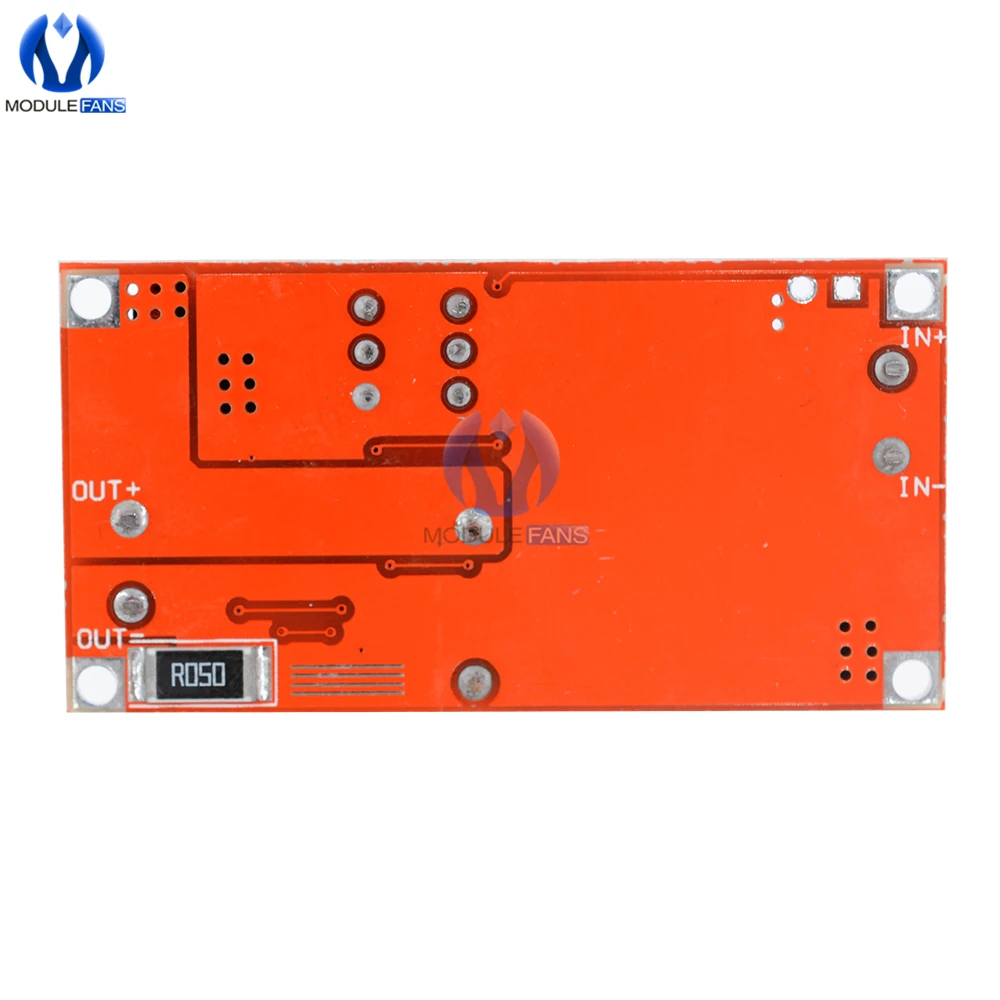

XL4015 red
Size: 51 * 26.3 * 14 (L * W * H) (mm)
Operating Temperature: -40 ° to +85 °
Voltage Regulation: ± 2.5%
Load Regulation: ± 0.5%
Output ripple: 50mV (max) 20M bandwidth
Switching frequency: 300KHz
Conversion efficiency: 95% (the highest)
Output current: adjustable maximum 5A
Output voltage: 0.8V-30V
Input voltage: 5V-32V
Rectification: non-synchronous rectification
Module Properties: non-isolated constant current and voltage module.

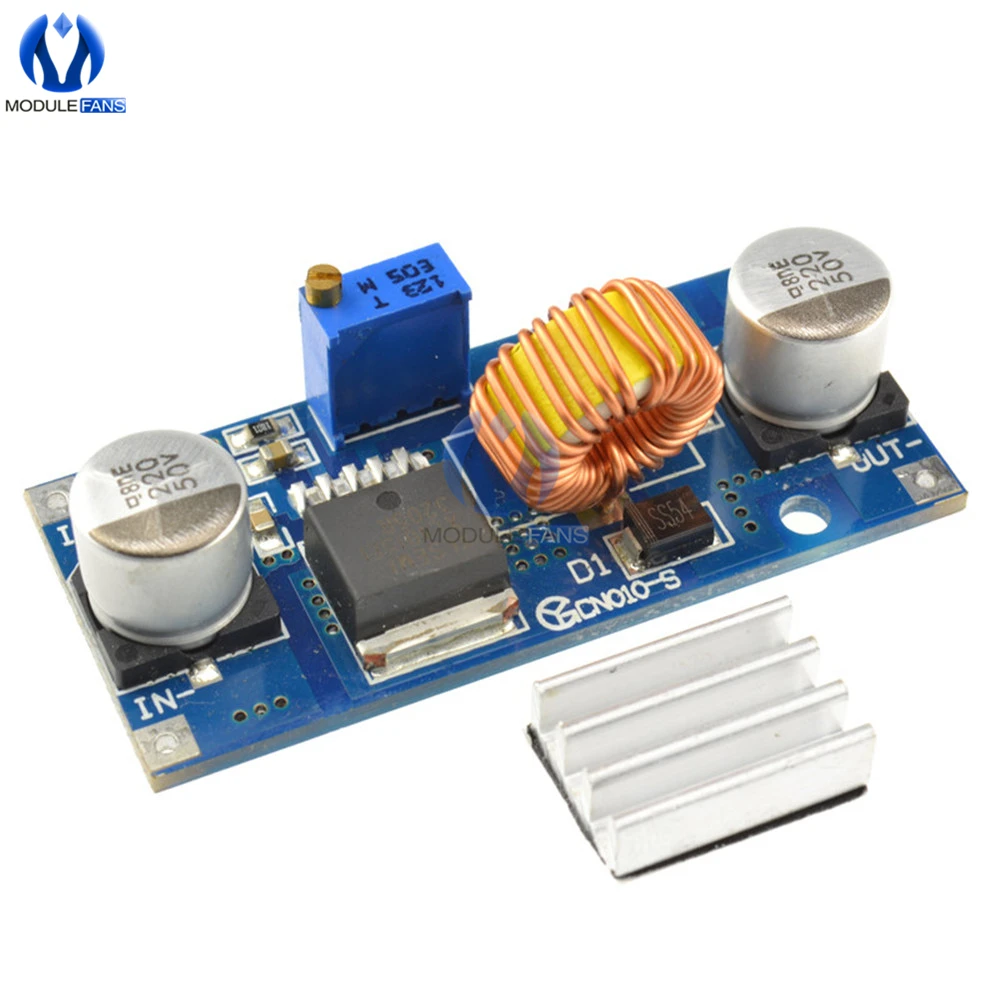

XL4015 With Radiator
Module nature: non-isolated step-down module (BUCK)
Input voltage: 4-38V (please try not to exceed 38V for input)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A, it is recommended to use within 4.5A.

Produktdetails in Bildern

Produkteigenschaften

Markenname

diymore

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Buck-Regler (Abwärtsregler).

Versorgungsspannung

0.8-30V To 5-32V

Verlustleistung

Dc-dc step down

ist kundenspezifisch

Ja

Betriebstemperatur

dc dc step-down module

feature 1

Step-down circuit

feature 2

Down-converter

feature 3

step up converter

feature 4

Voltage converter

feature 5

step up

feature 6

voltage and current regulator

feature 7

dc dc converter
