RGB-LED-Streifen-Anschluss für 10 mm 4-polige IP20 IP65 5050 2835 SMD RGB-Bandleuchten, Drahtanschlüsse, L-förmige Befestigungsclips

Produktbeschreibung

Tips before purchase
��. Please check the width, IP rating, voltage of your LED strip, and wire gauge, then check if the connector is suitable for your LED strip and wire
��. Please ensure that the width of the LED strip is consistent with the width of the connector used (for example, 8mm connectors cannot be used for 10mm or 5mm wide LED strip)
��. This connector can only be used for low-voltage LED strip(5-36V). If your LED strip is 110V/220V, please do not use this connector

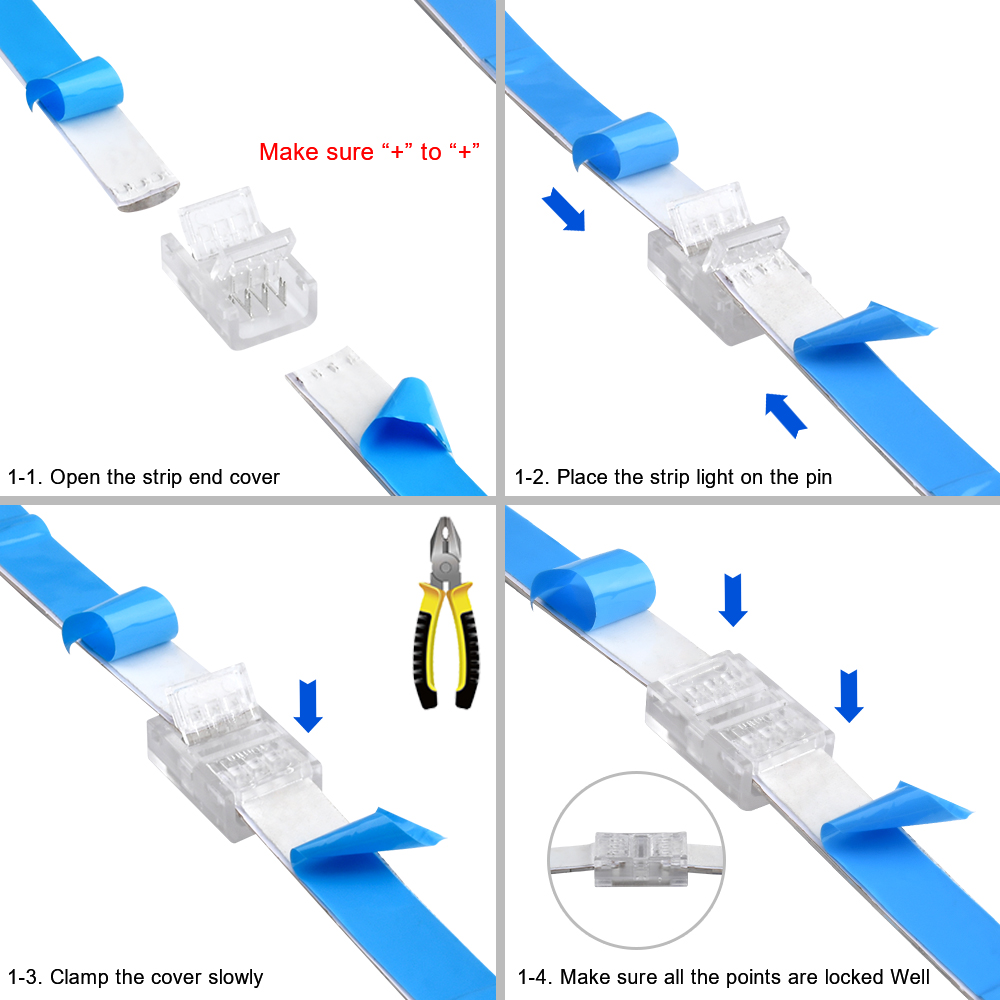

��. Before connecting, please remove the release paper from the back tape of the LED strip
��. Before connecting, please ensure that the positive and negative poles ("+" / "-") of the LED strip on both ends of the connector are consistent

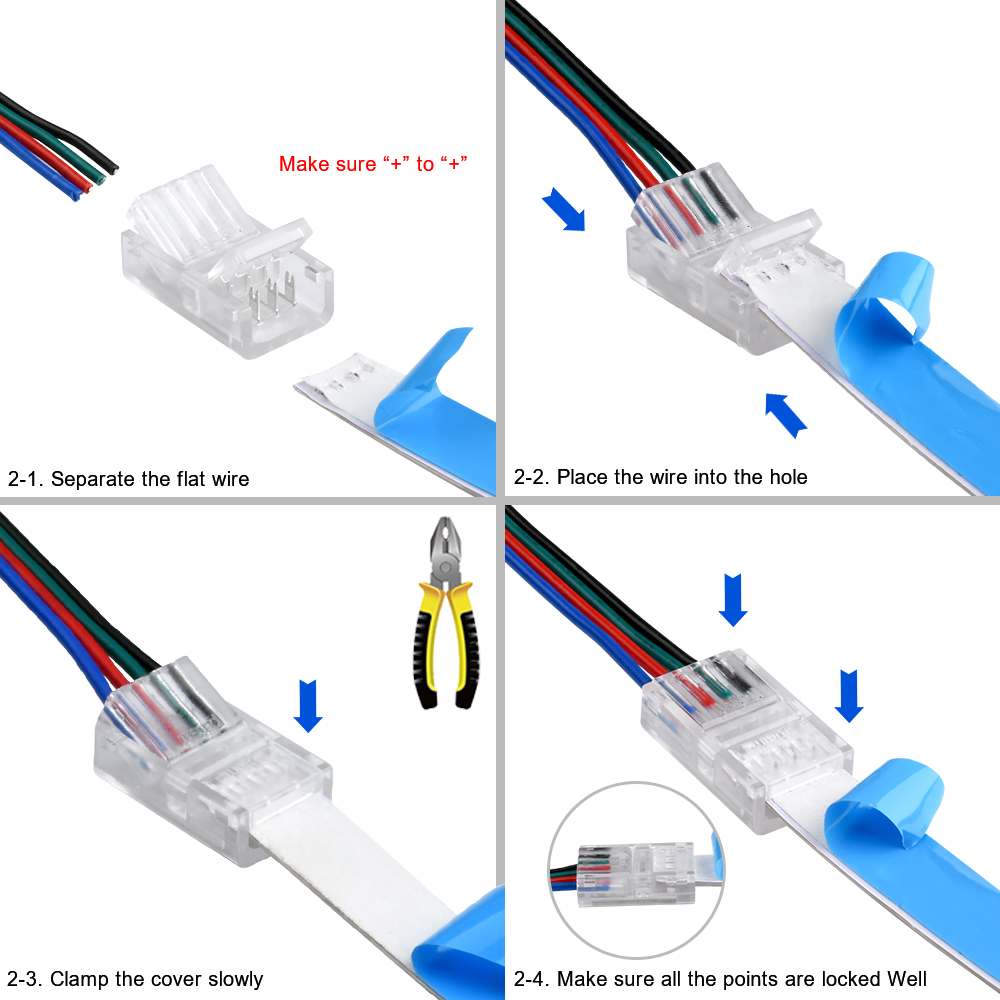

��. When connecting, please ensure that the back of the LED strip faces the cover of the connector
��. 50pcs/set options are fixing clips for LED strip (used to fix LED strip to wood or elsewhere), not a LED strip connector.
��. This connector is only suitable for 10mm 4pin RGB LED strip
��. This connector can only be used for IP20 non-waterproof LED strip
RGB LED Strip Connector for 10mm 4pin IP20 IP65 5050 2835 SMD RGB Tape Lights Wire Connectors L Shape Fixing Clips Clamp
1. For the fixed clamps, please note choose the correct version.

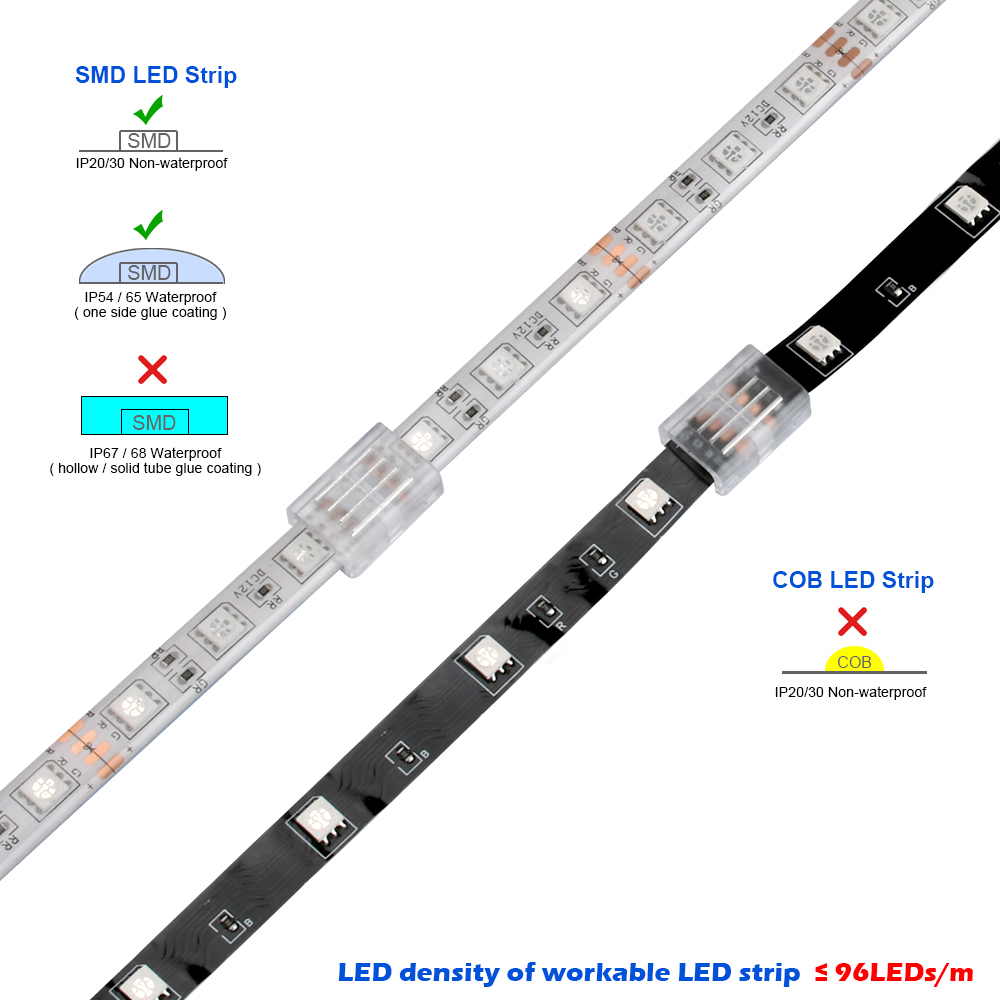

2. LED density of workable LED strip: less than 96LEDs/m

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Spannung

36 v

Ist drahtlose Funktionalität enthalten?

Nein

Ursprung

CN (Herkunft)

Ist eine Batterie im Lieferumfang enthalten?

Nein

Hochbetriebenes Chemikalienunternehmen

Keine

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Modellnummer

V14A0011

Zertifizierung

CE

Zertifizierung

FCC

Zertifizierung

RoHS-Konformität

Choice

yes

semi_Choice

yes
