ESP32-S3-DevKitC-1 Entwicklungsboard, On-Board ESP32-S3-WROOM-1/1U/2 Modul Espressif Original Original

Produktbeschreibung

User Guide：
The older version: ESP32-S3-DevKitC-1
This user guide will help you get started with ESP32-S3-DevKitC-1 and will also provide more in-depth information.
The ESP32-S3-DevKitC-1 is an entry-level development board equipped with ESP32-S3-WROOM-1, ESP32-S3-WROOM-1U, or ESP32-S3-WROOM-2, a general-purpose Wi-Fi + Bluetooth® Low Energy MCU module that integrates complete Wi-Fi and Bluetooth Low Energy functions.
Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S3-DevKitC-1 on a breadboard.
The document consists of the following major sections
Getting started: Overview of the board and hardware/software setup instructions to get started.
Hardware Reference: More detailed information about the board's hardware.
Hardware Revision Details: Revision history, known issues, and links to user guides for previous versions (if any) of the board.
Related Documents: Links to related documentation.
Getting Started
This section provides a brief introduction of ESP32-S3-DevKitC-1, instructions on how to do the initial hardware setup and how to flash firmware onto it.

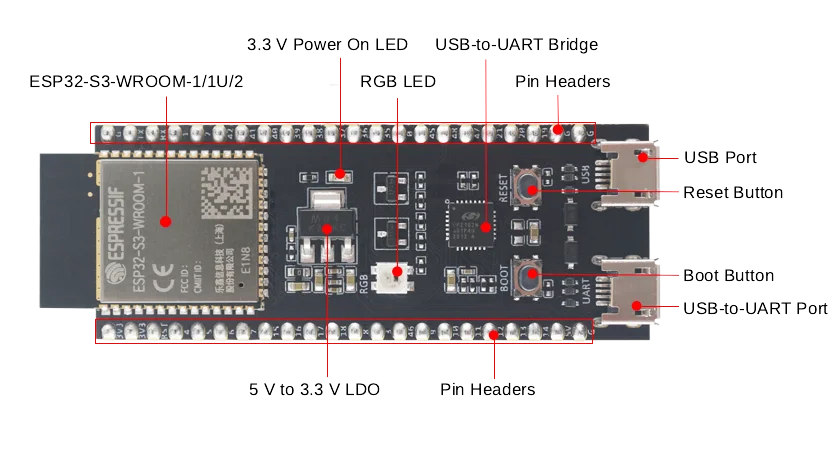

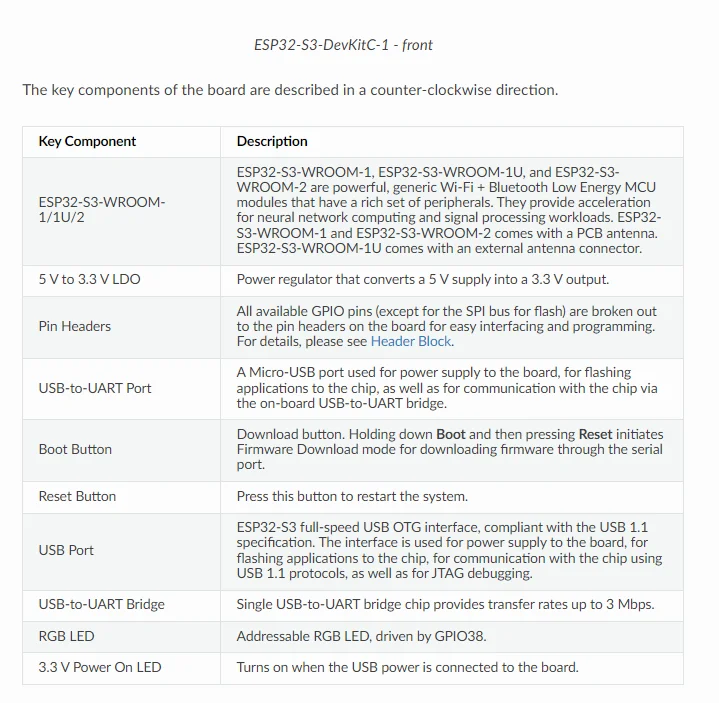

Description of Components
Retail Orders
If you order a few samples, each board comes in an individual package in either antistatic bag or any packaging depending on your retailer.
Wholesale Orders
If you order in bulk, the boards come in large cardboard boxes.
Hardware Reference

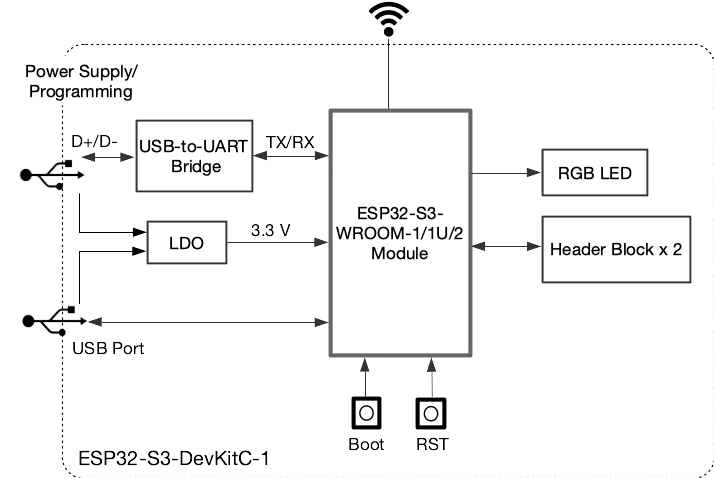

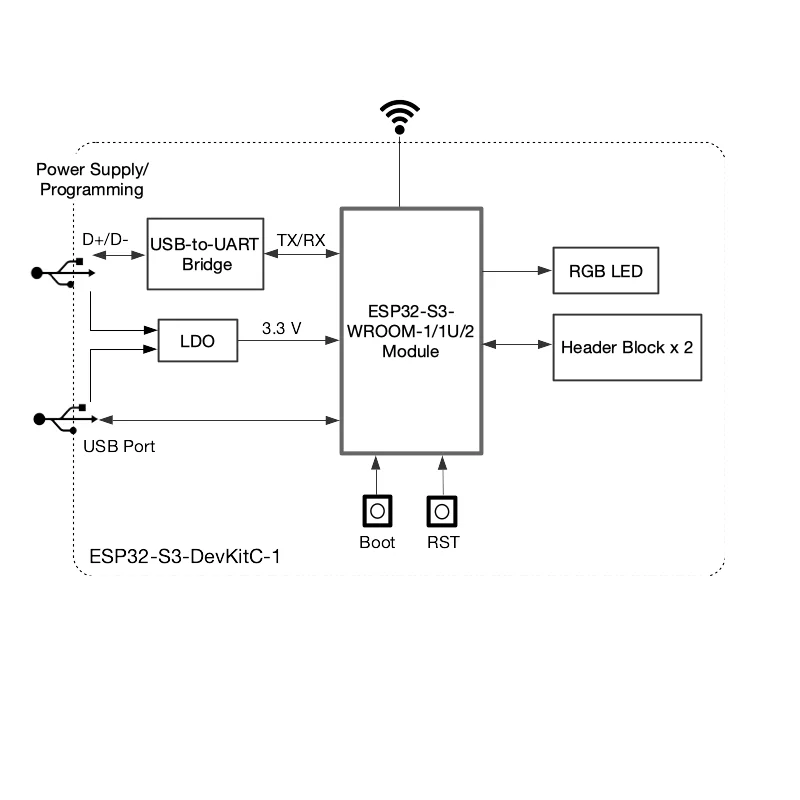

Block Diagram
The block diagram below shows the components of ESP32-S3-DevKitC-1 and their interconnections.

Produktdetails in Bildern

Produkteigenschaften

Markenname

W

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul
