ESP32 C3 Entwicklungsboard ESP32 C3 CORE Board mit integrierter 2,4G-Antenne 32Pin IDF WiFi + Bluetooth CH343P für Microprython

Produktbeschreibung

ESP32C3-CORE Development Board
pay attention
The classic model (version with TTL serial port to USB) must install the CH343 driver to download the firmware normally. The default CDC driver can only print the log, but the download will fail if the speed is too slow. drive portal
The new model (USB direct connection) can be burned directly without installing the driver. You can use Luatools to burn normally, but cannot use LuatIDE. There is no difference except that the firmware with the word USB needs to be selected when burning.
1. Product description
The CORE ESP32 core board is a core board designed based on Espressif ESP32-C3. The size is only 21mm*51mm. The edge of the board is designed with stamp holes, which is convenient for developers to use in different scenarios. The core board supports UART, GPIO, SPI, I2C, ADC, PWM and other interfaces, which can be selected according to actual needs.
2. Hardware resources
Dimensions length and width 21mm*51mm
1 channel SPI FLASH, onboard 4MB, support up to 16MB
2-way UART interface, UART0~UART1, among which the download port is UART0
6-channel 12-bit ADC, maximum sampling rate 100KSPS
1 low-speed SPI interface, support master mode
1 channel IIC controller
4-way PWM interface
15 external GPIO pins, which can be reused
2 way SMD LED indicator
1 channel reset button + 1 channel BOOT button
1-way USB to TTL download debugging port
2.4G PCB Onboard Antenna

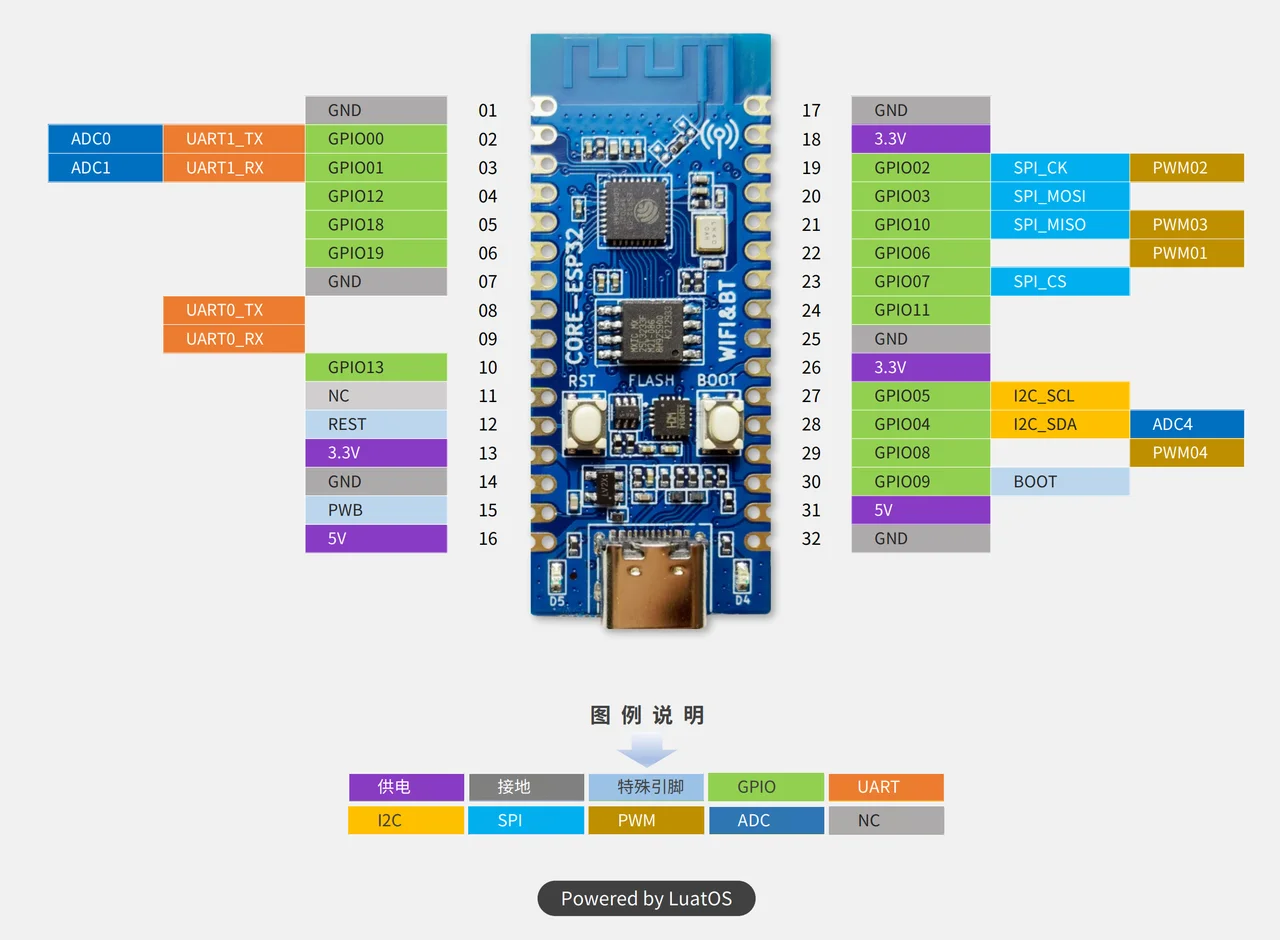

Produktdetails in Bildern

Produkteigenschaften

Markenname

Estardyn

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

5V

Verlustleistung

1

ist kundenspezifisch

Ja

Betriebstemperatur

45-+85

Anwendung

Computer

Paket

SMD

Choice

yes

semi_Choice

yes
