10 Stück/1 Stück Rd-03E 24G Präzisions-Entfernungsmessung und Positionierung/Gesten-Erkennung Radar-Sensor-Modul 24GHZ für menschliche Körperbewegungen

Produktbeschreibung

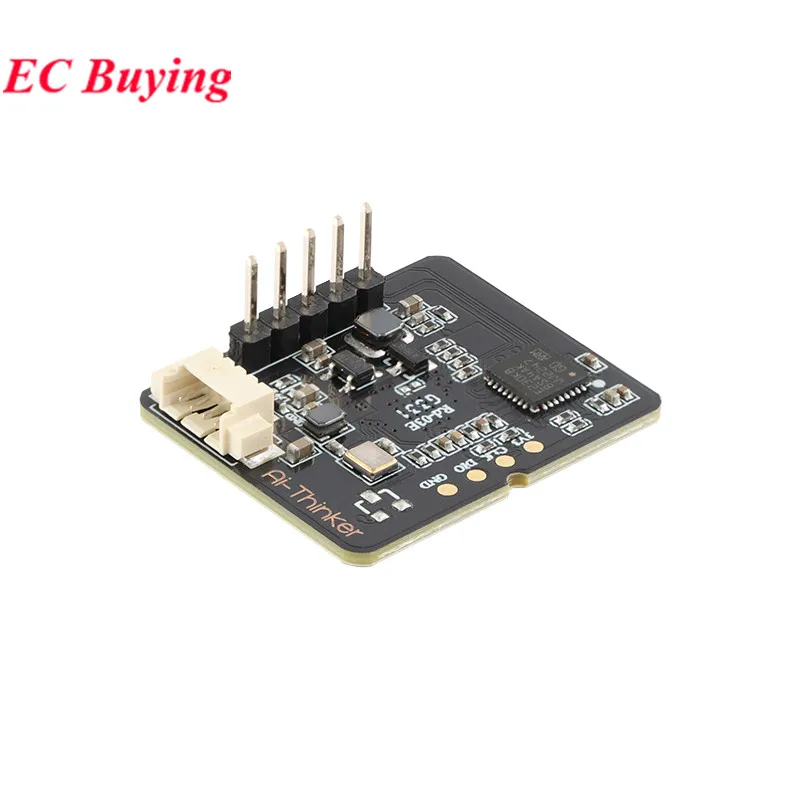

Rd-03E is a radar module equipped with Silicon Microelectronics' S3KM111L chip. The S3KM111L is an integrated microcontroller millimeter wave sensor SoC based on FMCW radar transceiver technology that operates in the 24 GHz K-band with a modulation bandwidth of up to 1 GHz per single frequency scan. This module uses the FMCW waveform and S3 series chip's proprietary advanced signal processing technology, combined with the MCU's proprietary radar signal processing and built-in intelligent presence sensing algorithm, to achieve accurate human body sensing ranging and gesture recognition. Developers can display distance information and gesture information in real time through the host computer tool.
The Rd-03E module can detect and identify moving and micro-moving human bodies, and report real-time distances. It can detect targets and gestures in designated areas and report results in real time. It is widely used in various AloT scenarios. This module has the characteristics of strong real-time performance, high ranging accuracy, large ranging range, and flexible configuration of algorithm parameters.
Rd-03E gesture recognition firmware mainly refers to recognizing the up and down movements of hands, and is mainly used in scenarios such as opening the lid/opening the toilet seat of smart toilets. It doesn't mean recognizing gestures such as "OK", "Yeah" and "Good".
Notice
1. The positive and negative directions are azimuth angles, and the up and down directions are pitch angles. 2. Accurate ranging detection range azimuth angle ±20°, pitch angle ±45° 3. The angular range of moving human body recognition is direction angle ±20°, pitch angle ±45°, and detection range is 0.3m~6m. 4. The angular range of micro-motion human body detection is direction angle ±20°, pitch angle ±45°, and the detection range is 0.3m~3.5m. 5. The motion recognition detection range has a direction angle of ±20°, a pitch angle of ±40°, and a detection distance range of 0.3~2.2m in a sector area. 6. Gesture recognition and micro-motion body examination range direction angle ±30°, pitch angle ±40°, detection distance range 0.5~1m sector area

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

3V-3.6V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

Normal

Anwendung

Computer

Paket

Module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32

Rd-03E 24GHZ Radar Sensor S3KM111L FMCW

Human Body Movement Precision Ranging Positioning Gesture Recognition Radar Sensor
