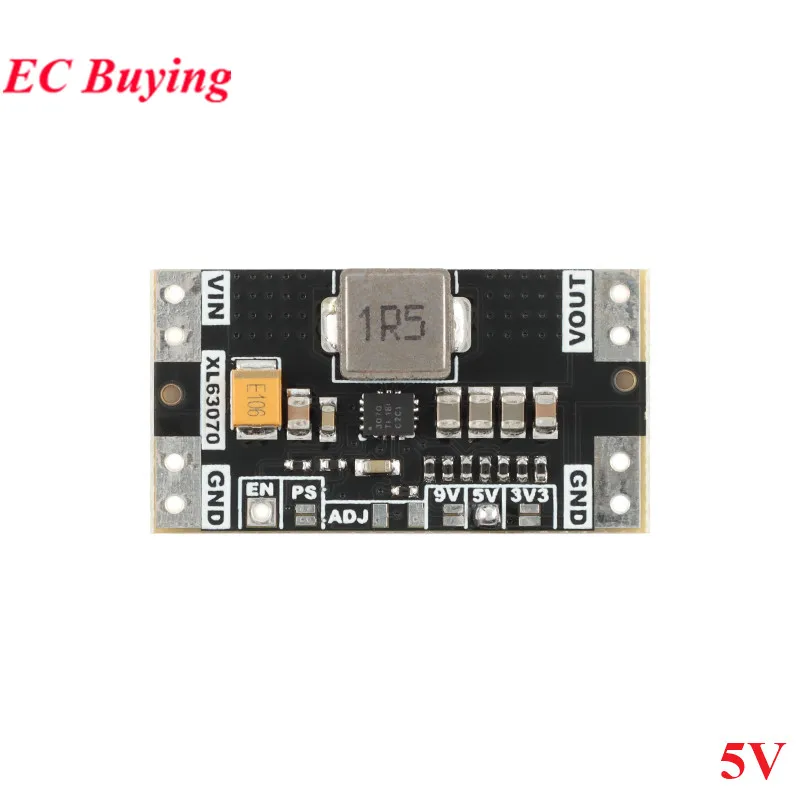

20 stücke/1 stück XL63070 TPS63070 DC Automatische Step Up Down Power Boost Buck Modul 3,3 V 5 V 9 V Niedrige Welligkeit Lithium Spannung Stabilisierung

Produktbeschreibung

Module type: DC automatic voltage rise and fall power supply
Starting voltage: 2.8V (After starting, the module can output positive E normally within an input voltage of 2V-9V)
Input voltage: 2V -16V
Output voltage: 2.5V -9V
Output current: 2A (MAX). The output MAX current at different voltages can refer to "Table 1"
Working mode: PWM/PFM
Output ripple: 10mV (9V), 8mV (5V), 8mV (3 3V)
(Note that the ripple data above is for reference only and is not included in the sample's no-load test.)
There may be slight differences between the same chips, and the carrier ripple can refer to "Table 1"
Adjustment method: Jumper pad selection
VIN
Power input positive pole (2V-16V)
GND
Power input/output negative pole
VOUT
Power output positive pole
EN
Enable control (default enable, pin down is disabled)
PS
Mode configuration, default PWM mode, short circuiting pads in PFM mode

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

3.3V 5V 9V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32

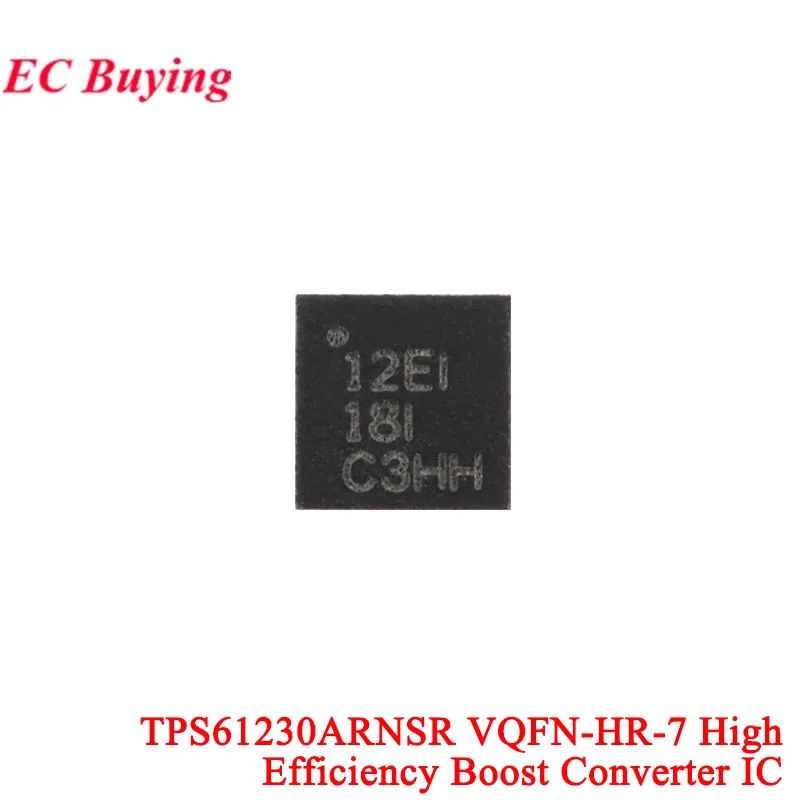

TPS61230 TPS61230ARNSR VQFN-HR-7
