Radiolink 8 Kanäle Mini Empfänger R8XM 2,4 GHz Integrierte Telemetrie Fahrzeug Spannung 4000 Meter Control & Telemetrie Entfernung

Produktbeschreibung

Radiolink8 Channels Mini ReceiverR8XM 2.4GHz Integrated Telemetry Vehicle Voltage 4000 Meters Control & Telemetry Distance in Air for Radiolink Transmitter RC6GS RC4GS T8FB T8S
R8XM Specifications
Channel:8

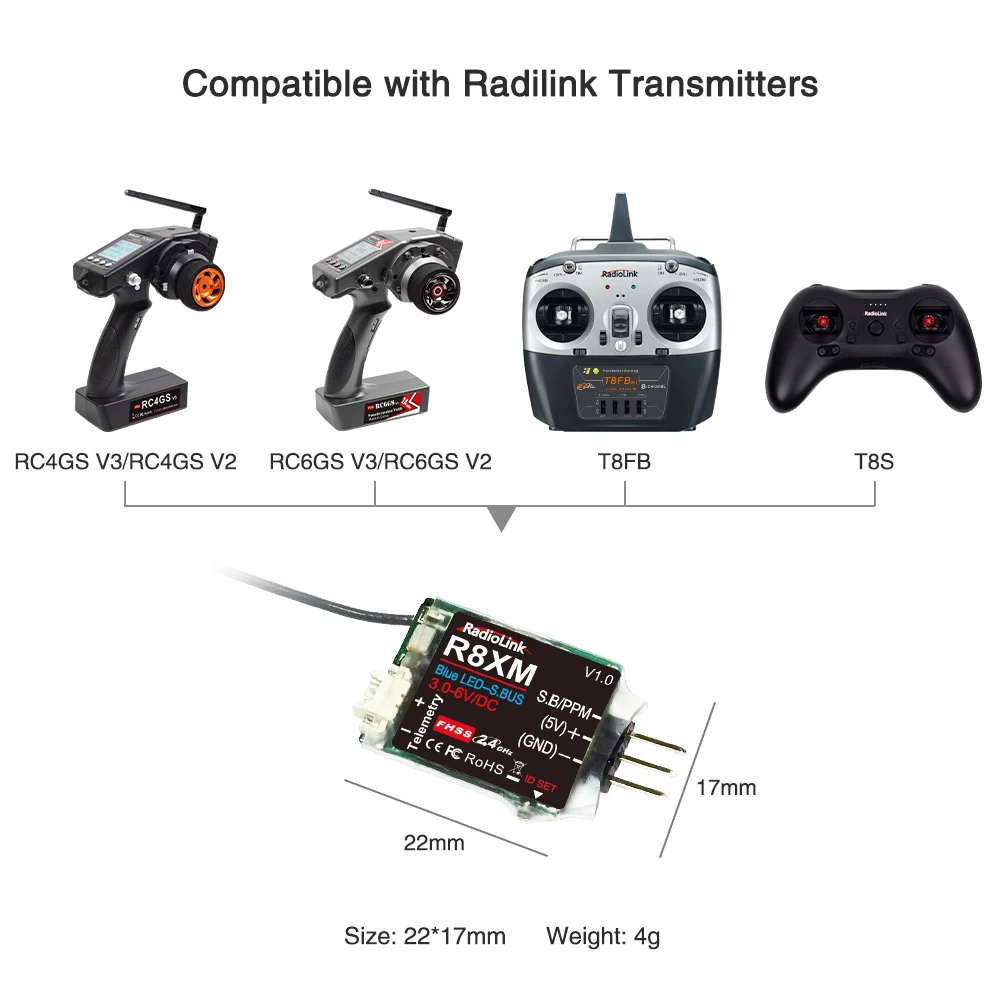

Size: 22*17mm
Weight: 4g
Signal Output: SBUS/PPM
Operating Voltage: 3-6V DC
Model Telemetry Voltage: 2S-6S LiPo battery
Control Distance: 4000 meters (2.49Miles) in air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Telemetry Distance:The same with control distance
Adaptable Models: Racing Drone/Rotary Wing/ Fixed Wing/ Glider/ Multicopter/ Car/ Boat/ Robot (must work with flight controller).
Output Frequency: 2.4GHz ISM band（2400MHz~2483.5MHz）
Spread Spectrum: FHSS, 67 channels pseudo-random frequency hopping
R8XM Features
【Excellent Anti-interference】: With pseudo random FHSS algorithm, R8XM has excellent anti-interference ability, highly constant, and stable transmission signal present on all 8 channels.
【Long Range Control】: The maximum tested control distance up to 4000 meters in the air in an unobstructed area free of interference.

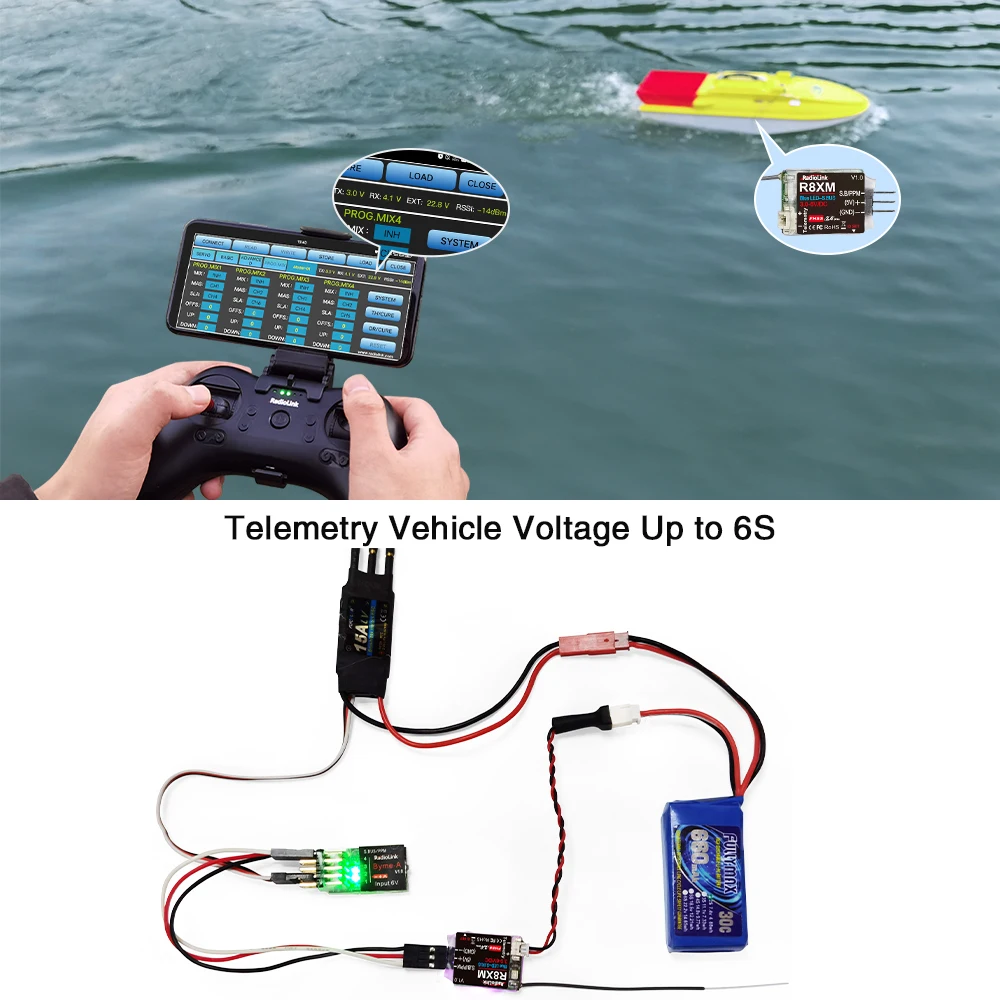

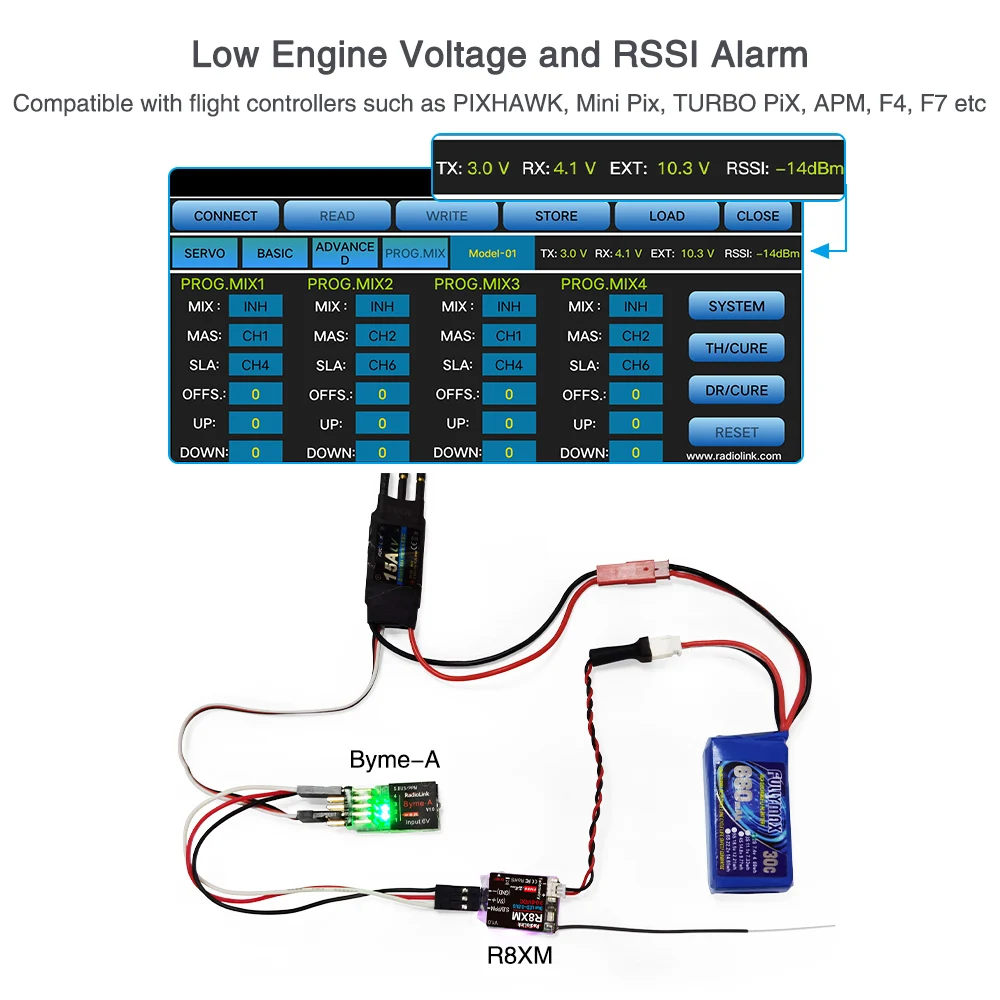

【Real-time Telemetry】:Support telemetry real-time vital information like vehicle's battery voltage(2S-6S LiPo battery), RSSI signal and receiver voltage to the radio screen, avoiding the battery over-discharge and damage.

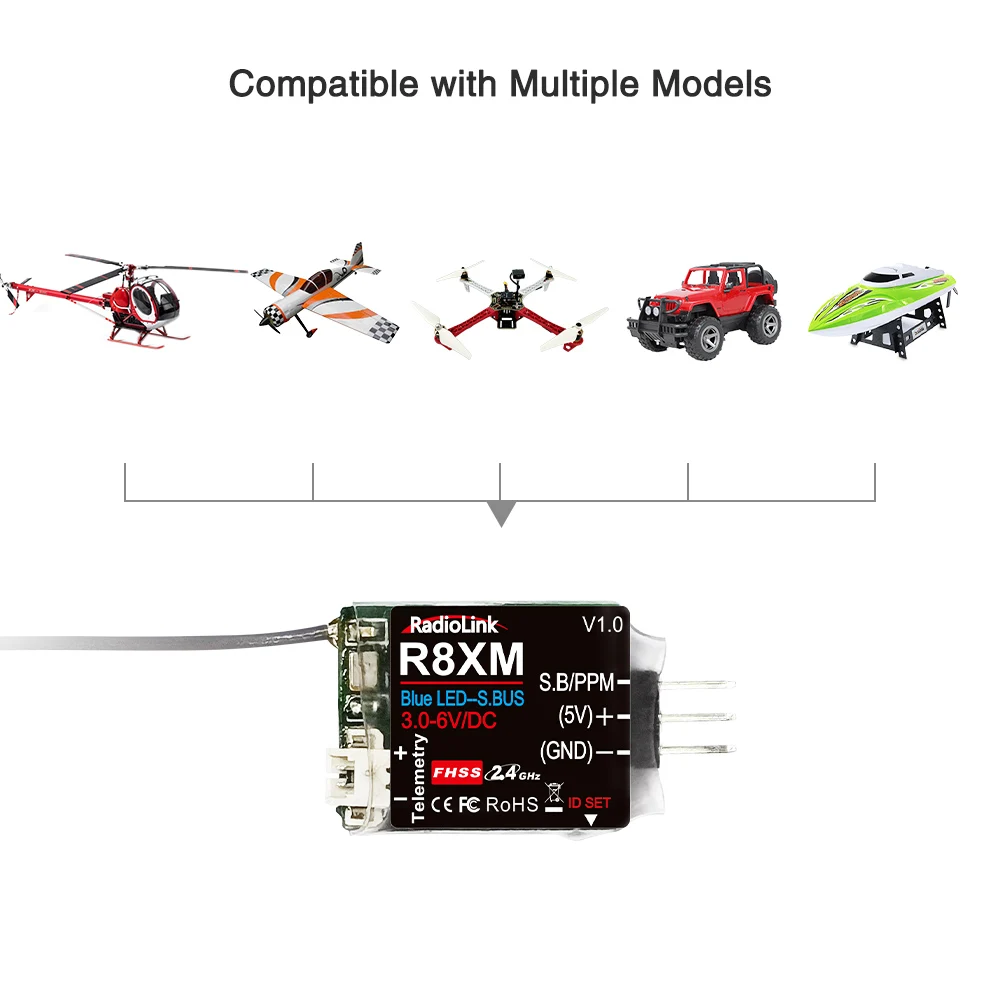

【Compatible with Multiple Models】: The mini size and lightweight make it perfect for mini racing drone and glider. It’s also compatible with rotary wing, fixed wing, multi-rotor, car, boat and robot when working with flight controller.
【Work Well with FPV Device】: Compatible with flight controllers such as PIXHAWK, Mini Pix, TURBO PiX, APM, F4, F7 etc; Combined with the image transmission camera and FPV display screen/ FPV goggles, to realize long-distance interesting driving.
Packaging List

Produktdetails in Bildern

Produkteigenschaften

Markenname

RadioLink

Hochbetriebenes Chemikalienunternehmen

Keine

Ist elektrisch

Keine Batterie

Handelt es sich um eine Batterie/Netzteil?

n

Ist es ein Ladegerät/Adapter?

n

Ursprung

CN (Herkunft)

Sind Batterien im Lieferumfang enthalten?

Nein

Material

Kunststoff

Plastikart

PC (Kühlkörper)

Empfohlenes Alter

14+ Jahre

RC-Teile und Zubehör

EMPFÄNGER

Größe

refer to the product details page

Für Fahrzeugtyp

Autos

Benutzen

Fahrzeuge und ferngesteuertes Spielzeug

Peripheriegeräte/Peripheriegeräte mit Fernbedienung

EMPFÄNGER

Werkzeugzubehör

Werkzeuge

Modellnummer

R8XM

Eigenschaften des Allradantriebs

MONTAGE
