DC 9V COB LED-Streifenlichtquelle Aluminiumplatte Kaltweiß 6500K 90x19mm 5W 500mA LED-Lampenperlen für DIY Innen-/Außenbeleuchtung

Produktbeschreibung

DC 9V COB LED Strip Light Source Aluminum Board Cold White 6500K 90x19mm 5W 500mA LED Lamp Beads for Diy Indoor/Outdoor Bulb
Main Features of Sumbulbs 9019 9V COB LED Lamp Beads

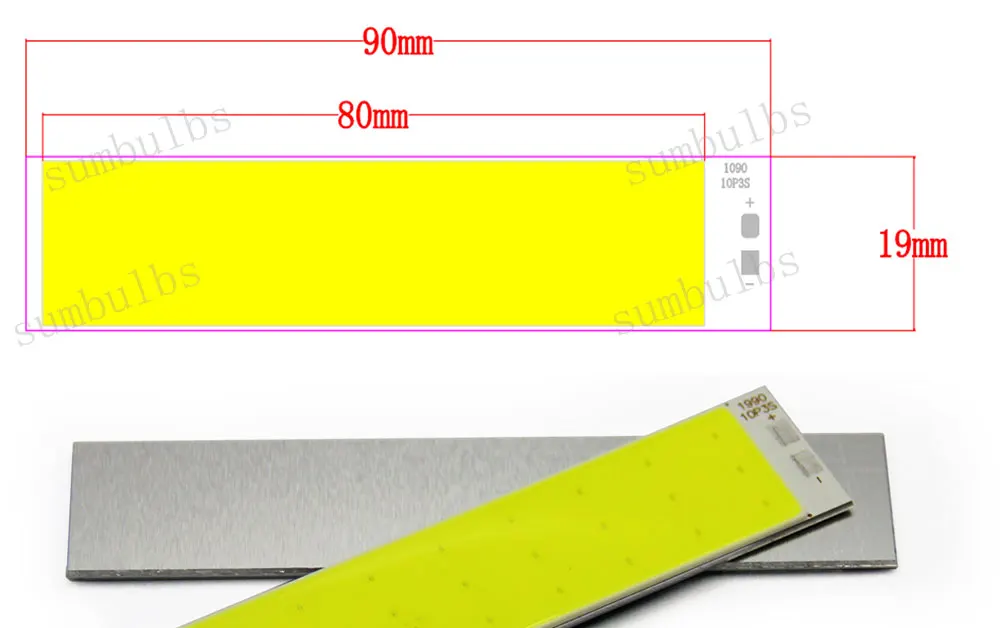

Board Size: 90x19mm
Emitting diameter: 80x18mm
Power: 5 Watt
Max Current: 600mA
Voltage: DC 9V
Emitting color: Cold White 6500K
Luminous efficacy: >100LM/W
Application: Car light, Truck light, Boat/Ship lamp, DIY LED lights...
What is LED COB?
COB (Chips on Board) is a new technology of LED packaging of LED light engine. Multi LED chips are packaged together as one light module. When it lights up, it looks like a lighting panel.
How COB LED light source works?
In COB lighting, single LED chips are placed directly on a circuit board (or substrate) which has thermal properties to disperse heat. Heat dissipation is a very important aspect of LED lighting since it can have a major impact on the life expectancy of the luminary. Therefore, COB lighting can have a higher LED chip density and achieve higher light level while maintaining or improving life expectancy.
Advantage of COB
COB lights are a more efficient form of LED lighting for general or automotive lighting applications because
The light has a more uniform appearance
Better life expectancy
achieve higher light level over a large area
COB is more stable and reliable than standard LED package

Produktdetails in Bildern

Produkteigenschaften

Markenname

sumbulbs

Hochbetriebenes Chemikalienunternehmen

Keine

Ist ein intelligentes Gerät

no

Stromquelle

Gleichstrom

Ursprung

CN (Herkunft)

Zertifizierung

ROHS

Zertifizierung

ce

Lichtstrom

249-2000

Spannung

11–50 V

Kontrollmethode

andere

Lichtstrom

2000 Lumen und mehr

Form

Bar

Durchschnittliche Lebensdauer (Std.)

50,000

Länge

others

LED-Glühbirnentyp

Autolampe

Abstrahlwinkel( ° )

120 °

LED-Chip-Modell

3014

Zertifizierung

RoHS-Konformität

Zertifizierung

CE

Bereich

3-5 ㎡

Anlass

Garten

Basistyp

welding

leistungstoleranz

5%

Farbtemperatur

Kaltweiß (5500–7000 K)

Modellnummer

50-36Wx2

LED-Chip-Marke

Epistar

Artikeltyp

LED-Lampen

Garantie

3 jahre

Item name

9019 COB LED Lamp Beads

Size

90x19mm

Watt

5W

Lumens

500LM Above

Emitting Color

Cold White 6400K

Max Current

600mA

Warranty

3 years

OEM/ ODM

Available

Application

Car lights, Truck Light, Boat Lamp, Ship Lamp, DIY LED Lighting......

Notice

Please Add Heatsink
