Flexible Sammelschiene, verzinntes Kupfer, geflochtenes Armband, Sammelschiene M4, M6, M8, M10, Anschluss, Batterieband 35 mm2, 50 mm2, 75 mm2, für 140 A, 200 A, 400 A

Produktbeschreibung

Why the screw holes are circular instead of oval?
The oval holes easily leads to too little contact between the screw and the conductive band, which can easily lead to failures, especially for high-power batteries, which is very dangerous
And this conductive band is flexible, it is also easy to assembly

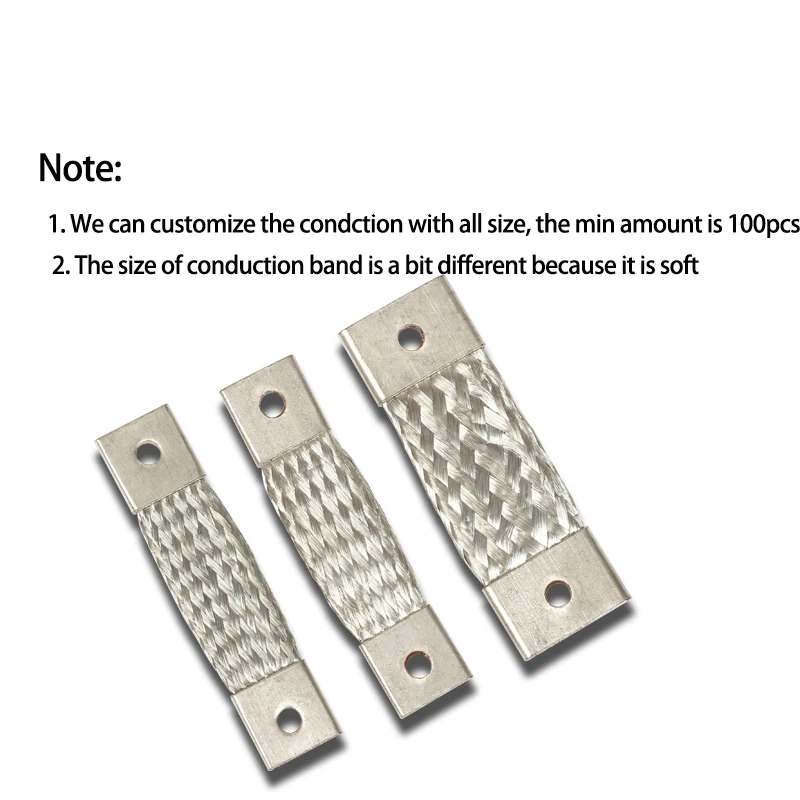

Notice
1. We can customize the conduction band with all size, the min amount is 100pcs
2. The size of conduction band may be 90~95mm, the distance between two holes may be 70~75mm, because the band is flexible, please make sure if it is suitable for your battery before purchasing
Product description
Rated current
35 mm2: 140A
50 mm2: 200A
75 mm2: 300A
35 mm2 Size: L90mm*W20mm*T4mm, hole distance: 70mm~75mm
50 mm2 Size: L90mm*W20mm*T6mm, hole distance: 70mm~75mm
75 mm2 Size: L90mm*W30mm*T5.5mm, hole distance: 70mm~75mm

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Spannung

Keine

Ist drahtlose Funktionalität enthalten?

Nein

Ursprung

CN (Herkunft)

Ist eine Batterie im Lieferumfang enthalten?

Nein

Hochbetriebenes Chemikalienunternehmen

Keine

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Zertifizierung

NONE
