FK743M1-IIT6 STM32H743IIT6 FK743M5 FK743M3 FK743M4 FK743M2 ARM STM32 IO Expansion Core System Learning Development Board SDRAM

Produktbeschreibung

1. The TypeC interface is directly connected to the USB pin of STM32, allowing for USB DFU download (only to on-chip flash), not serial download!!!
2. Communication between USB virtual serial port and computer serial port assistant can be achieved through TypeC (users need to write corresponding programs, which are included in the documentation)
3. The core board does not have a hardware circuit for converting USB to TTL serial port!! The USB DFU download and virtual serial port are both implemented through the USB port of STM32. The specific circuit can be viewed in the schematic diagram
Core Board Parameters
Main frequency 480MHz
On chip 2M Flash, 1M SRAM

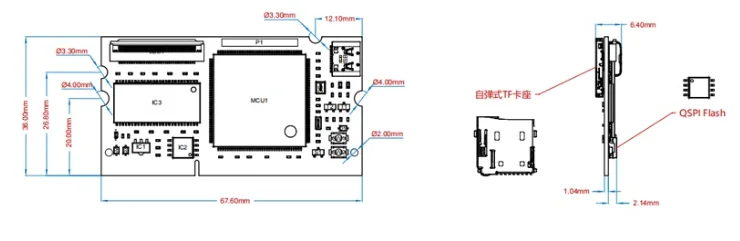

Expanded QSPI driver W25Q64
External expansion of 16 bit wide 32MB SDRAM
1 reset button
1 BOOT button
1 user LED
1 TypeC interface
1 TF card interface

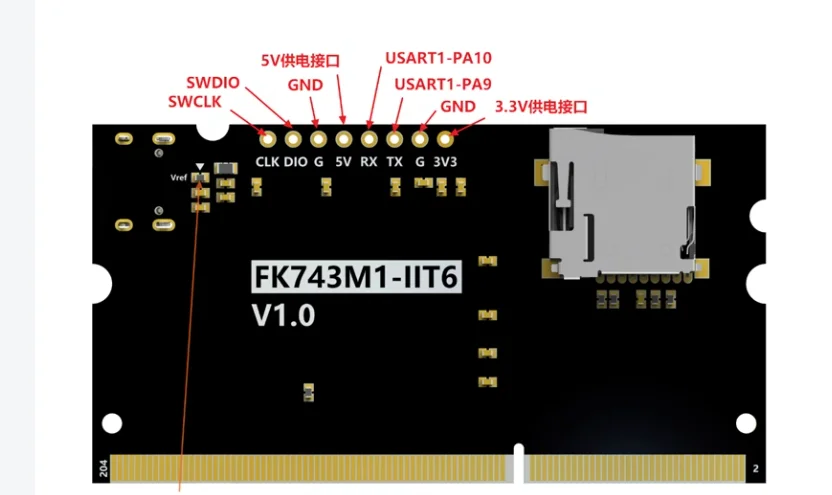

Reserved SWD and serial port
DDR3 gold finger leads out 71 I0 ports
Working environment temperature -40~85 ° C
743 operates at a frequency of 480M with high power consumption and an upper limit on junction temperature. If you need to work in a high-temperature environment, you need to lower the frequency. For specific power consumption and junction temperature data, please refer to the data manual

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

PCB Board DIY kit

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

nromal

Anwendung

Computer

Paket

module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32

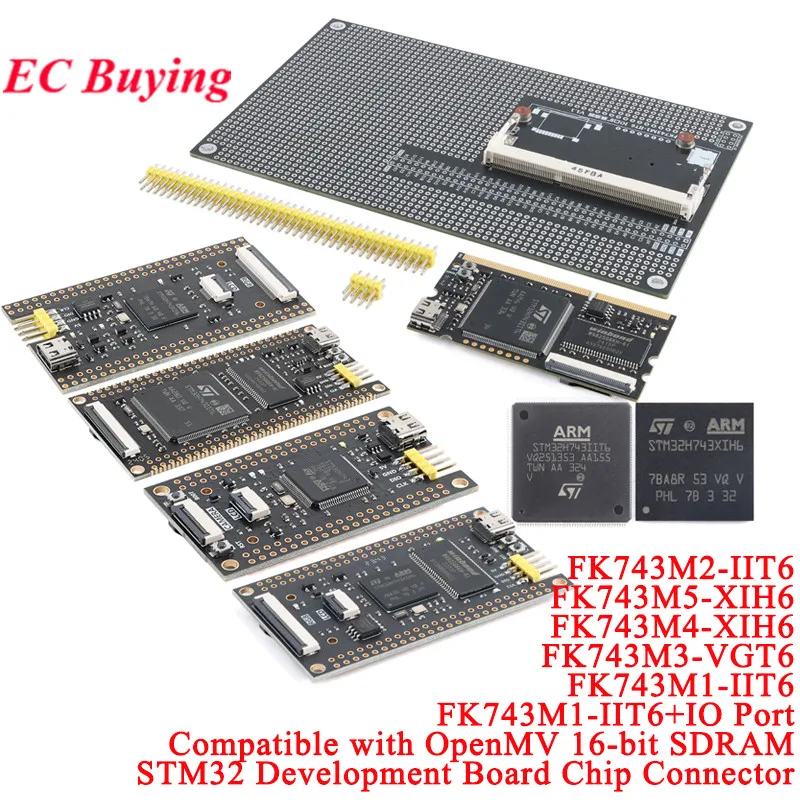

FK743M1-IIT6 STM32H743IIT6 STM32 Development Board

+ IO Expansion Core System Learning Board 480Mhz 2Mb Flash QSPI Drive W25Q64

STM32H743IIT6 STM32H743 STM32 FK743M1-IIT6

IO Expansion Core System Learning Development Board Module ARM 480Mhz 2M Flash 1M Sram

FK743M1-IIT6 STM32H743IIT6 STM32 Development Board

IO Expansion Core System Learning Board 480Mhz 2M Flash QSPI Drive W25Q64

FK743M4-XIH6 STM32H743XIH6

core board system board learning board STM32 development board compatible with OpenMV

FK743M2-IIT6 STM32H743IIT6

core board system board learning board STM32 development board

FK743M5-XIH6 STM32H743XIH6 16-bit SDRAM

core board system board learning board STM32 development board

FK743M3-VGT6 STM32H743VGT6

Core board System board Learning board STM32 ARM development board
