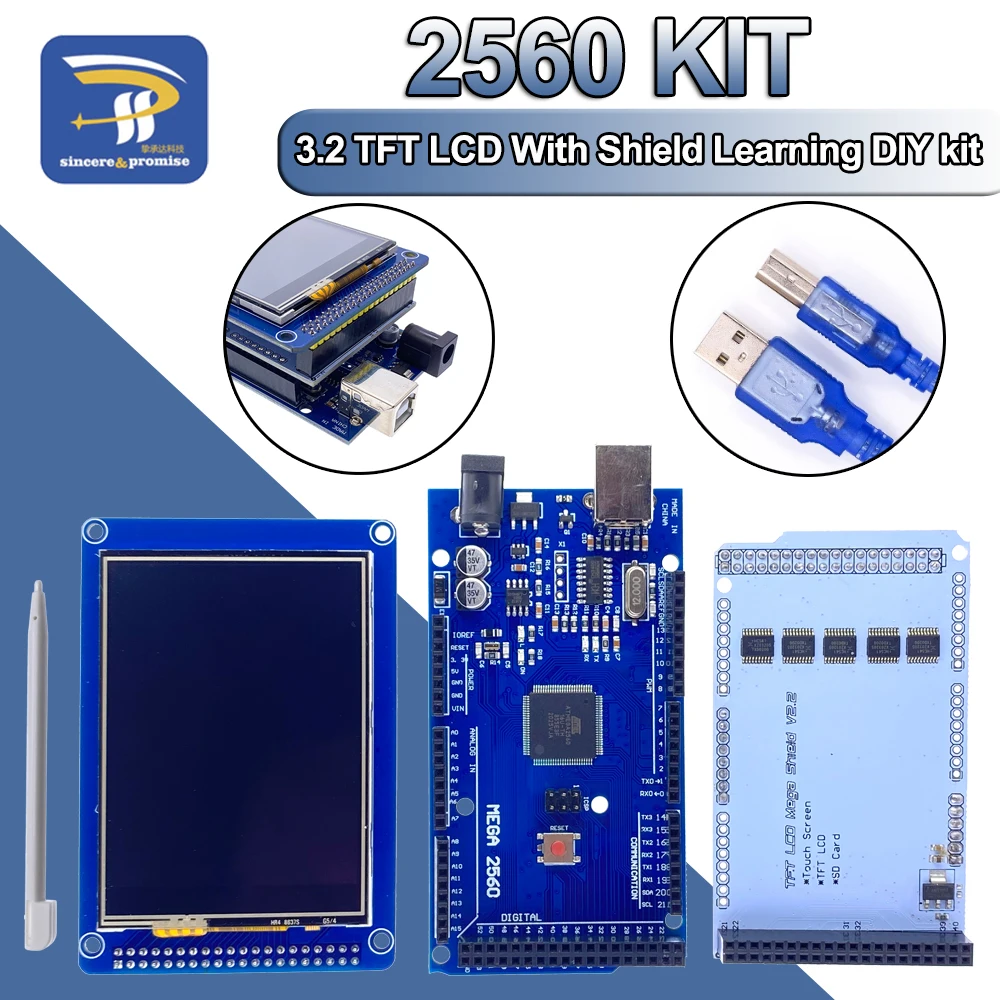

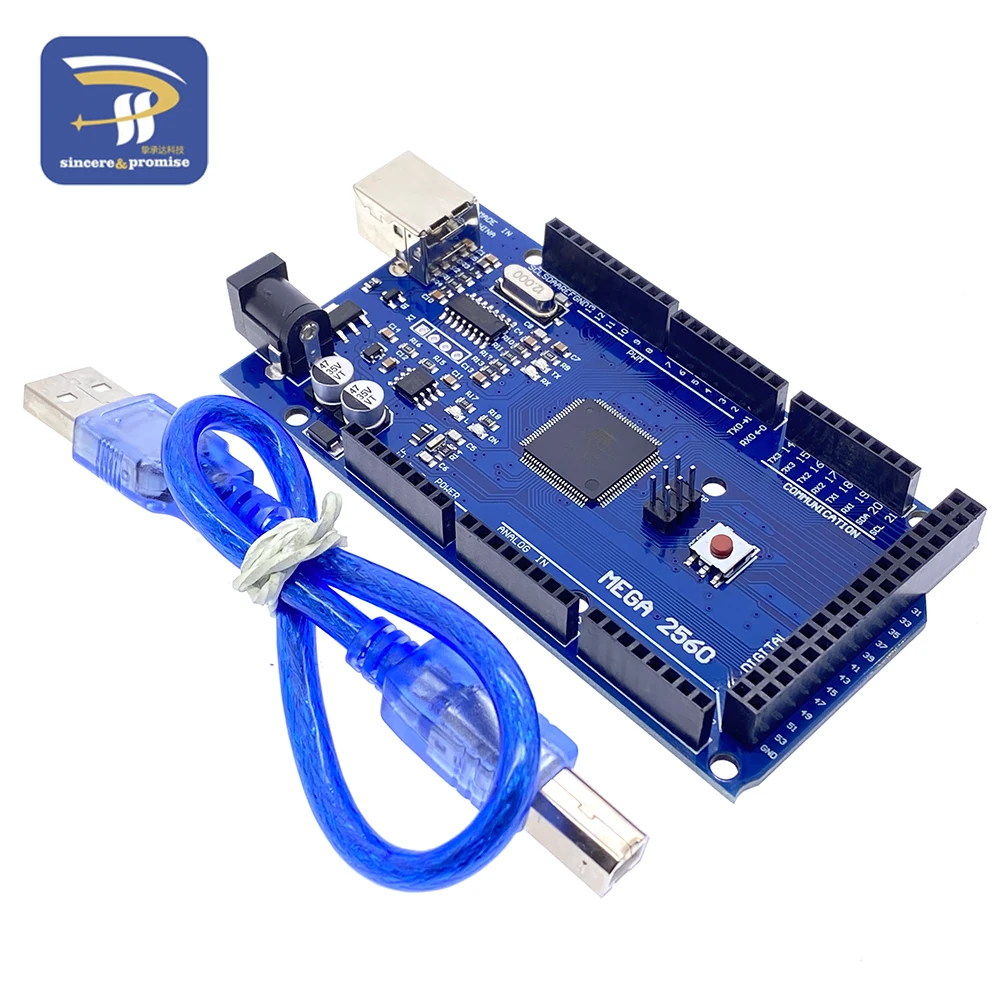

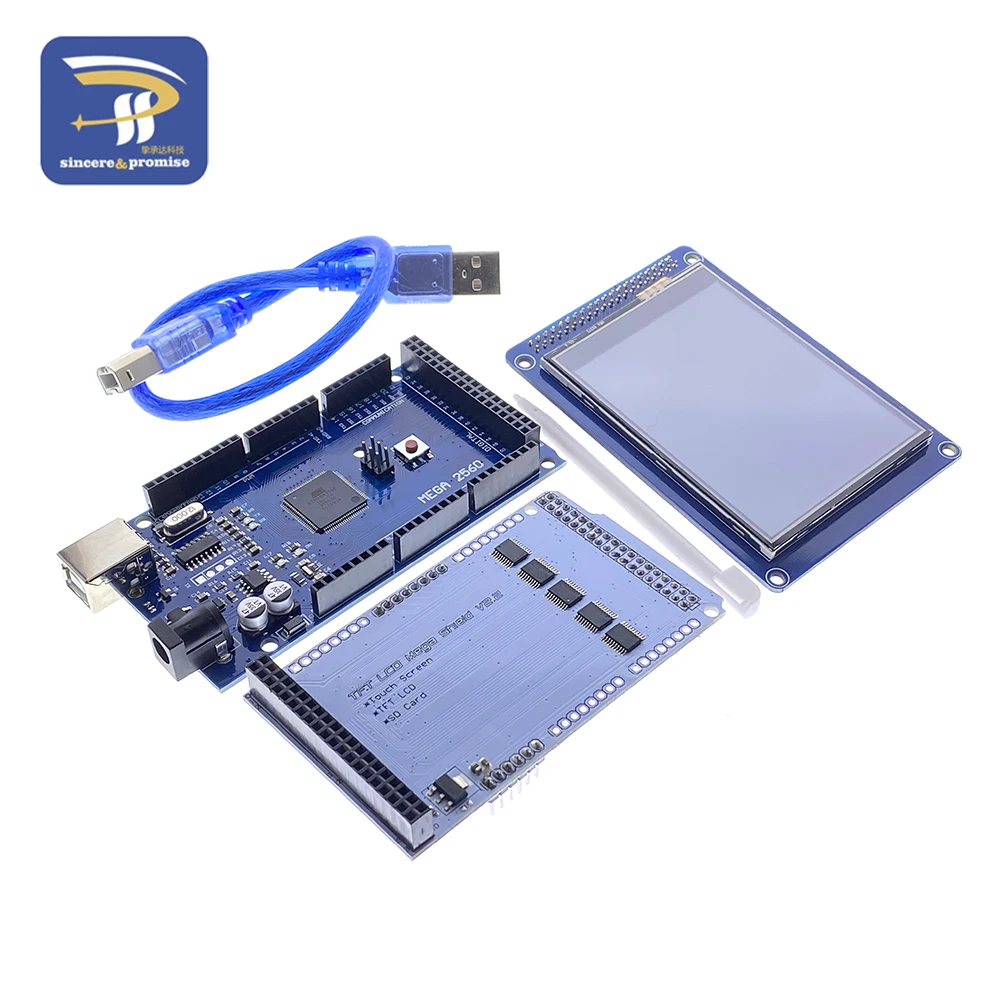

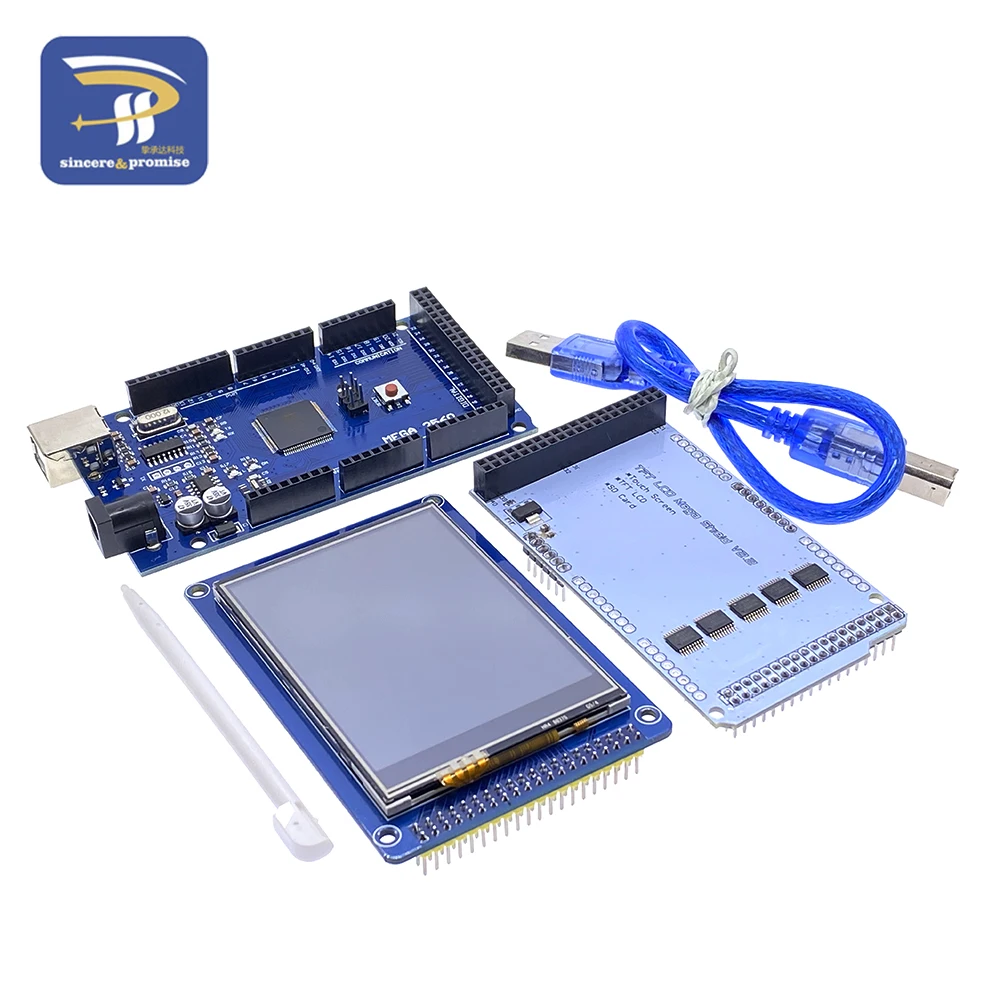

3.2 "TFT LCD Touch Farbe Bildschirm Modul + 3,2 Zoll Schild Adapter Board + Mega2560 Mega 2560 R3 CH340 mit USB für Arduino Kit

8,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 7–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

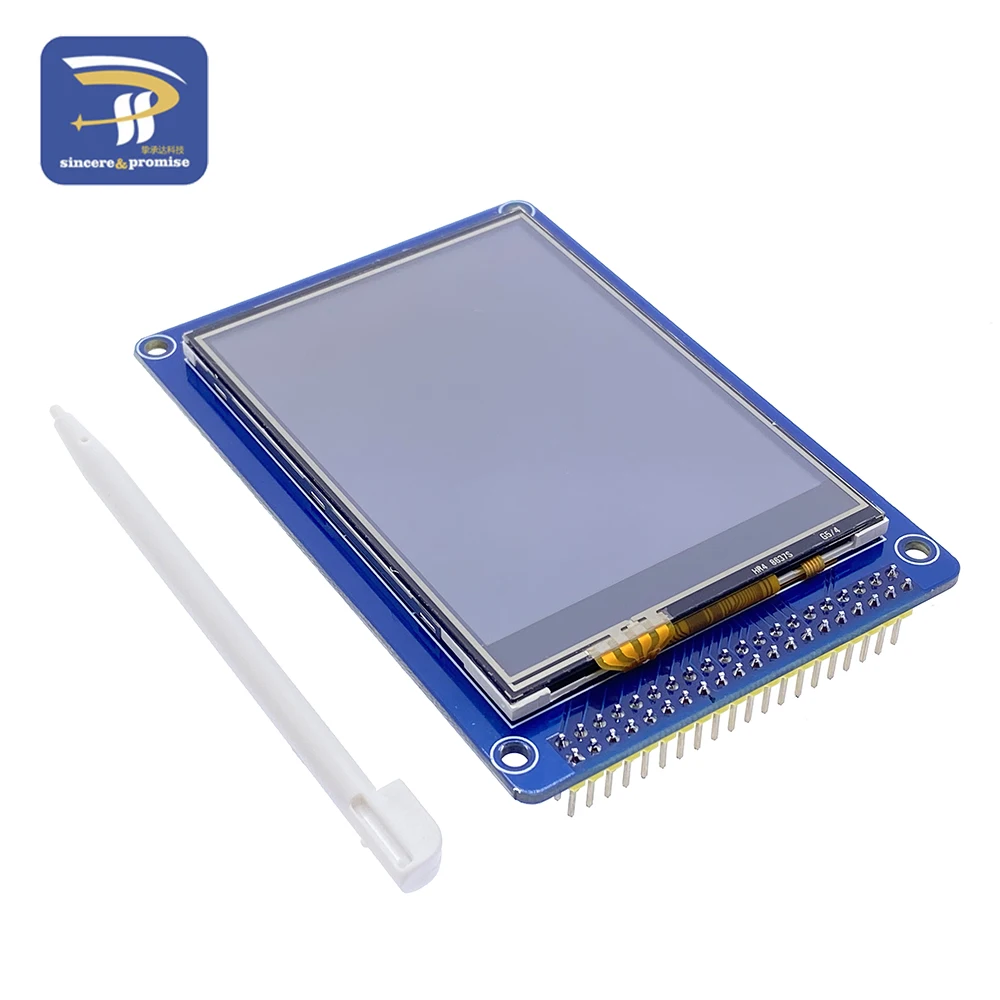

3.2 '' TFT LCD Display
3.2 inch, 240 * 320 resolution, with TFT touch screen
Display driver chip for the ILI9341, touch screen driver chip for the XPT2046
16bit parallel interface for display interface, support 6800 and 8080 bus interface, support STM32 FSMC bus interface, scraper fast
touch screen interface for the SPI interface, less data lines, the drive is simple
low voltage drop onboard low current LDO regulator, compatible with 5V and 3.3V power supply
Onboard PWM backlight control circuit, can support IO control and PWM dimming control

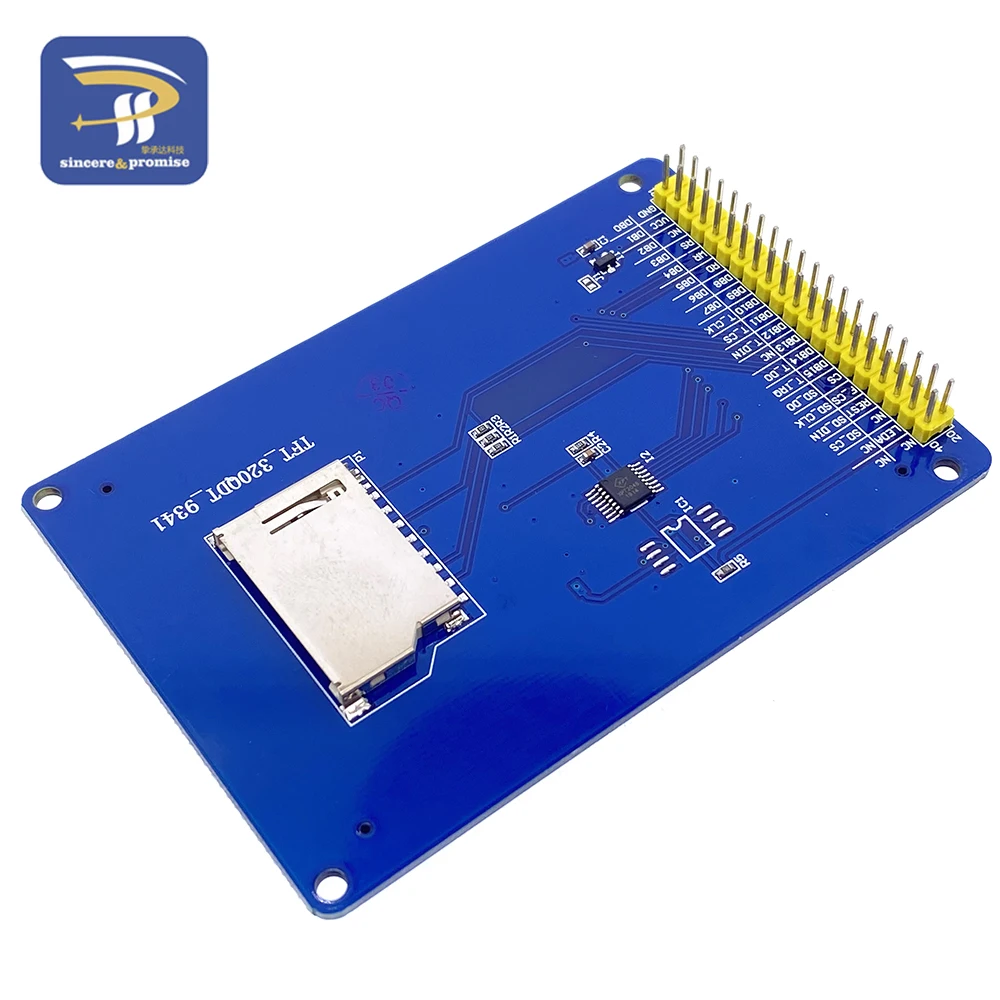

module with SD deck, do digital photo frame and other experiments
reserved SPI FLASH pad, you can expand the welding font chip
support horizontal screen display and vertical screen display, support screen segmentation display
support 262 million color RGB display, display good picture quality
screen controller comes with 172800 bytes of graphics display data storage area
interface compatible with positive point atomic series development board interface
machine chip production, hardware, stable and reliable

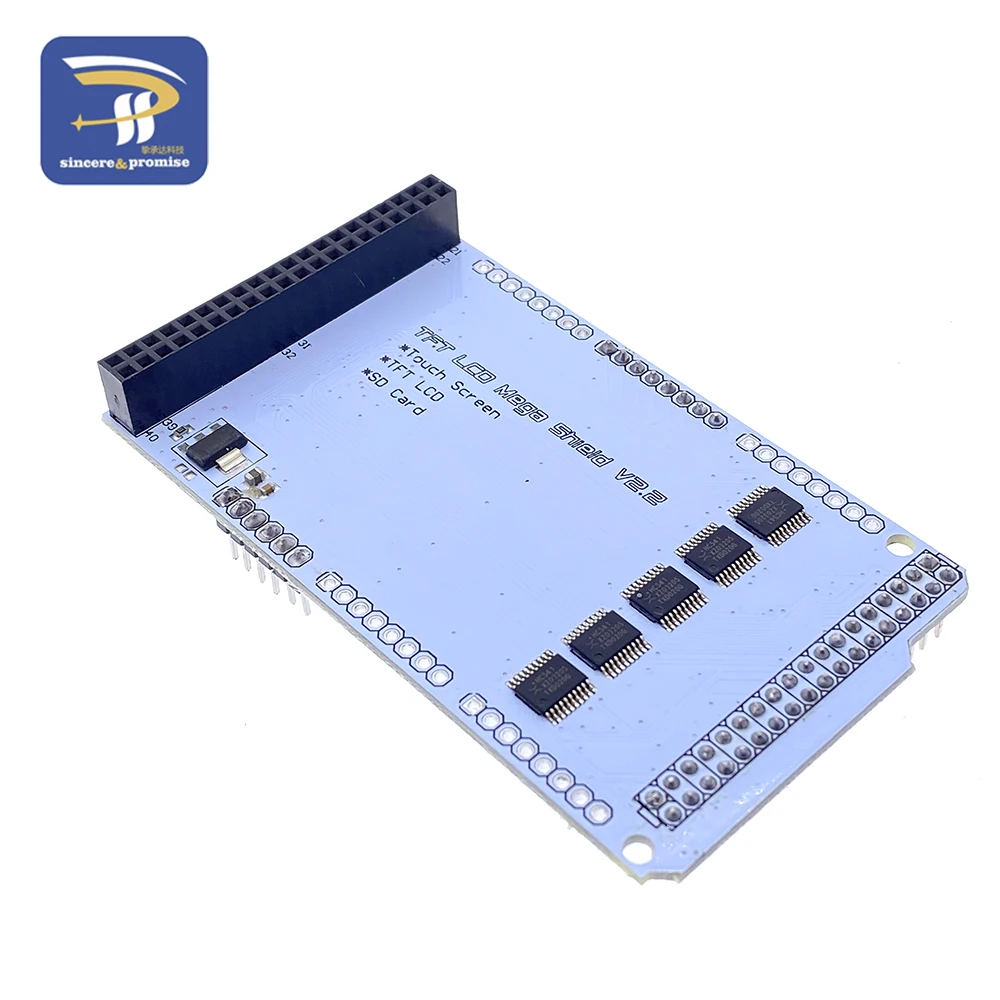

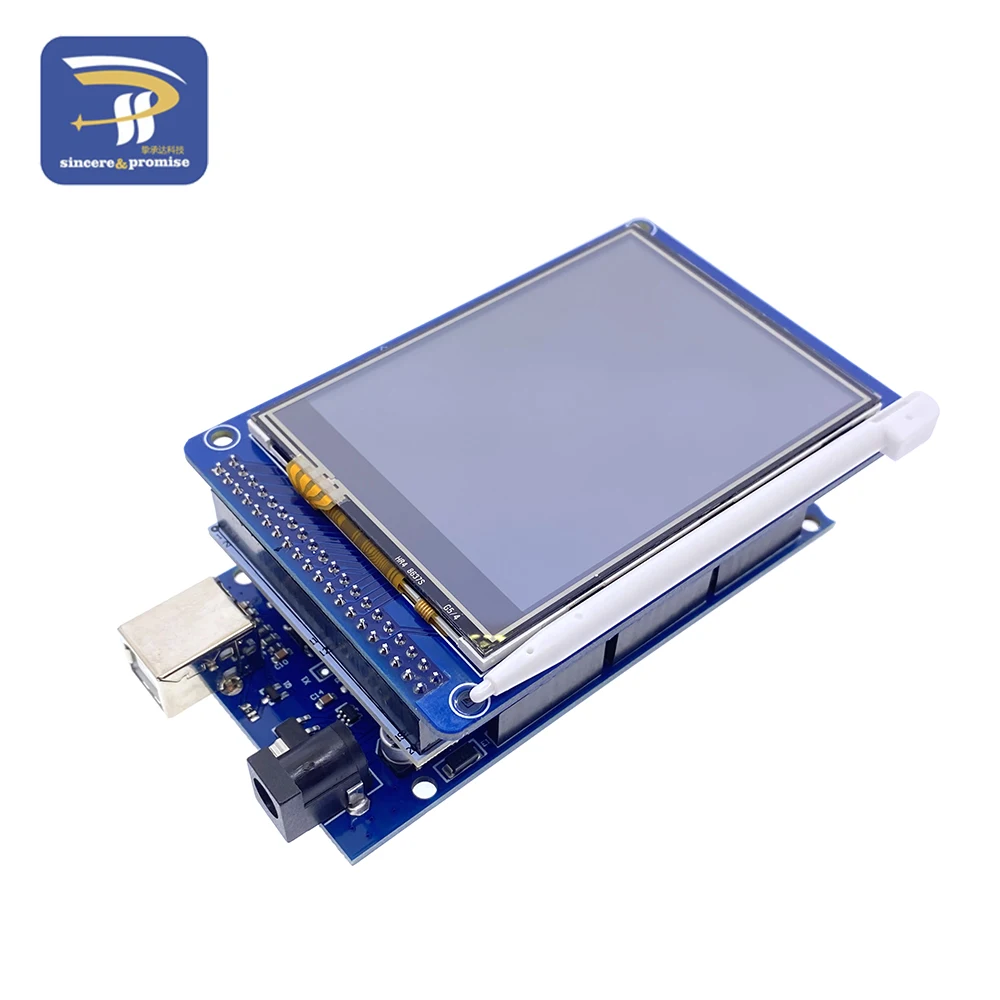

TFT LCD Mega Shield
Function Description
Because TFT01 LCD is working in 3.3V voltage, so can not be used directly on top of standard motherboards, so in order to make TFT01 LCD
Compatible for use on standard motherboard design section TFT Shield, can be directly plugged into the motherboard using TFT01 LCD
Modules.
TFT01 LCD
