Audio- und Videokabel

1080P60hz HDMI-kompatibler Audio-Extraktor Optischer Toslink SPDIF + 3,5 mm Audio-Embedder 1080P 3D-Anzug für Fire Stick Xbox Laptop

15,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 7–12 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Summary

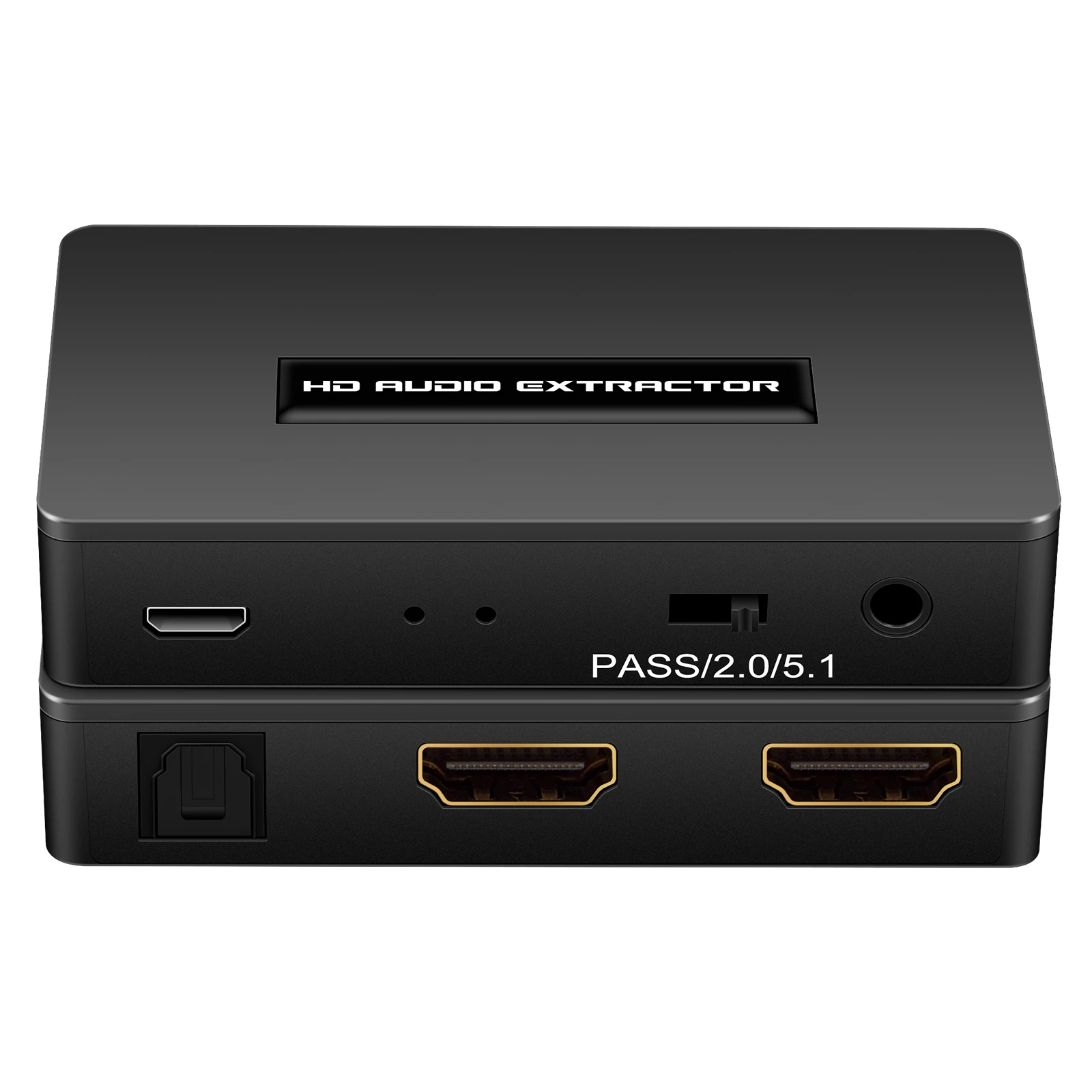

Product Name: High Performance Multifunctional HD Audio Extractor
Main function: Extract audio signals between HDMI compatible power amplifier systems to achieve high-quality audio effects.

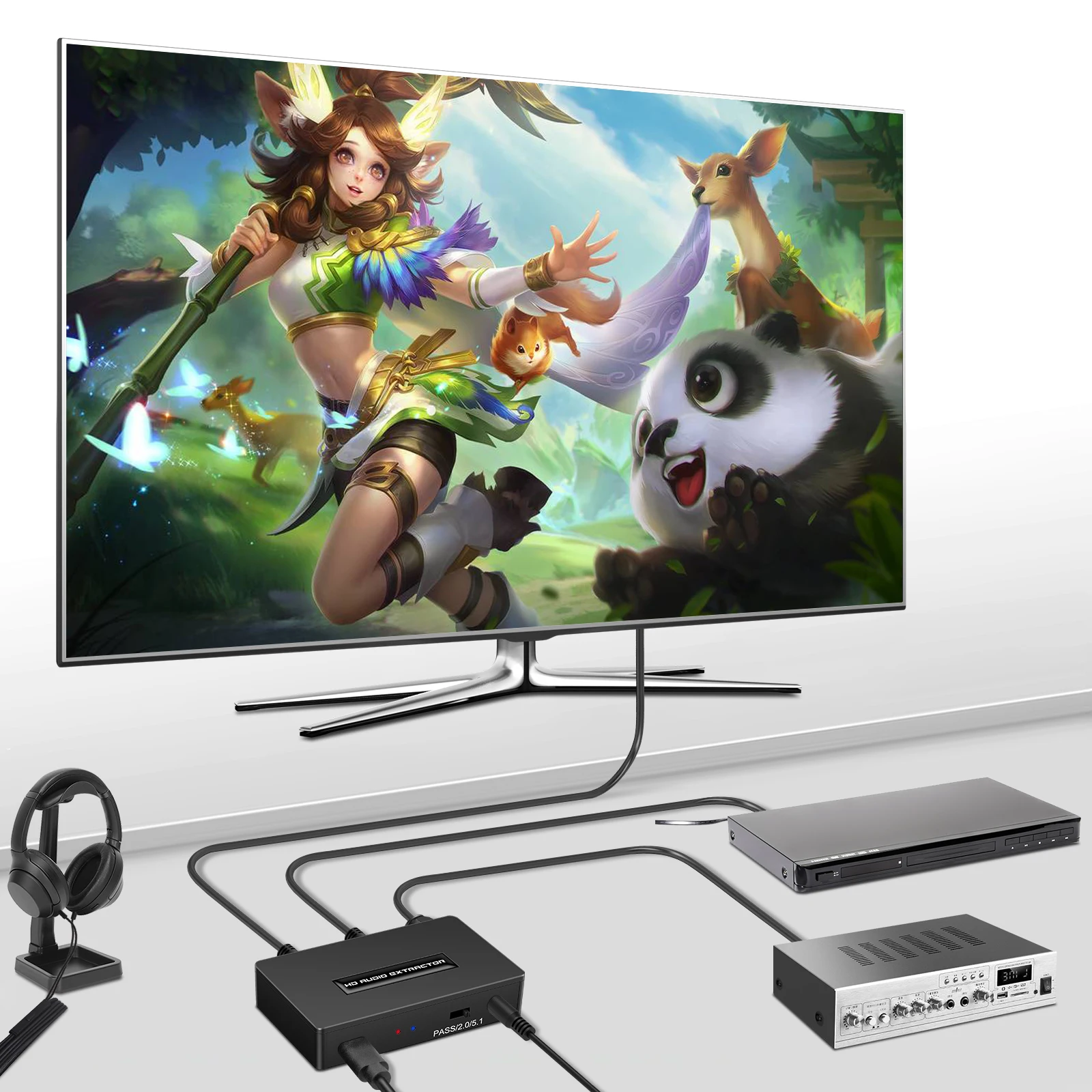

Applicable scenarios: Meet the needs of extracting HDTV images and HDMI source audio.
Function
Audio output conversion
Supports HDMI digital audio signal extraction and conversion to 3.5mm analog output and SPDIF output.
SPDIF output supports 2CH audio or 5.1CH audio (Dolby Digital 5.1CH and DTS 5.1CH, not Dolby Digital Plus).

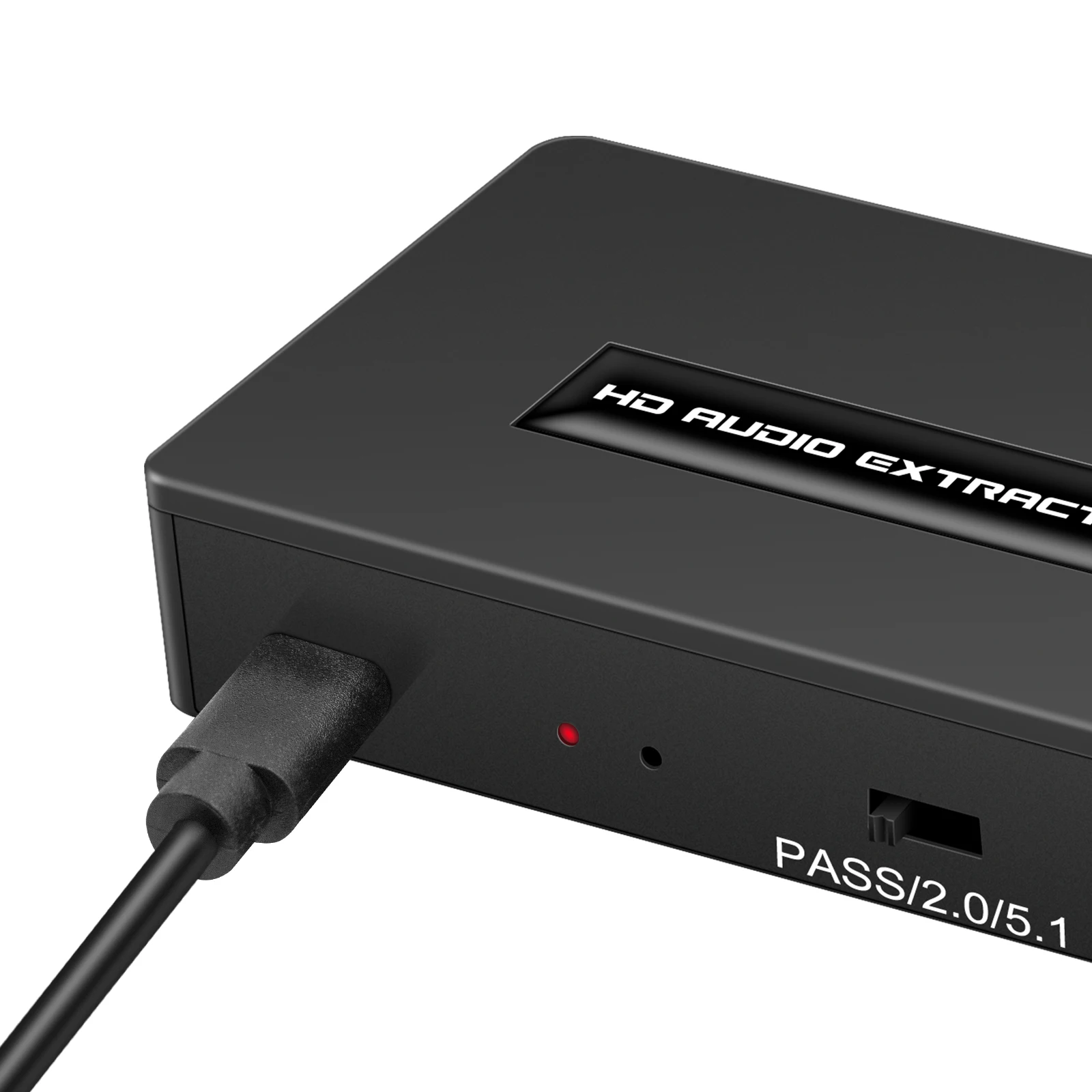

EDID audio switching settings
Pass mode: Audio and video output from HDMI, SPDIF and 3.5mm no sound output.
2CH mode: Extract 2CH PCM digital stereo audio and output it as 2CH analog stereo through 3.5mm and SPDIF.
5.1CH mode: Extract Dolby Digital/DTS and output through SPDIF or 3.5mm.
Specifications
Video color format: Supports 24bits/dark 30bit, 36bit.
Audio output: SPDIF+3.5mm audio.
Maximum bandwidth: 340 MHz.
Bit rate: 10.2 Gbps.
Power requirement: DC+5V, maximum working current 500mA.
Work environment
Temperature: -15 to+55 ° C
