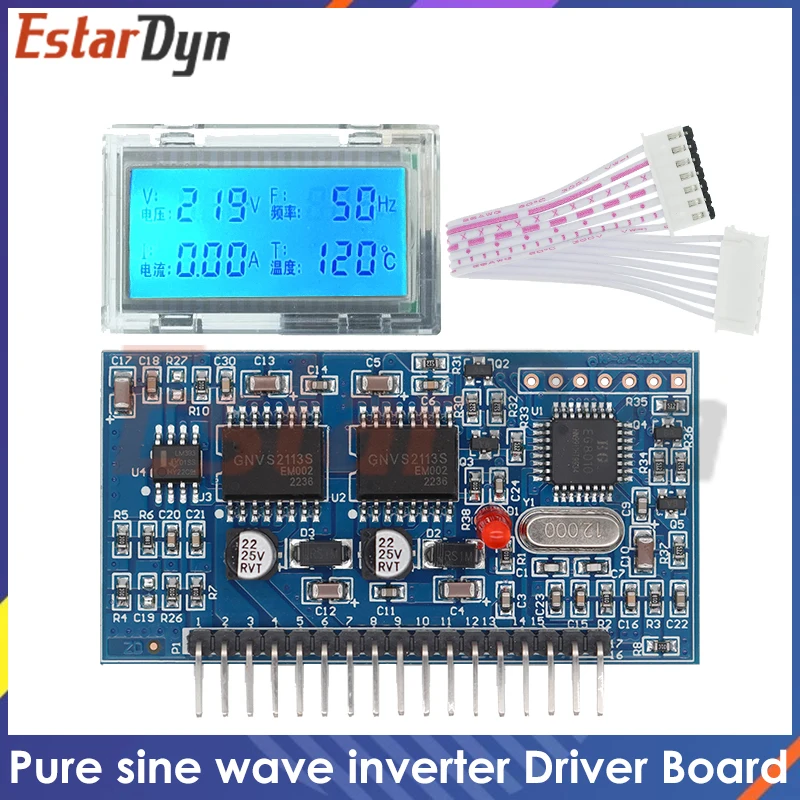

5v DC-AC reine Sinus-Wechsel richter spwm Treiber platine egs002 12MHz Kristall oszillator eg8010 Modul ir2113 Antrieb LCD-Modul

Produktbeschreibung

1. Product description
EG8010 is a digital and fully functional pure sine wave inverter generator chip with dead zone control, which is applied to DC-DC-AC two-stage power conversion architecture or DC-AC single-stage power frequency transformer boost conversion The structure, external 12MHz crystal oscillator, can realize the pure sine wave 50Hz or 60Hz inverter dedicated chip with high precision, low distortion and harmonics. The chip adopts CMOS technology and integrates functions such as SPWM sine generator, dead time control circuit, amplitude factor multiplier, soft start circuit, protection circuit, RS232 serial communication interface and 12832 serial LCD driver module.
3. Application areas
* Single-phase pure sine wave inverter
* Photovoltaic power inverter
* Wind power inverter
* Uninterruptible power supply UPS system
* Digital generator system
* IF power supply
* Single-phase motor speed controller
* Single-phase inverter
* Sine wave dimmer
* Sine wave regulator
* Sine wave generator

Produktdetails in Bildern

Produkteigenschaften

Markenname

Estardyn

Ursprung

CN (Herkunft)

Zustand

Neu

Typ

SPANNUNGSREGELER

Modellnummer

EGS002

Versorgungsspannung

5V

Verlustleistung

1

ist kundenspezifisch

Ja

Betriebstemperatur

45-+85

Anwendung

Computer

Choice

yes

semi_Choice

yes
