B10 B12 B16 B18 B22 Bohrfutter, schlüsselloses Bohrfutter, Drehfutter, selbstspannend, automatische Verriegelung, Klemme, Drehmaschinenzubehör

Produktbeschreibung

Package includes
1pcs drill chuck (excluding milling cutter)
Features of automatic drill chuck

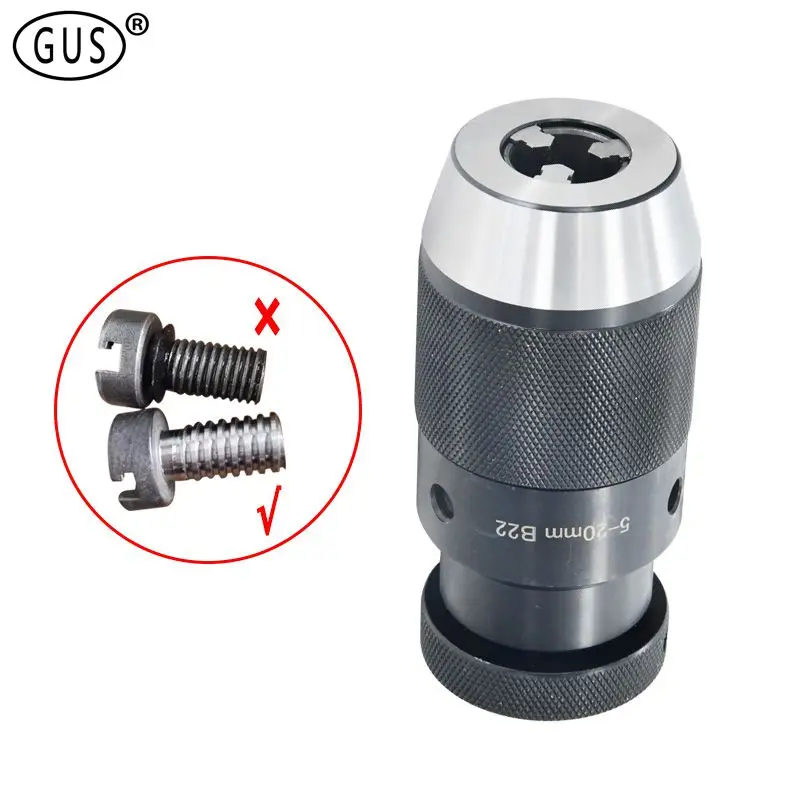

The key design of the drill chuck is a large-pitch thread design, which is more durable than a small-pitch screw. It reduces the occurrence of jamming during the rotation and clamping process, and solves the common defects of drill chucks.
Rustproof
Nickel plating process, with excellent corrosion resistance, wear resistance, weldability and high hardness.
Automatic head：
Material: Shell 40Cr, paw T10A.
Taper hole accuracy: P grade 0.14mm
Features
1：Small size, light weight, safe and simple operation.
2：Widely suitable for all kinds of drilling machines, milling machines, lathes, boring machines and flashlight tools.

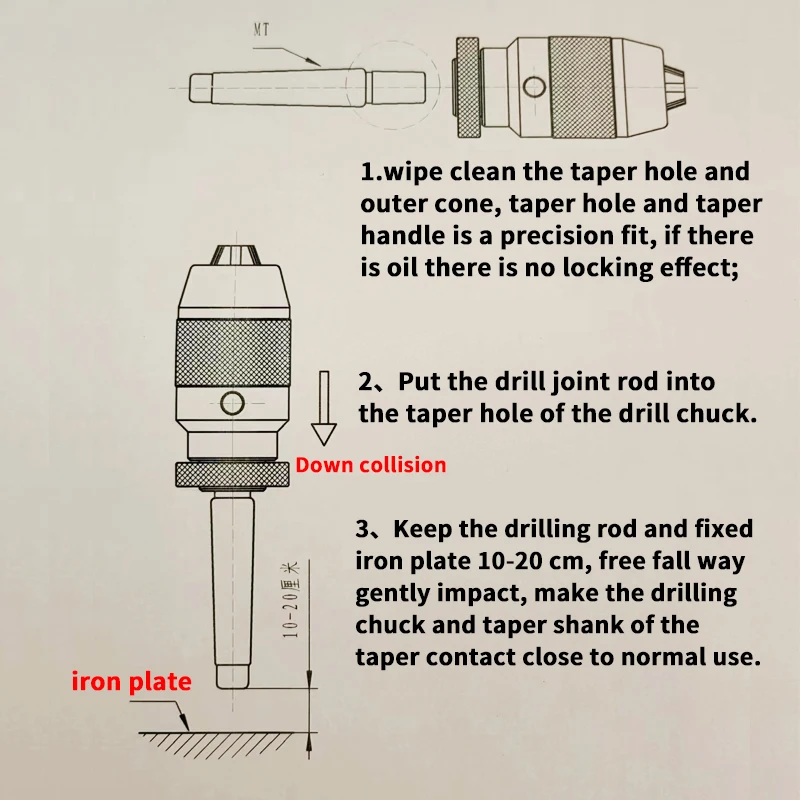

1.wipe clean the taper hole and outer cone, taper hole and taper handle is a precision fit, if there is oil there is no locking effect
2、Put the drill joint rod into the taper hole of the drill chuck.
3、Keep the drilling rod and fixed iron plate 10-20 cm, free fall way gently impact, make the drilling chuck and taper shank of the taper contact close to normal use.
1. We have our own factory and professional CNC tool post-production team. We sell CNC machine parts in bulk. We are a professional manufacturer of CNC tool holders. Set research and development, production and sales in one. The company has advanced processing equipment, testing equipment and professional and technical personnel.
2. Mainly produce high-precision BT toolholders, HSK toolholders, ISO toolholders, keyless toolholders, pullback toolholders, spindle accuracy test bars, high-precision collets and other products.
3. According to customer requirements, we can design and manufacture various high-quality non-standard knives with handle.
pay attention
Please confirm your address before placing an order. Once the goods are shipped out, we cannot change the address.

Produktdetails in Bildern

Produkteigenschaften

Markenname

GUS

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Modellnummer

B10 B12 B16 B18 B22 drill chuck

Zertifizierung

CE

Anwendung

der Fräser
