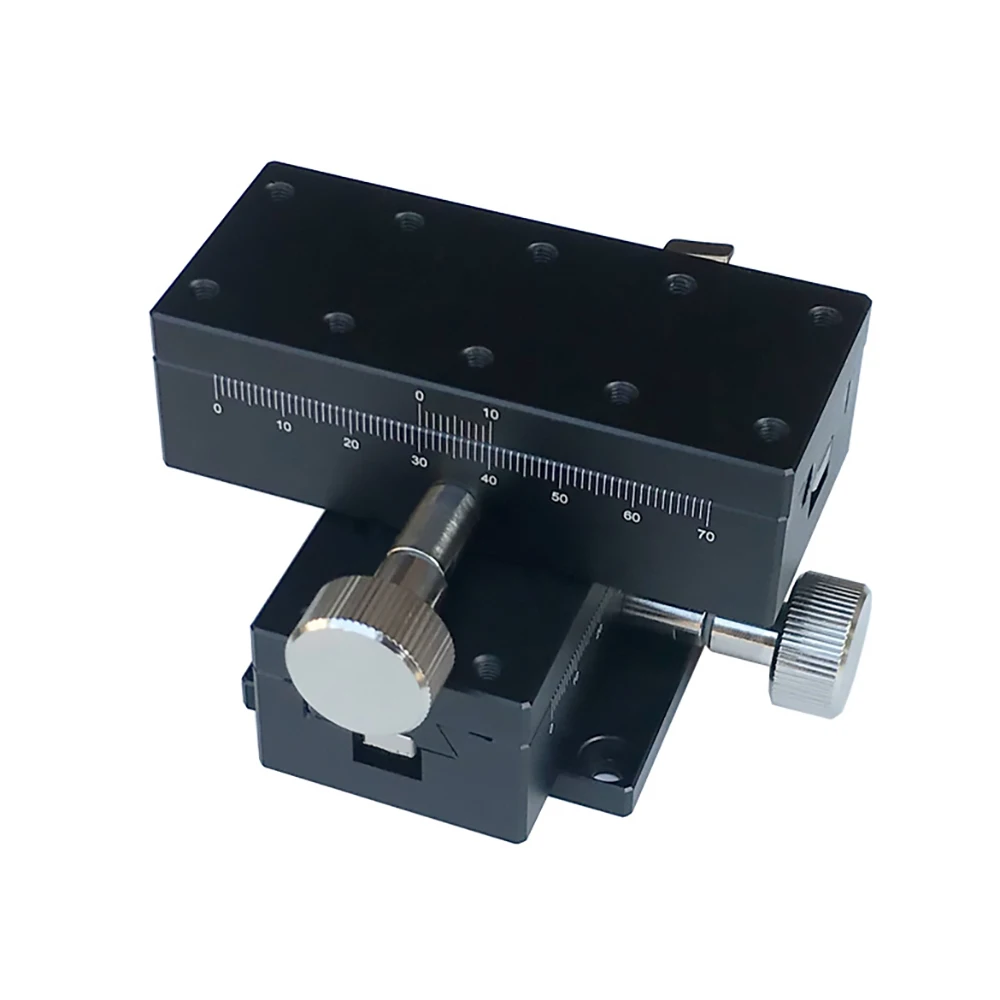

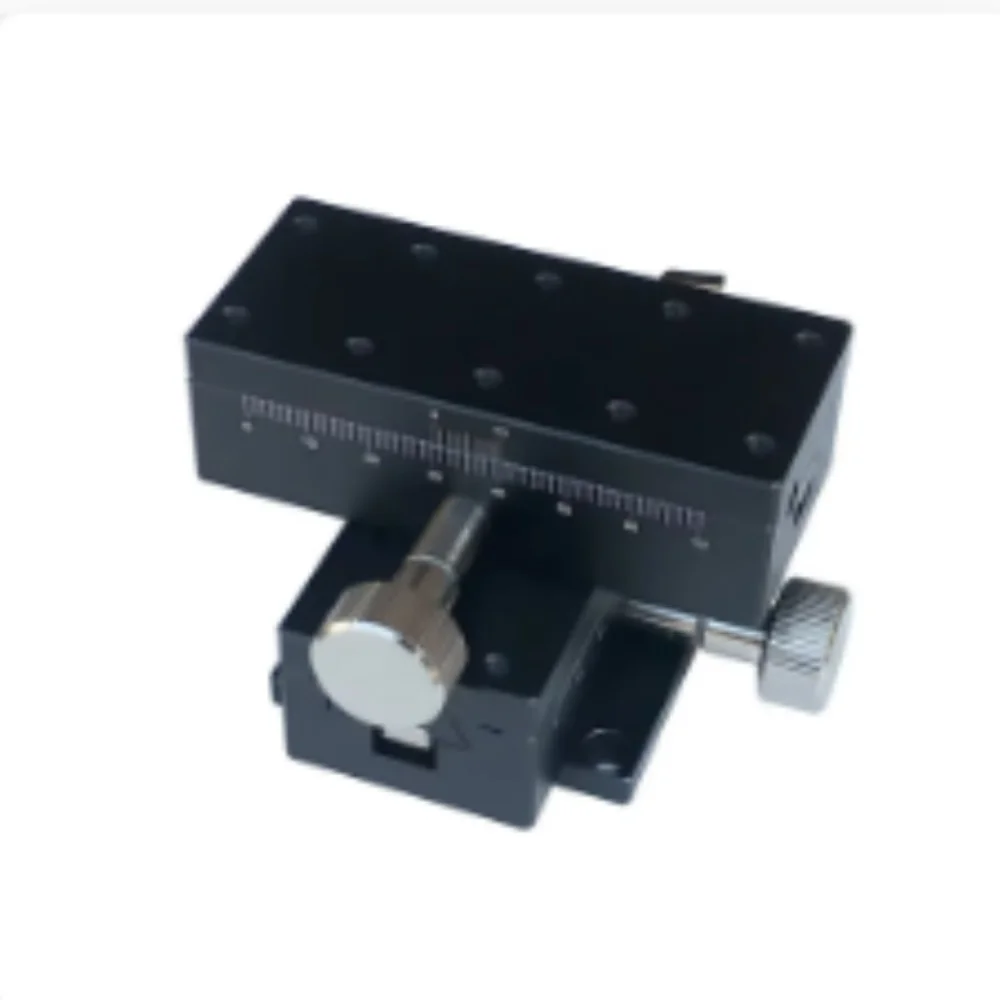

LWY4090 40x90mm Aluminium XY-Achsen-Schiebetisch mit Zahnradverstellung für hochpräzise manuelle Mikropositionierungsplattform

Produktbeschreibung

Welcome to our store,Have a nice day！
Feature
Driving method using rack and pinion, high frequency, suitable for the need for rapid movement and large stroke of the occasion
The main material for the aluminum alloy, light weight, suitable for built-in other devices
Long stroke, can be equipped with multiple sliders
Parameter

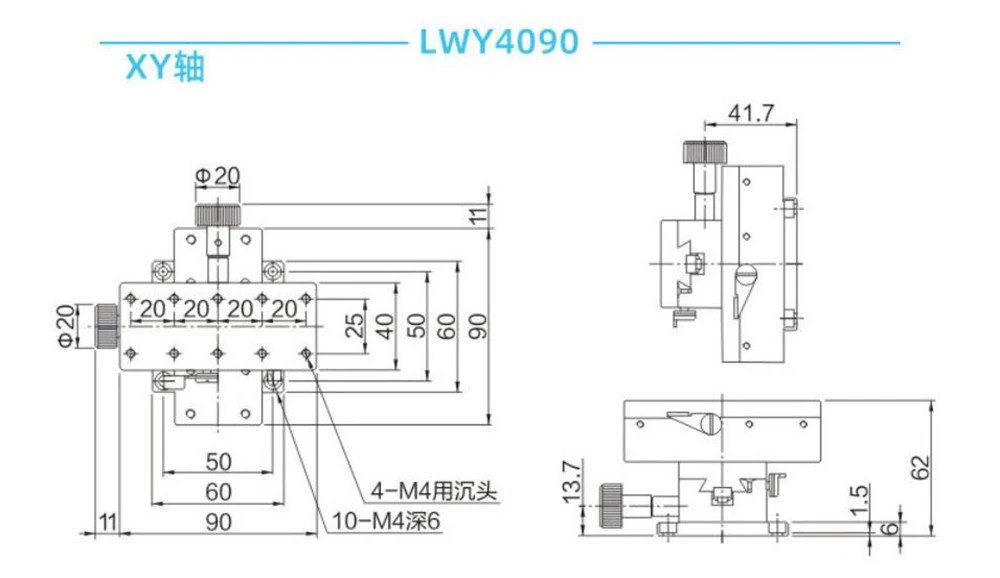

Table size: 40 * 90mm
Moving direction: X Y axis
Driving mode: Micrometer head
stroke: ± 30mm
Load: 49N (5kgf)
Moving parallelism:≤ 0.3mm/60mm
Minimum scale: 0.1mm
Weight: 0.814KG
Shipping instructions
1. Normally, we will ship the goods within 2-3 working days after your payment.
2. In case of promotion days or holidays, we will deliver the goods in order within six days according to the customer's order of payment.
3. It takes 4-5 working days to update the express system online.
4. If you do not receive the package in time, please let us know and we will track the package.
Freight description

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Modellnummer

LWY4090

Führungsbreite oder Durchmesser

40*90
