Modbus RTU-Relaismodul 1 2 4 Kanal 7-24 V RS485 TTL UART-Ausgang 12 V Eingang 485 Kommunikation TTL-Pin Modbus-Rtu Anti-Reverse

Produktbeschreibung

Product Parameter
1. Onboard module: Onboard SPP_C Bluetooth-compatible serial slave module
2. With wireless control function
3. Onboard relay: 12V, 10A/250V AC, 10A/30V DC relay, long relay life, can be continuously pulled in 100,000 times
4. Diode efflux protection: with diode efflux protection, short response time
5. On-board indicator: Bluetooth-compatible status indicator (slow flashing when not connected, long light after connection) and relay status indicator (lights up after closing)
6. Control distance: 10m (open environment)
7. Follow the specification: follow the Bluetooth-compatible 2.1 +EDR specification
8. Working voltage: DC 12V
9. DC control maximum voltage: DC 30V
10. Maximum voltage for AC control: AC 250V

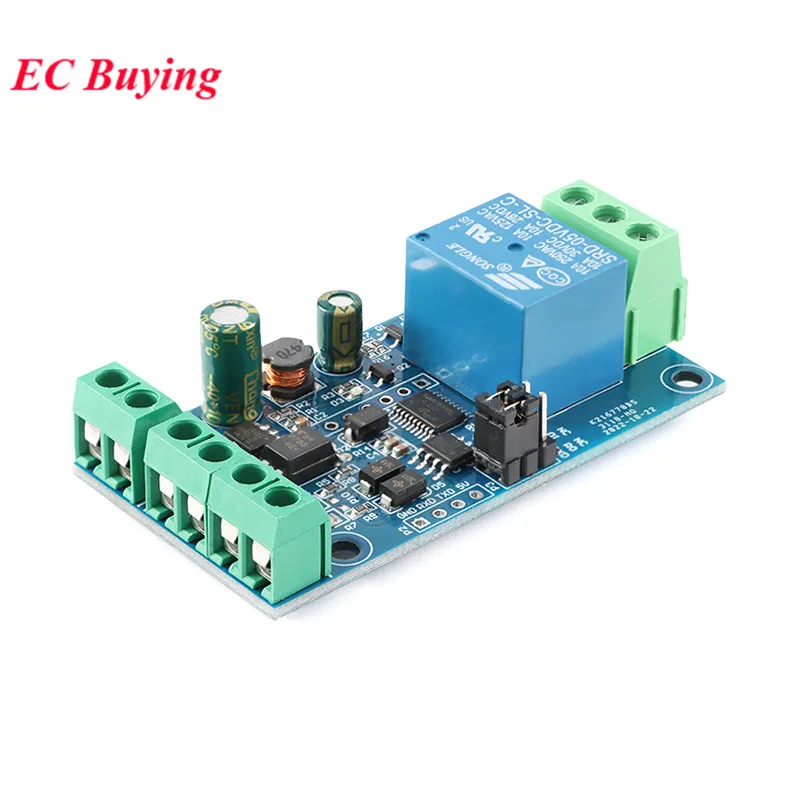

1 Way Relay Mdoule
IN+: input positive
IN-: input negative
NC: Relay normally closed 0
N0: Relay normally open interface
COM: public
Open relay command: A0 01 01 A2 (sent in hexadecimal)
Close relay command: A0 01 00 A1 (sent in 16 hex)

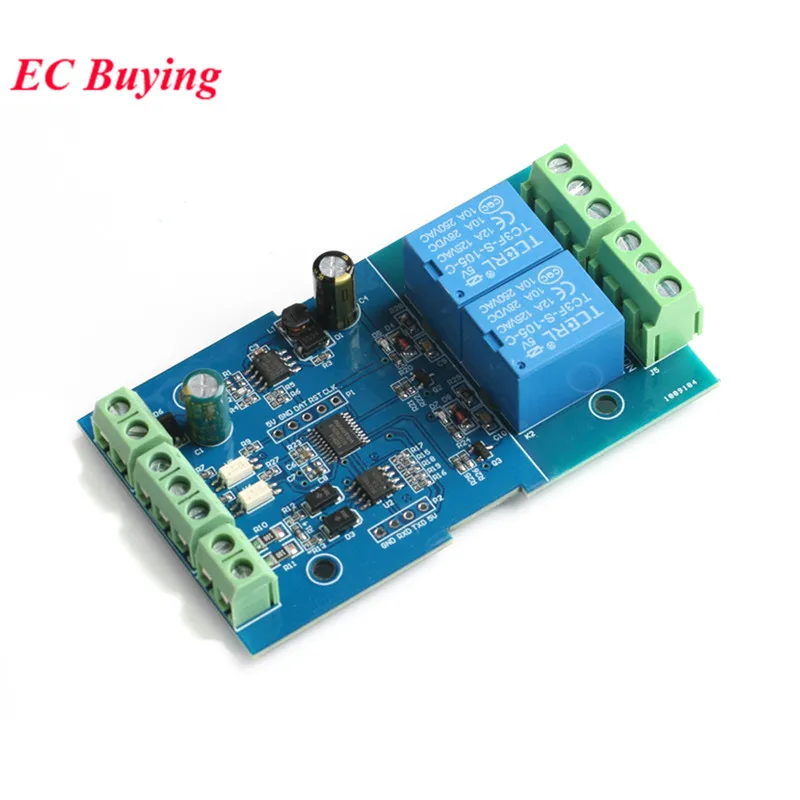

2Way Relay Mdoule

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

PCB Board Rele

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

Module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32
