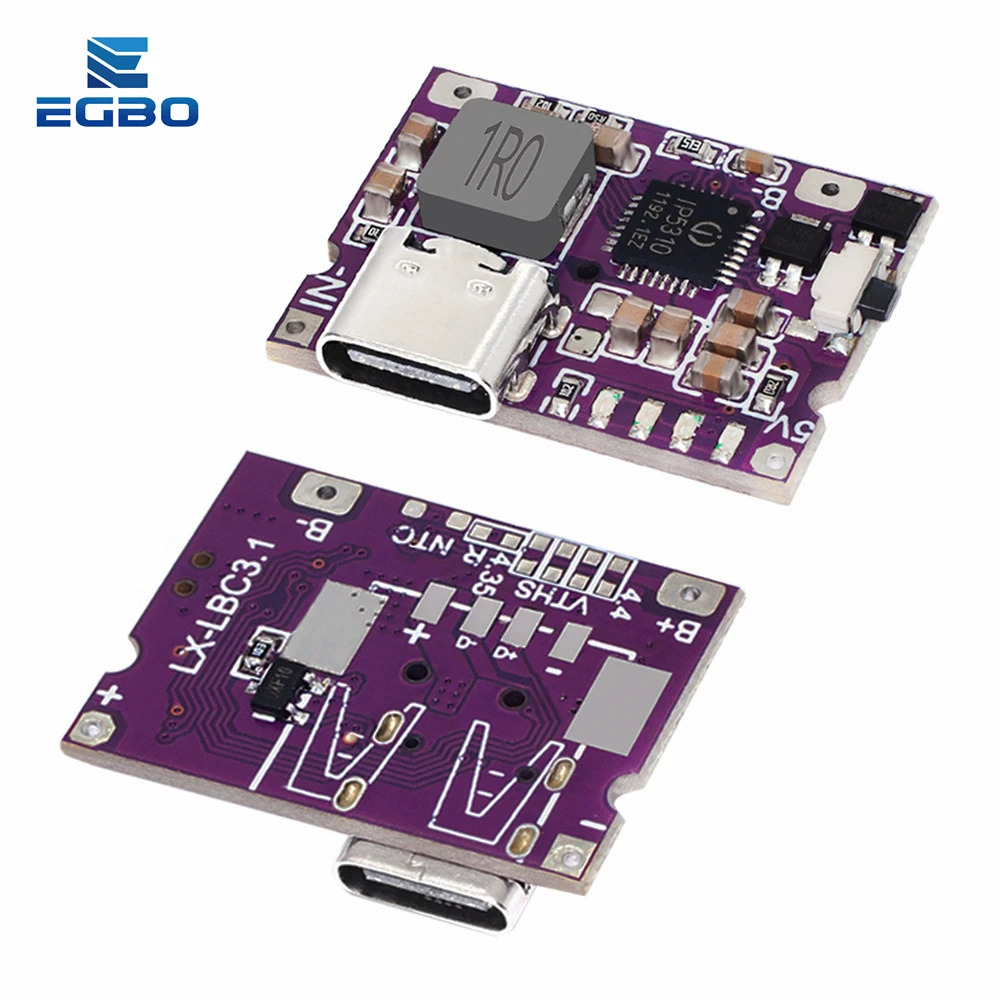

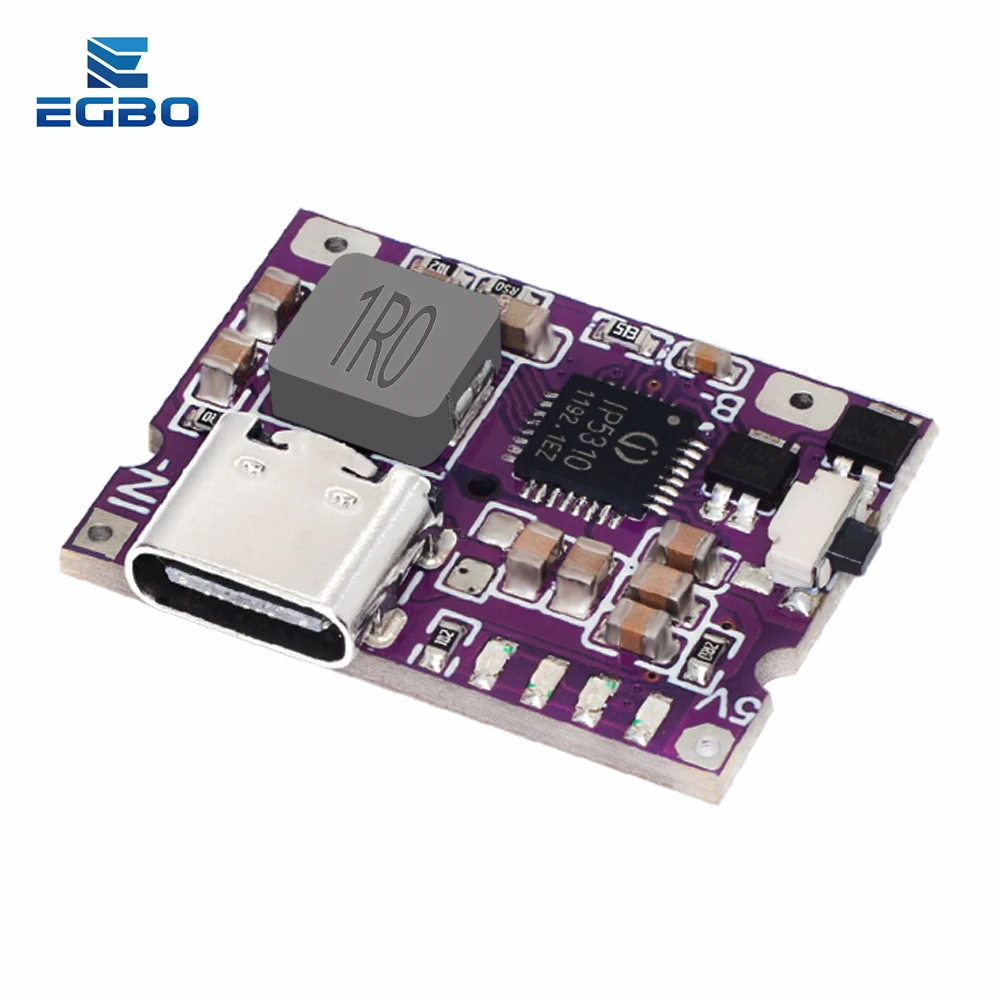

1~10 Stück IP5310 Typ-C USB-A 5V 3,1A Boost-Konverter Step-Up Strommodul Powerbank-Zubehör mit Schalter und LED-Anzeige

4,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 7–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Product Description
3.1A boost output 3A battery terminal charging super small and super energy
Carefully designed small and full Type-C+USB dual port design is practical and easy to use Selected good materials are small and strong to ensure limited heat dissipation volume 3.1A, fast and stable output.
1. 3.1A synchronous boost conversion output
2. 3A battery terminal synchronization switch charging
3. Support filling while placing
4. Boost efficiency up to 93%
5. 4 LED power display
6. Automatically detect phone insertion and removal
7. Double click the key to close the output, and click to open the output
8. TYPE-C supports single port input and output
9. Mobile phone charging current intelligent recognition DCP
10. Intelligent load identification automatic standby
11. Output overcurrent, overvoltage and short circuit protection
12. Input overvoltage, overcharge, overdischarge and overcurrent discharge protection
INSTRUCTION
1. Before connecting the battery, connect the charging head of the mobile phone through the type-c data cable, and check that the four lights turn on in turn to confirm that the module chip functions well.
2. Use a multimeter to measure the prepared battery voltage, and ensure that the battery voltage is between 3.0-4.2V. If the voltage is higher or lower than this range, the battery may fail or is not applicable to the battery type.
3. After ensuring that the battery is free of problems, do a good job of static protection, prepare thick wires for welding, pay attention to the positive and negative electrodes, and the reverse plate must be burned.
4. The charging input can be connected to the charging head through the type-c interface, or it can be connected to 5V through the interface marked in blue in the figure above. The input current of port C should be greater than the input current of the welding interface (the input battery terminal of port C can be charged by 3A, and the maximum input battery terminal of the welding interface is 2A).
