24V 36V 48V LCD Geschwindigkeitsanzeige Gasdrehbeschleuniger für Elektrofahrrad E-Bike Roller Motorrad

Produktbeschreibung

For more products, please visit our shop
WinXu Tech Hall Throttle Video Display

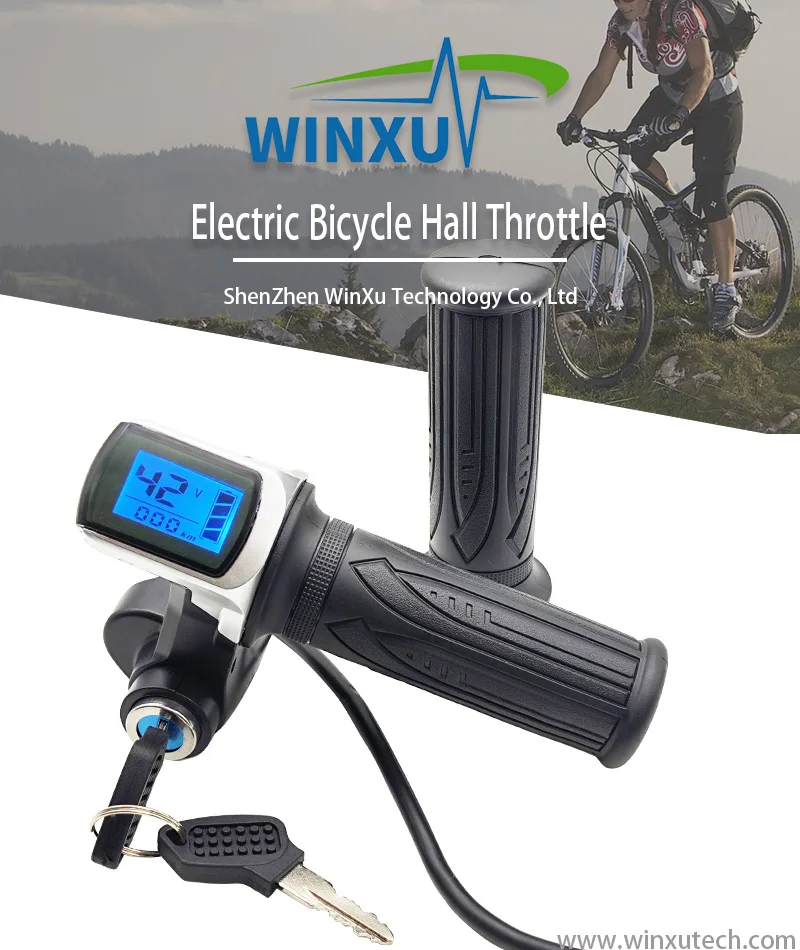

Universal Hall Throttle for E-bike
24V 36V 48V 60V multi-voltage type
Support lithium battery and lead-acid battery

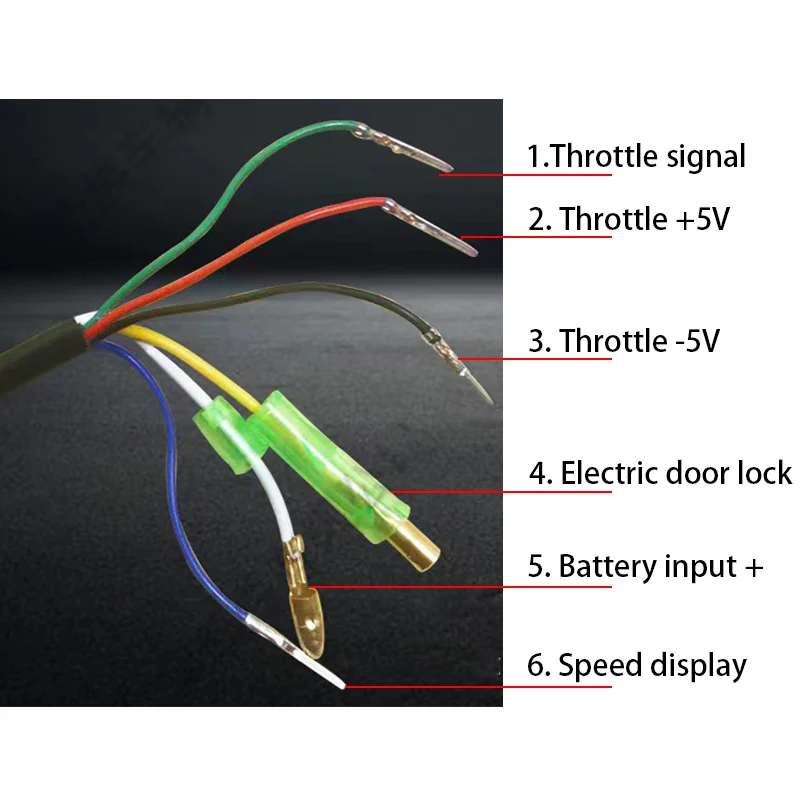

Throttle wiring diagram description
1. Throttle signal
The wire connect the signal wire on the controller.
2. Throttle +5V
The wire is connected to the throttle +5V voltage on the controller.
3. Throttle -5V
The wire is connected to the throttle negative on the controller.
4. Electric door lock
The wire is connected to the door lock wire on the controller.
5. Battery input +
The wire is connected to the controller power input + or battery +
6. Speed display
The wire is connected to the LCD speed display wire on the controller or the blue phase wire of the motor.
tips
This throttle use phase wire speed measurement design, please connect the LCD throttle speed display wire to the phase wire meter on the controller or the blue phase wire of the motor.

Produktdetails in Bildern

Produkteigenschaften

Markenname

WINXU(运输工具)

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Typ

DROSSEL

product name

LCD display throttle

battery voltage

24V / 36V / 48V / 60V

working voltage

5V

Signal output voltage

1.1V - 4.1V

sensor type

Hall sensor

throttle type

Twist throttle

Wire length

1.5m
