CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed

18,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 16–30 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

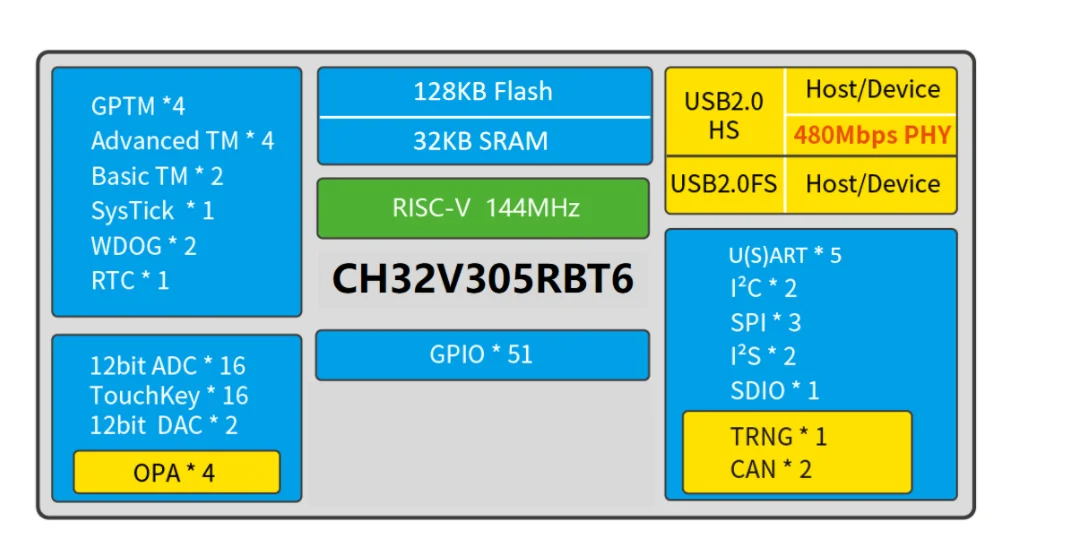

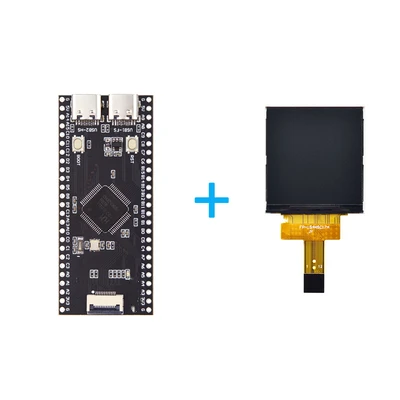

Based on the WCH CH32V305RBT6 chip development board, onboard dual TYPE-C USB interface, LCD interface, SD card interface, can be downloaded and burned through the USB port, convenient for customers to quickly prototype verification and development.
Features
· Dual USB interfaces, in which USB1 is USB-FS device and USB2 is USB-HS device

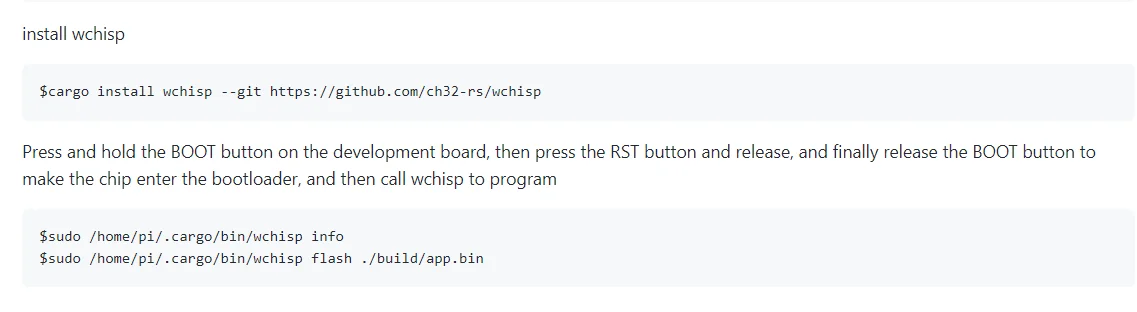

· It can be downloaded directly via USB without additional download device
· Onboard 8MHz and 32.768K crystal oscillator
· Lead out FPC-12P cable interface, which can support common LCD (such as ili9341, st7789, etc.)
Lead SD card, support SD card read and write (SDIO protocol)

Produktdetails in Bildern

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 1

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 2

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 3

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 4

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 5

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 6

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 7

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 8

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 9

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 10

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 11

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 12

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 13

CH32V305 Entwicklungsboard Minimales Systemboard Kernplatine RISC-V Open-Source Dual TYPE-C Schnittstelle USB High-Speed – Detail 14

Produkteigenschaften

Markenname: W
Ursprung: CN (Herkunft)
Hochbetriebenes Chemikalienunternehmen: Keine
Zustand: Neu
Typ: Modul

Artikelnummer: 1005005180667965
