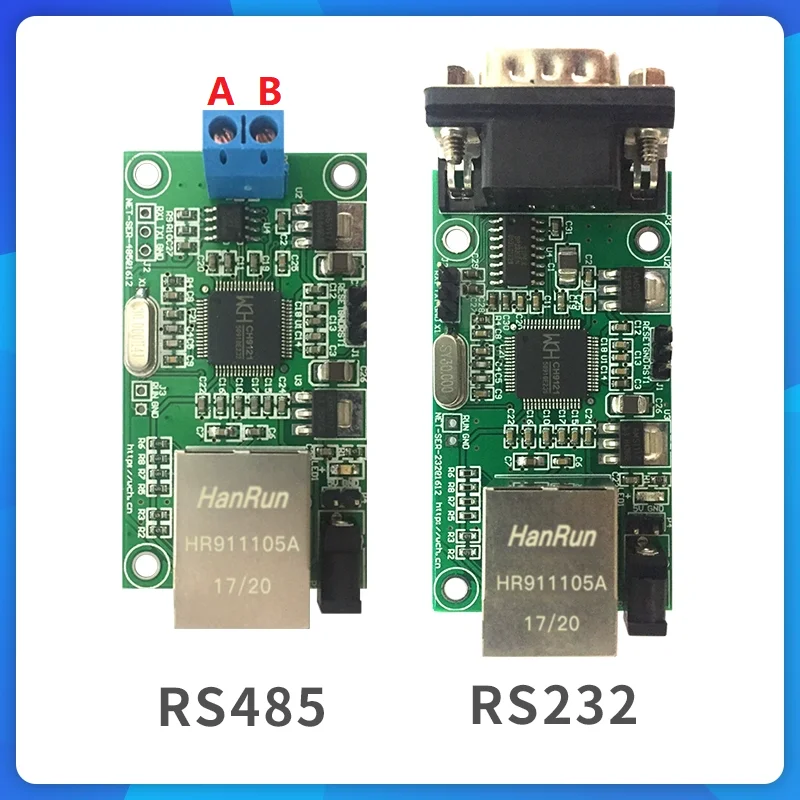

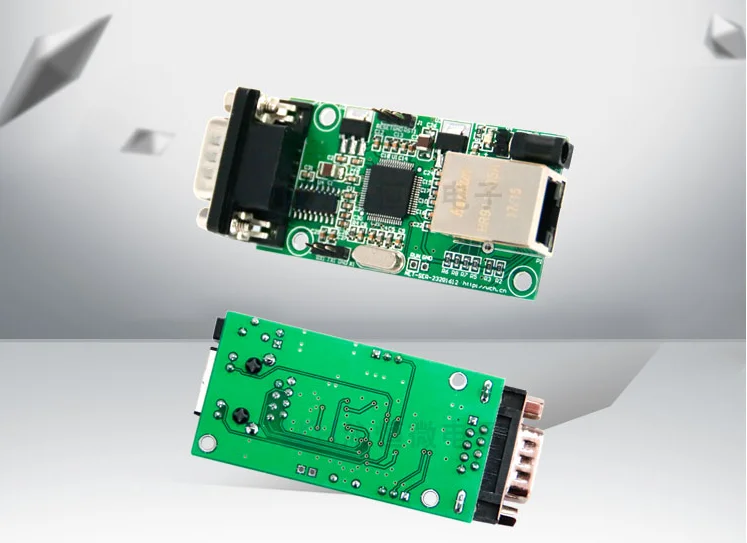

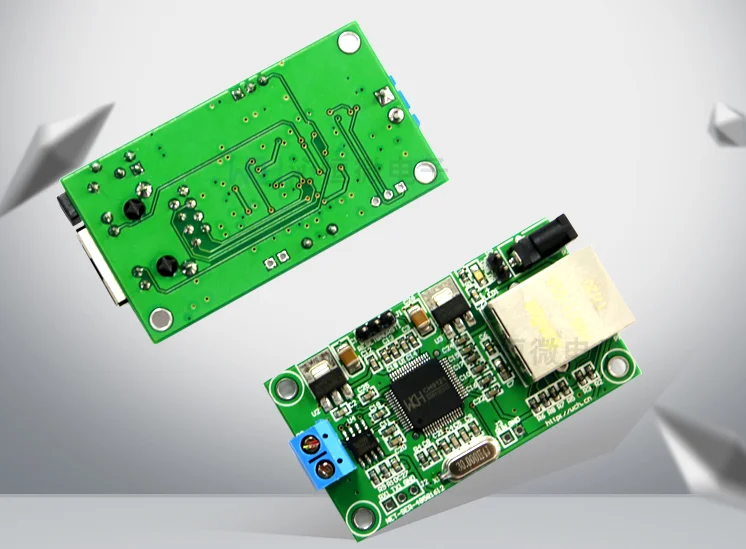

CH9121 Ethernet zu RS485 RS232 Serielle Schnittstelle transparentes Übertragungsmodul Unterstützung 10/100M, MDIX Line Auto-Switching

31,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 7–12 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

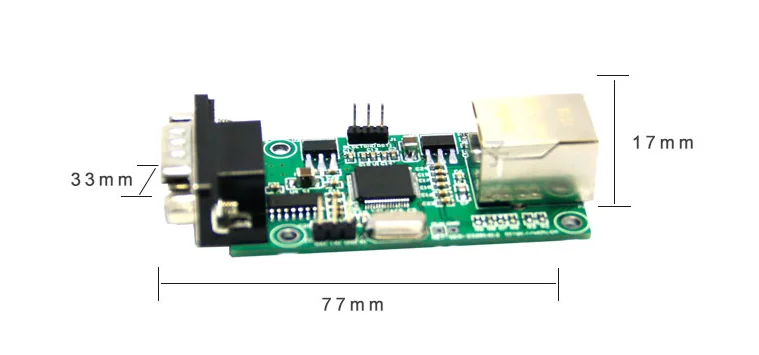

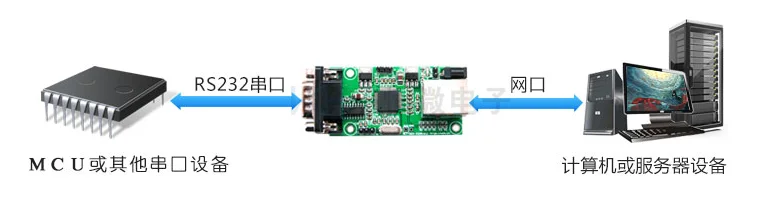

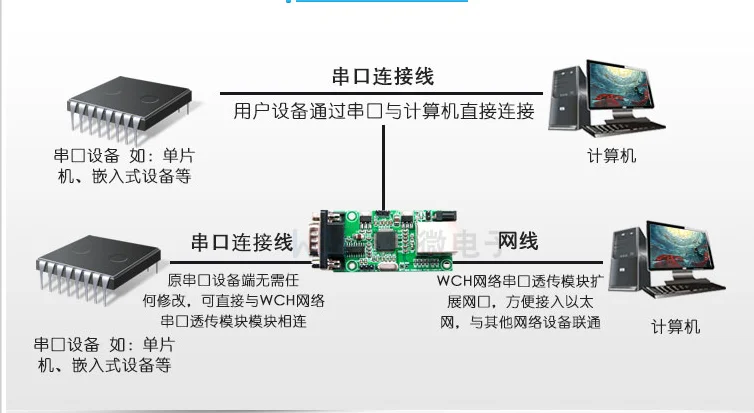

WCH network RS232 serial port transparent transmission module (WCHNST21), through the network to RS232 serial port, can realize the two-way transparent transmission of network data and serial port data, with TCPCLIENT, TCP SERVER, UDP SERVER, UDP CLIENT four modes of operation. Serial port baud rate can support up to 230400bps, can be easily configured through the upper computer software, convenient and fast.
RSTI-- -- Input -- -- External reset input, active low
RESET-- input -- restores factory Settings. The chip is powered on and detected. The low level is valid
RX1-- -- Input -- Indicates the serial data input of the chip TTL asynchronous serial port
TX1-- -- Output -- Indicates the serial data output of the TTL asynchronous serial port on the chip
GND-- Power supply -- common ground terminal
5V-- Power Supply -- The power input is 5V
RUN- Output - Indicates the normal running of the chip
TCP CLIENT mode
In TCPCLIENT mode, after the module is powered on, it will actively connect to the TCP SERVER. After the connection is established, two-way transparent transmission of network data and RS232 serial port data can be realized. The TCP client application model is as follows, which is suitable for field data collection and upload server mode.
TCP SERVER mode
In TCP SERVER mode, after the module is powered on, it will monitor whether there is a client request to connect to the local port. After the connection is established, the bidirectional transparent transmission of network data and RS232 serial port data can be realized.
UDP CLIENT mode
In UDPCLIENT mode, after a module is powered on, the data destined for the local port (from the destination IP address and port) is transparently forwarded to the RS232 serial port of the module. Similarly, the data destined for the serial port of the module is also forwarded to the specified destination IP address and port through UDP.
UDP SERVER mode
In UDPSERVER mode, all data sent to the local IP address and port is received and forwarded to the RS232 serial port. Data sent to the module serial port is also forwarded by UDP to the UDP IP address and port with which it communicates.

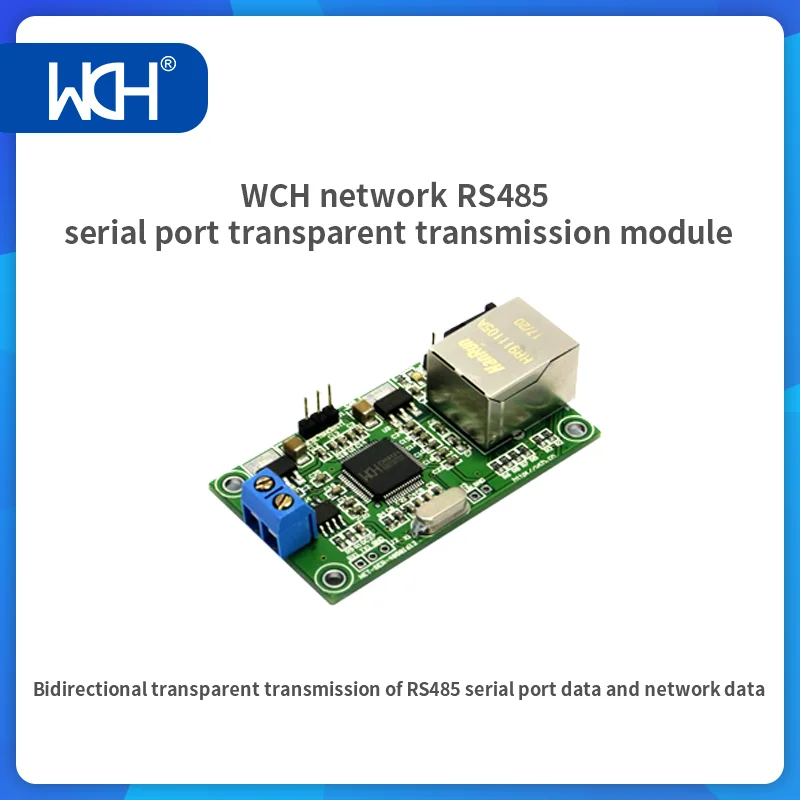

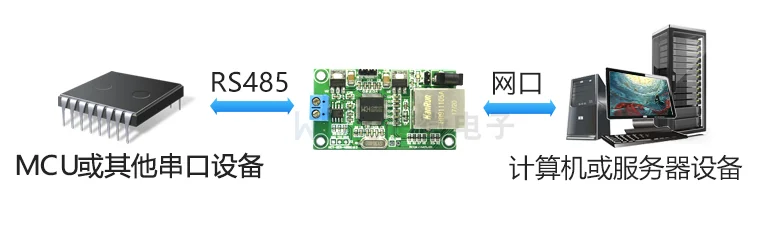

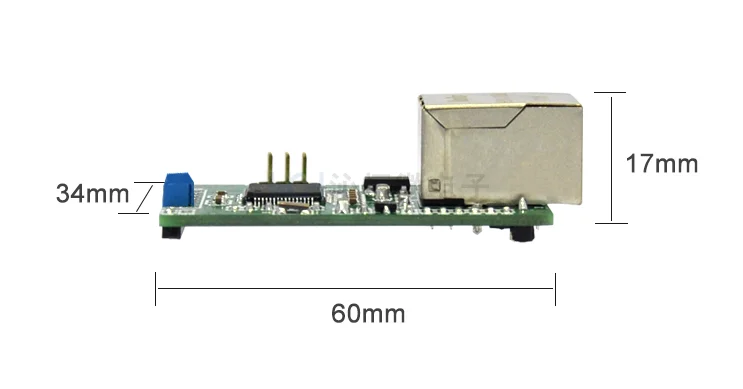

WCH network RS485 serial port transparent transmission module (WCH NST41), through the network to RS485 serial port, can realize the two-way transparent transmission of network data and serial port data, with TCP CLIENT, TCP SERVER, UDP SERVER, UDP CLIENT four modes of operation. Serial port baud rate can support up to 921600bps, can be easily configured through PC software, convenient and fast.
Supports 10/100M automatic switching of MDIX lines
