ZOERAX CAT5E CAT6 CAT5e Werkzeugloses RJ45 UTP Keystone-Steckmodul, kein Lötwerkzeug erforderlich

Produktbeschreibung

ZoeRax Tool-Less RJ45 UTP Keystone Jack, No Punch-Down Tool Required Module Coupler
【Self-terminating, no tool required】This toolless UTP keystone Jack is a female RJ45 connector for networking; The cable conductors can be terminated by a 180 Degree snap-fit cap being pressed into place, designed to smoothly snap into most of the standard keystone applications
【Housing Materials】Made with 50μ gold plated connector and full copper conductor, Prevent corrosion over time; ABS case for fire resistance; Features a dust-proof shutter to ensure signal transmission
【Features】Cat5e/ 6/6a performance to future-proof your network|Backwards compatible to 10/100/1000 Mbps Ethernet CAT5 CAT5E CAT6 CAT6A. Complies with the ANSI/TIA/EIA 568-C.2 standard; labeled for T568A and T568B wiring scheme next to wire clips; 110 or Krone type termination are both supportive; It accepts 22 to 26 AWG solid Ethernet Patch Cords
【Applications】The Jack is compatible with a wide range of patch panels, surface mount boxes, or wall plates (face plates). It is quite versatile that can be mounted with different type of keystones on a same plate
【Packaging】1/2/10/30 pcs Keystone Module Connector Per Bag
SELF-TERMINATING NO TOOL REQUIRED
No punch-down tool is required, as cable conductors can beterminated by a 180 Degree snap-fit cap being pressed into place
HOME OR OFFICE APPLICATIONS
The Jack is compatible with a wide range of patch panels, surface
mount boxes, or wall plates (face plates)

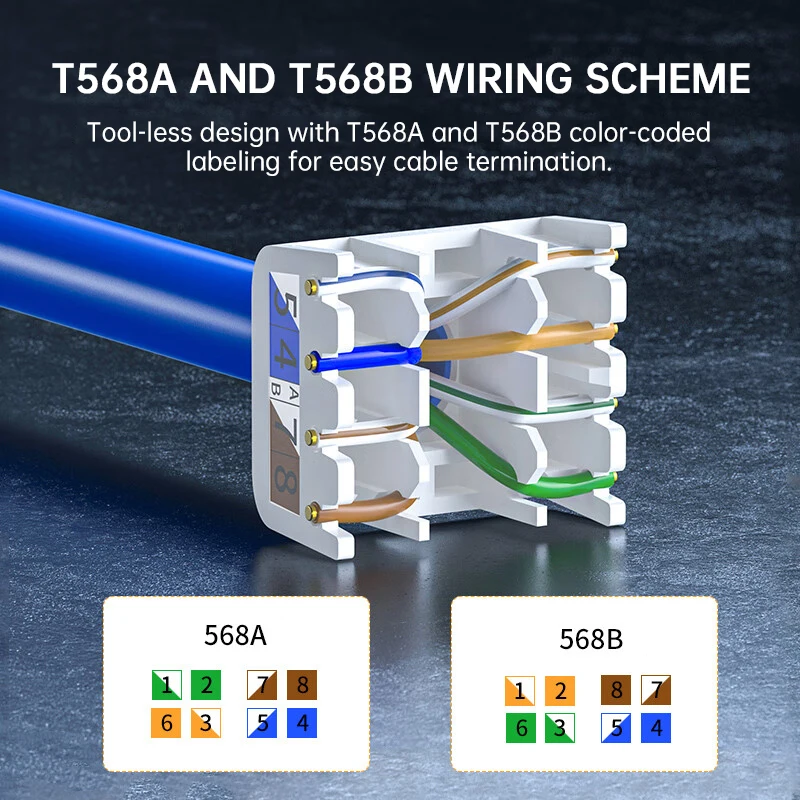

T568A AND T568B WIRING SCHEME
Tool-less design with T568A and T568B color-codedlabeling for easy cable termination.
FUTURE-PROOF YOUR NETWORK
These keystone jacks are Perfect for building up your10 Gbpsreliablecabling system.
HOUSING MATERIALS
Made with 50u gold plated connector and full copper conductor. Prevent the corrosion over time

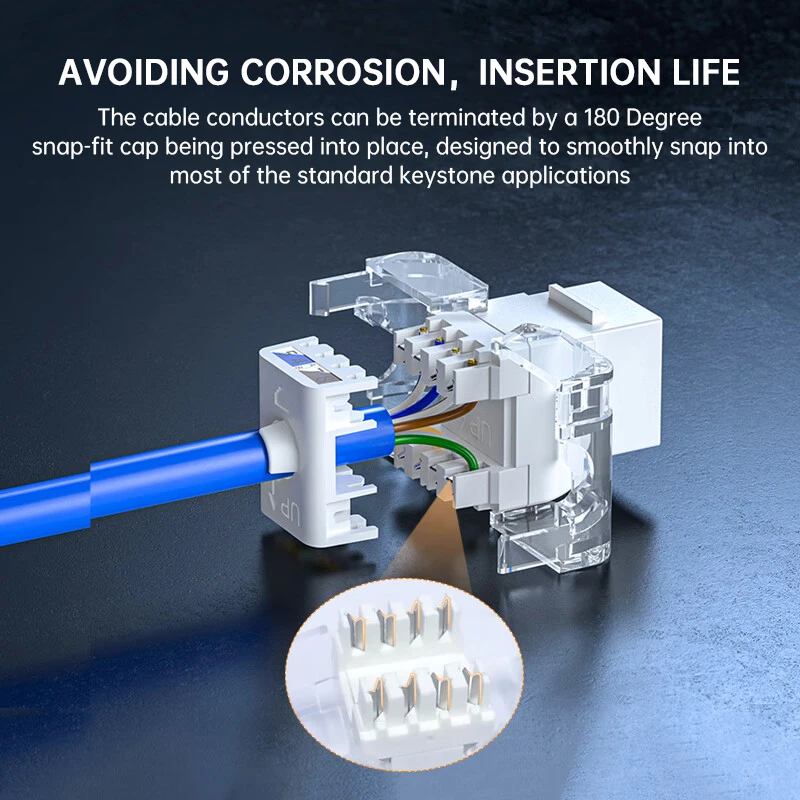

AVOIDING CORROSION，INSERTION LIFE
The cable conductors can be terminated by a 180 Degreesnap-fit cap being pressed into place, designed to smoothly snap into most of the standard keystone applications

Produktdetails in Bildern

Produkteigenschaften

Markenname

ZoeRax

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Montage Erforderlich

no

Typ

Stecker

Paket

Ja

Zertifizierung

CE

Modellnummer

MKC6-XKWT-01
