5 Stück/1 Stück STM32F401 STM32F411 Entwicklungsboard STM32F401CCU6/CDU6 STM32F411CEU6 Lernmodul 84 MHz 64 KB RAM 256 KB ST-LINK V2
inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten
Lieferung nach Deutschland
Lieferzeit: 21–30 Tage
Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.
Produktbeschreibung

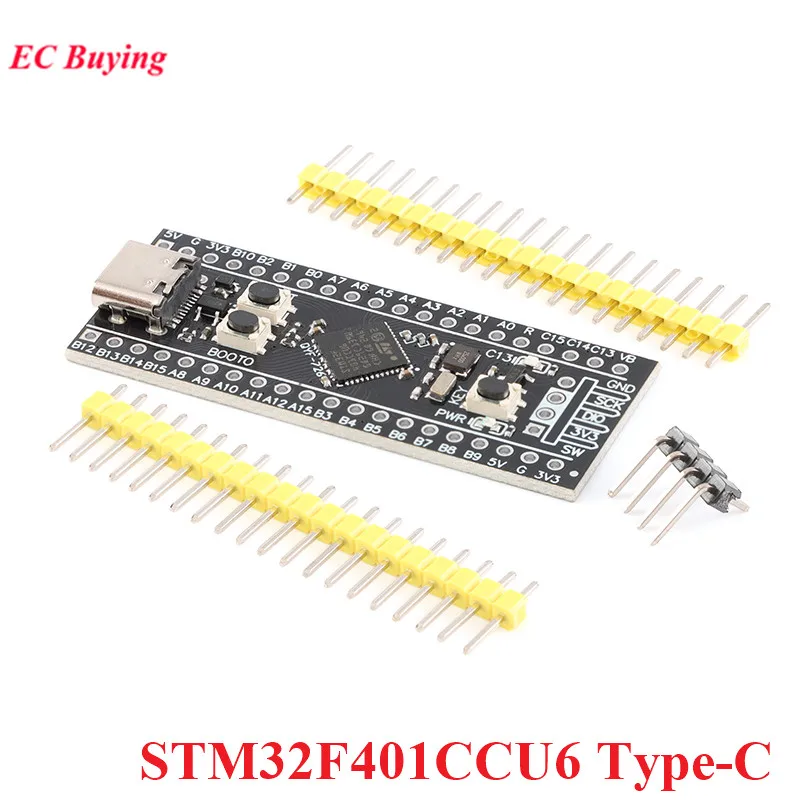

STM32F401CEU6 core board
Freq. 84Mhz ROM:64KB RAM:256KB

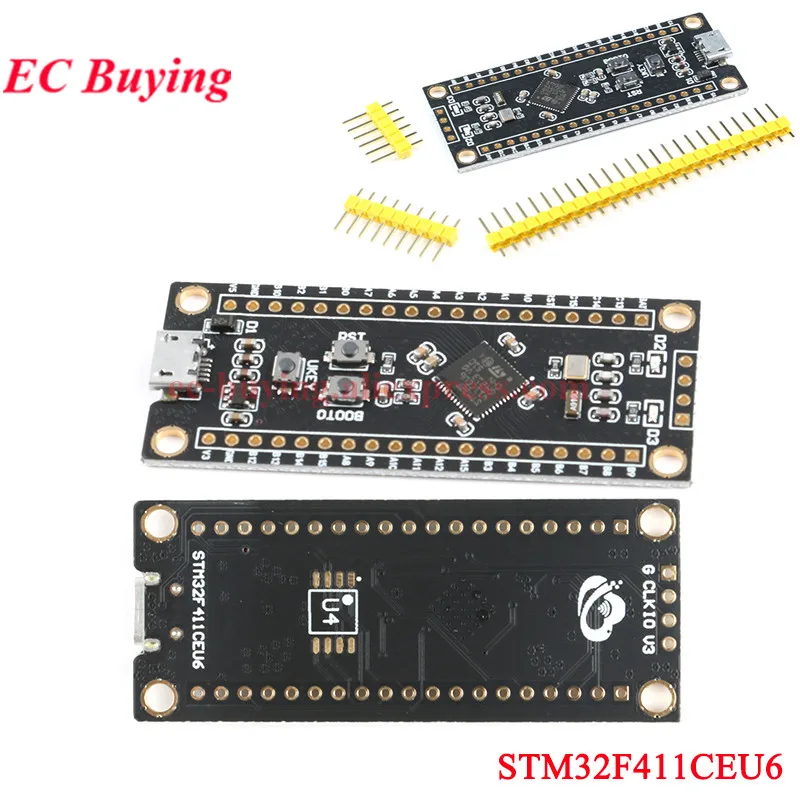

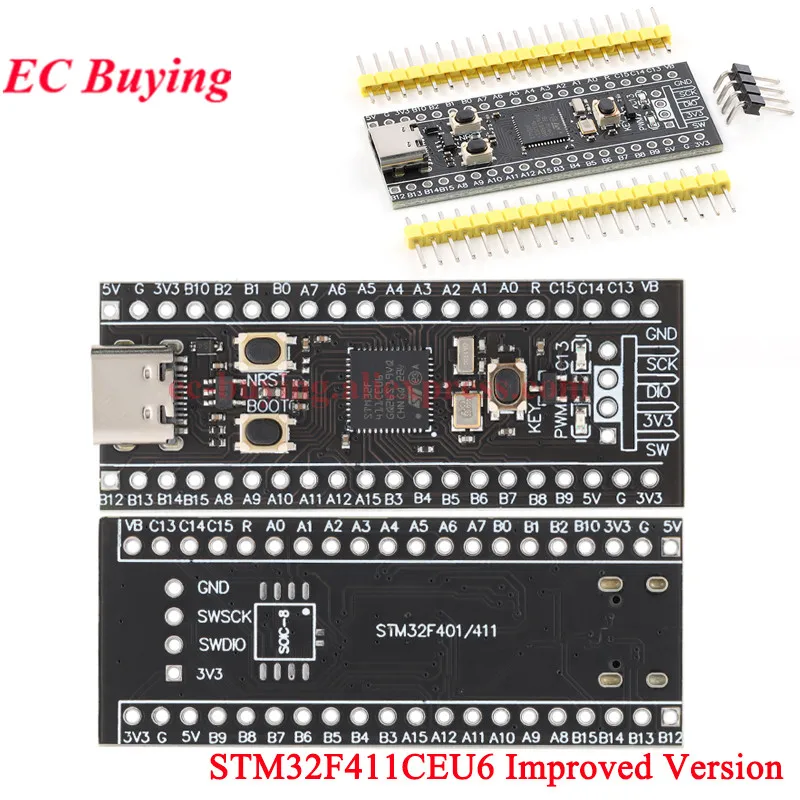

STM32F411CEU6 core board
Freq. 100MHZ ROM:128KB RAM:512KB
Core Board Information
25MHZ high speed crystal oscillator & 32.768Khz 6PF low speed crystal oscillator
V3.0 version began to use lead-free process, the pin header is gold-plated pin header, more environmentally friendly
Flash pads have been reserved and USBDisk && FATFFS routines are provided
Support MicroPython programming, provide available MicroPython firmware, see the link for configuration files, but do not provide technical answers!
Boards with version V1.3 and above have 3 buttons, reset button, BOOT0 button, and user buttons.
How to enter ISP mode
Method 1: Press and hold the BOOT0 button and the reset button under the power-on state, then release the reset button, and release the BOOT0 button after 0.5 seconds
Method 2: Hold down the BOOT0 key when power is off, and release the BOOT0 key 0.5S after power on
DFU mode: just use the data cable to connect to the computer, if there is a problem of unrecognized, you can properly heat the chip (25 ° C), and then re-enter the ISP mode
Serial port mode: use USB to serial port to connect PA9 and PA10 of the core board
Software: STM32CubeProg.
No need for USB to serial port, no debugger, no computer driver, just a TYPE-C data cable to complete the firmware download
How to enter HID Bootloader after writing to APP
Press and hold the
KEY button
Produktdetails in Bildern
Produkteigenschaften
- Markenname
- EC Buying
- Ursprung
- CN (Herkunft)
- Hochbetriebenes Chemikalienunternehmen
- Keine
- Zustand
- Neu
- Typ
- SPANNUNGSREGELER
- Versorgungsspannung
- STM32F4 Type-C USB/Micro USB
- Verlustleistung
- low
- ist kundenspezifisch
- Ja
- Betriebstemperatur
- normal
- Anwendung
- Computer
- Paket
- Module
- Smart Electronics Experiment
- Switch And Sensor For Arduino STM32
- STM32F411CEU6 STM32F4 Core Small
- System Learning Development Board PCB Module Type-C USART IIC SPI USBFS 3.3-5V

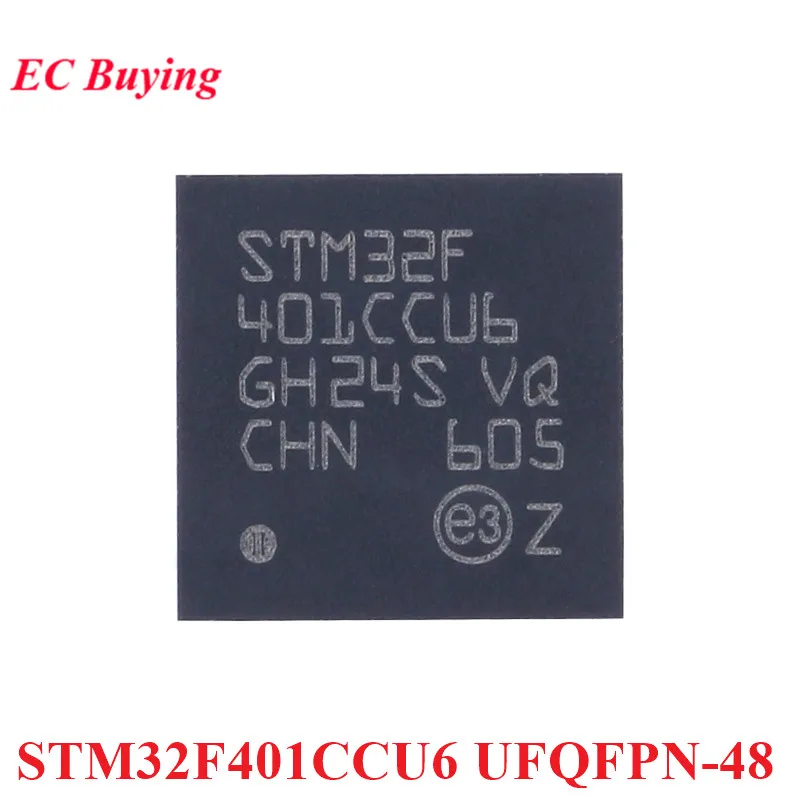

- STM32f401CCU6 core board
- stm32f401 411 development board small system board learning board stm32f401ccu6
- STM32f411CEU6 Chip core board
- stm32f401 411 development board small system board learning board stm32f411ceu6
- interface
- Type-C Micro USB
- STM32F051K6U6 UFQFPN32
- stm32 F051K66 STM32F051 ARM Cortex-M0 32-bit microcontroller MCU
Artikelnummer: 1005005233724106
