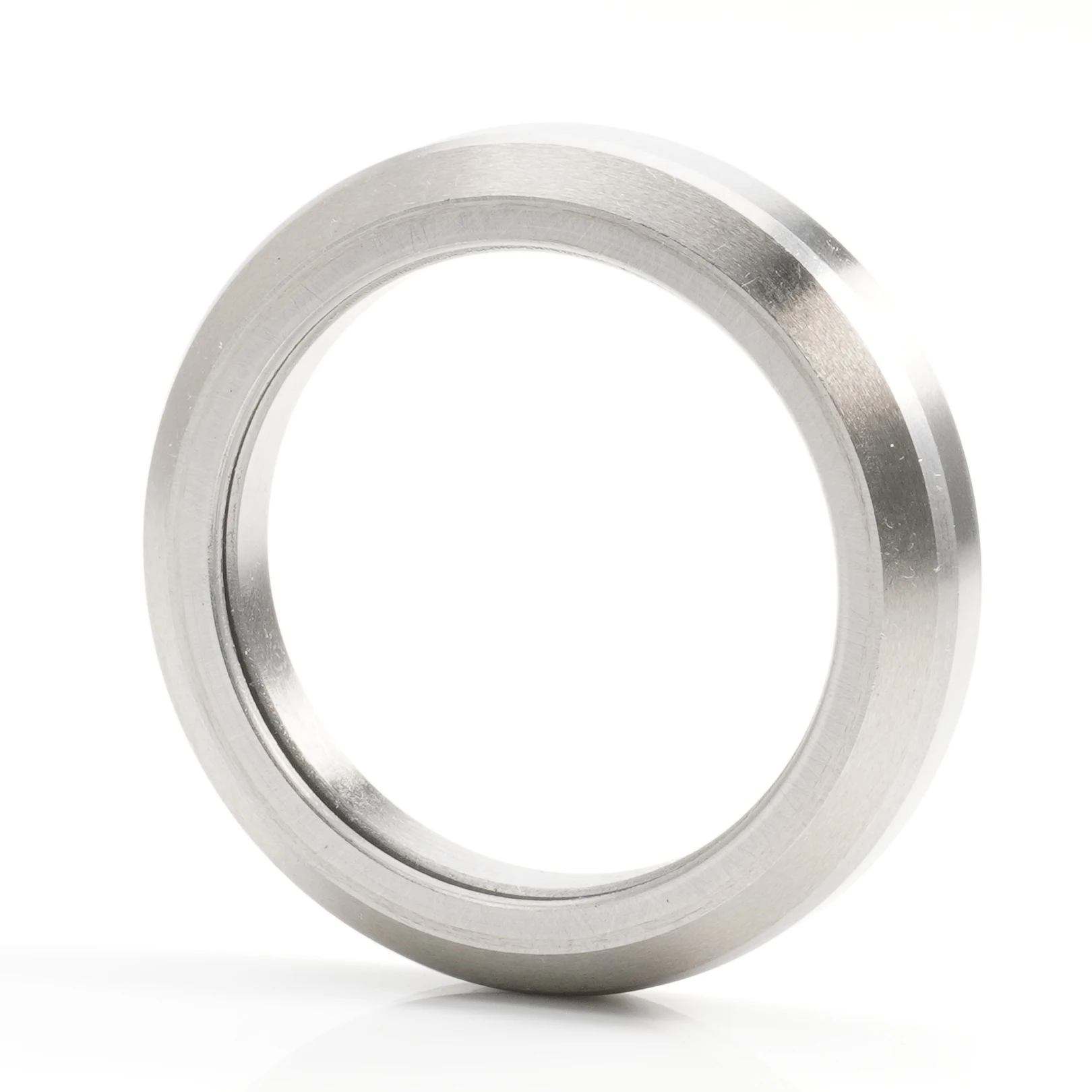

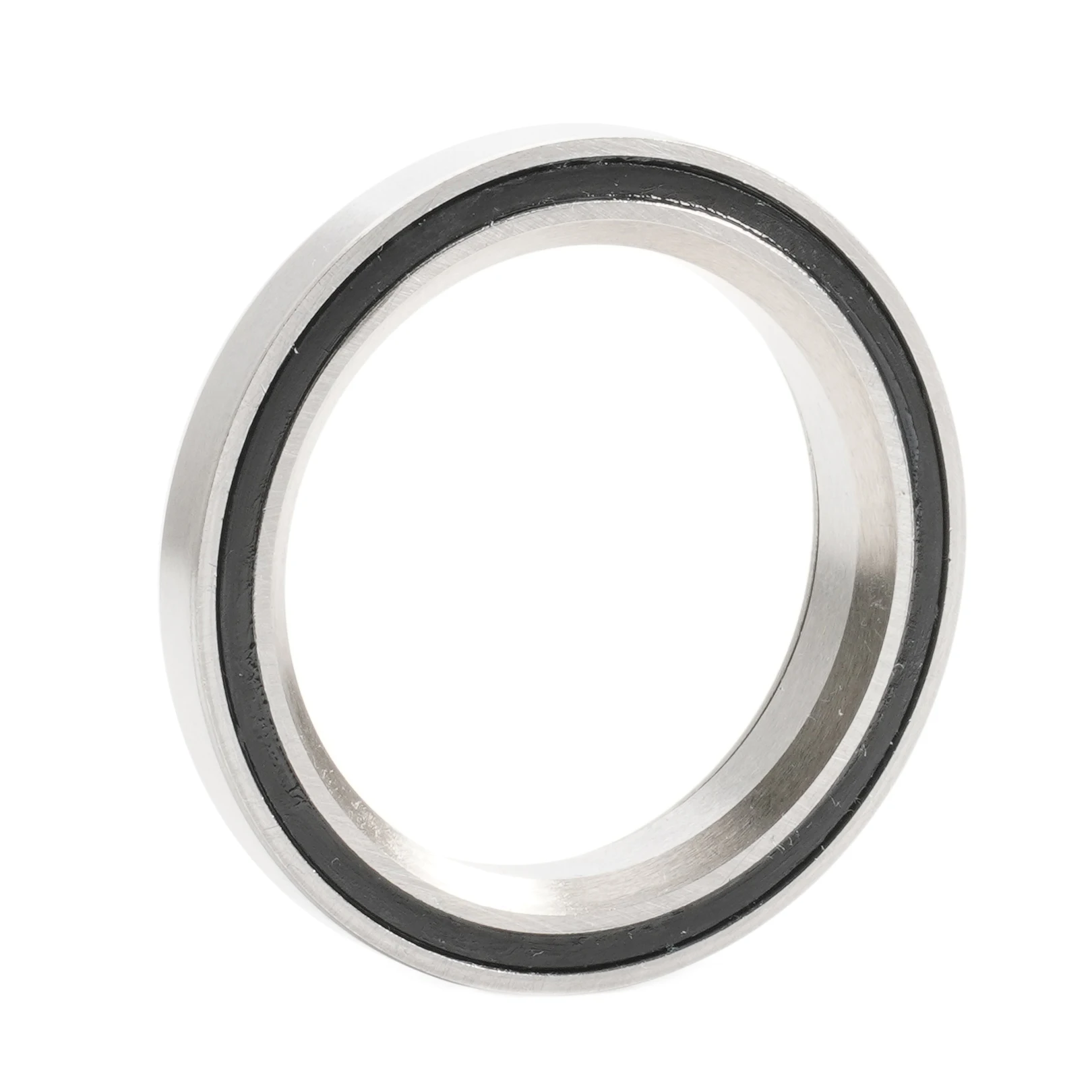

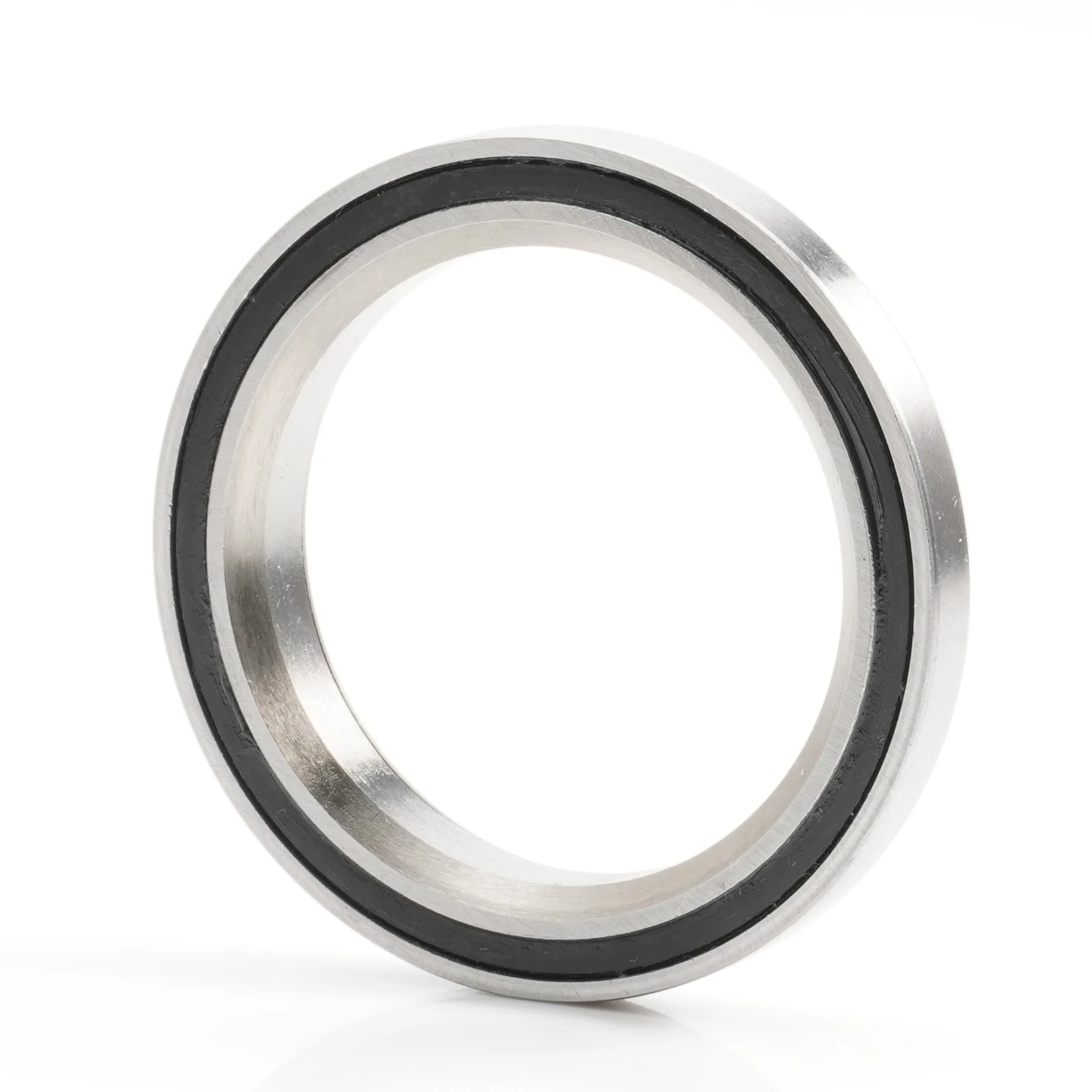

Fahrrad Headset Lager TK410 30,15*41*7mm 45/45 1PC ACB Straße MTB Schrägkontakt Fahrrad Edelstahl Lager TK410

Produktbeschreibung

Tech Brief – Bearing seal cross-section
At FUSHI we manufacture and use Angular Contact Bearings (ACB) for our headsets. We use only the best manufacturing and quality control methods available.
The manufacturing process begins with the rough shape of the bearing races being machined from high quality steel. Both the inside and outside of each race is then precision stone-ground to reach its final shape.
Computer controlled grinding equipment is used to grind each race to exact tolerances.
The races are then assembled with the balls to create the finished bearing.
Caged Bike ball bearing Description
Enable to replace original parts (crankshaft bearing, headsets, hubs).
The diameter are measured inside and outside (it's an approximate value in mm).
Item: TK410
Type: Angular Contact Bearing
Inside Diameter: 30.15 mm
Outside Diameter: 41 mm
Thickness: 7 mm
Inner Chamfer: 45 degree
Outer Chamfer: 45 degree
Qty: 1 Lot = 1PC
The color of the seal is not sure. If you mind it, please contact us before you buy the bearing.
All about Headset Bearings
1. How many different types of bearings are used in the modern day headset?
Answer: There are at least 6 different kinds of bearings used in the bicycle headset. They include; radial bearings, thrust bearings and angular contact bearings. These three types of bearings all use ball bearings. The second category of bearings is the roller bearings which include the standard roller bearing and the tapered roller bearing. Both of these use cylindrical rollers.

Produktdetails in Bildern

Produkteigenschaften

Markenname

FUSHI

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Modellnummer

TK410 Headsets Bearing TK410 30.15x41x7 mm 45°x45°

ist kundenspezifisch

Ja

Zertifizierung

NONE

Material

Wälzlagerstahl

Choice

yes

semi_Choice

yes
