2 Stück/1 Stück Elektronische Waage Wäge-Drucksensor Erfassungsmodul Gewicht TTL Serieller Anschluss RS485 Schnittstelle Modbus RTU Kommunikation

Produktbeschreibung

1.1 Overview
YR-2180 weighing A/D module, an independently developed industrial grade digital weighing A/D conversion module. Digital calibration, peeling, zeroing, zero point tracking, serial communication, etc.)
Improved hardware design and enhanced dynamic digital filtering function make the product more comprehensive and reliable, especially suitable for various industrial dynamic weighing occasions.
1.2 Performance indicators
A/D resolution
24 bit (AD chip HX710B)
A/D acquisition rate
10 times/second, or 40 times/second, (default to 10)
digital filter
Flexible setting, fast convergence and stability of weighing data, calibration, peeling, zeroing, zero tracking, etc
Static weighing accuracy
Sensor range 0-20kg, Max set to 3 decimal points, MAX display 20.000Kg
Sensor range 11-200kg Sensor, set to 2 decimal points for Most, MAX displays 200.00kg
Sensor range 201-2000kg Sensor, set to 1 decimal point for Most, MAX displays 2000.0kg
The sensor has a range of over 2000kg and cannot set a decimal point
If four 200kg sensors are used, the total range is calculated at 800kg, and the decimal point is set to 1)
communication interface
New original (TI Texas Instruments Industrial Grade) 485 chip, model: SN65HVD3082EDR
Support TTL interface or RS485 interface, standard Modbus RTU communication protocol, measured value support long shaping data/floating point
Baud rate

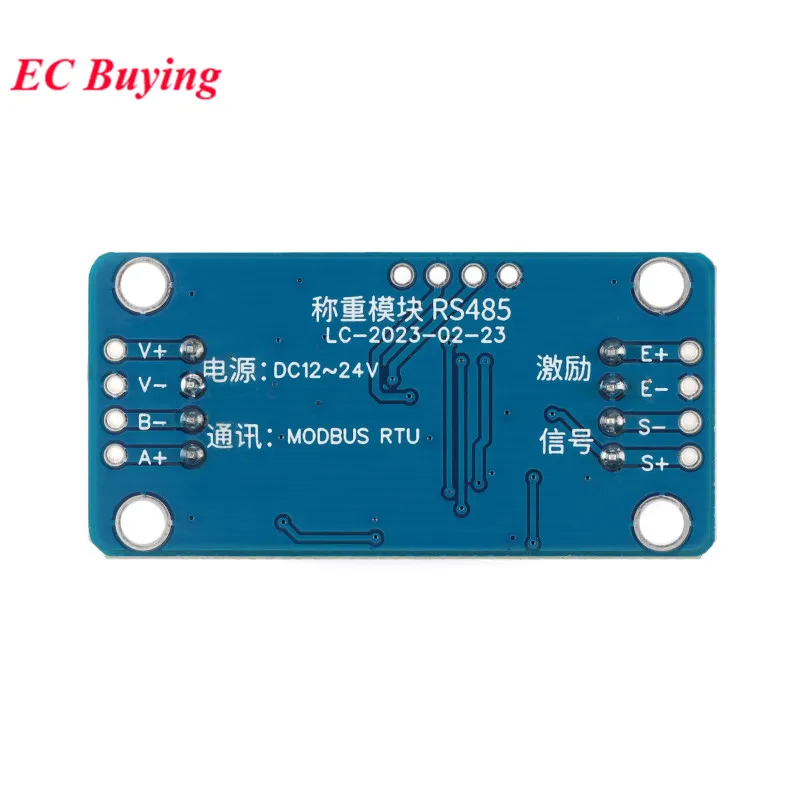

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

Weighing A/D Conversion Module

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

Module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32

Conversion Acquisition Module

Weighing amplifier transmitter RTU Communication
