3,7 V 4,2 V Ladegerät 5V 6V 9V 12V Entlader Bord DC DC Konverter Boost modul Für Diy Solar Mobile Power Ladegerät Modul DD05CVSA

Produktbeschreibung

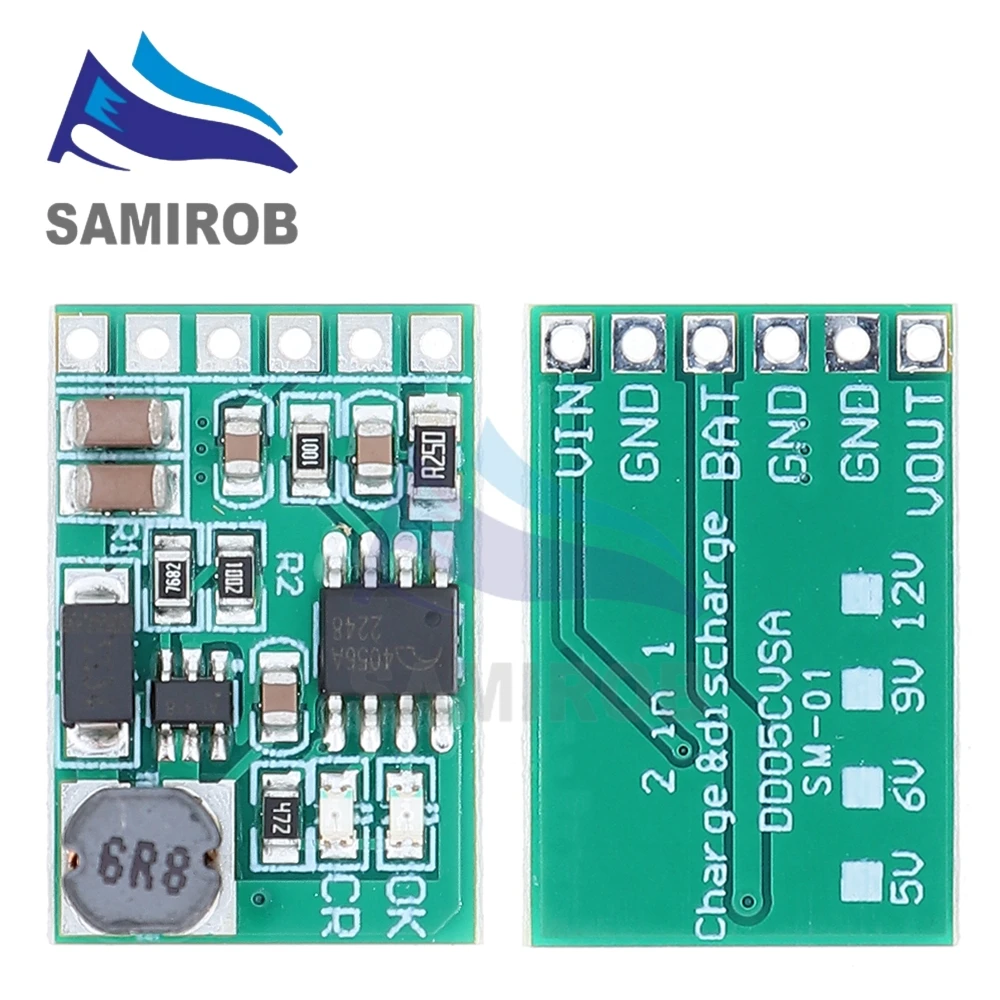

5V UPS Power Diy Board Charger & Step-up DC DC Converter DD05CVSA
Charge voltage: DC 4.5V-8V(Recommend DC 5V)
Charging current: 0-1A
Full charge voltage: 4.2V+-2%.
Led indicator: "OK" LED is fully charged OR battery failure status indicator
"CR" LED is charge status indicator
(Boost in)Discharge current: 0-2A
(Boost in)Discharge quiescent current: 450uA
(Boost in)Discharge conversion efficiency: 78%-90%
(Boost out)Output current: 0-1.2A(5V),0-1A(6V),0-0.66A(9V),0-0.5A(12V)
Operating ambient temperature: -40° to +85°
Storage temperature: -65° to +125°
Does not include pin size: 23 x 15.4 x 5.7mm
Weight: 2.2g(with Pin),1.8g(no Pin)
Applications
Battery powered equipment
Lithium Battery 18650 14500
Mobile phone diy
UPS power supply equipment diy
Solar charging

Produktdetails in Bildern

Produkteigenschaften

Markenname

SAMIORE ROBOT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

DC 5V/6V/9V/12V

Verlustleistung

1-50W

ist kundenspezifisch

Ja

Betriebstemperatur

40+85

Anwendung

Computer

Paket

SMD
