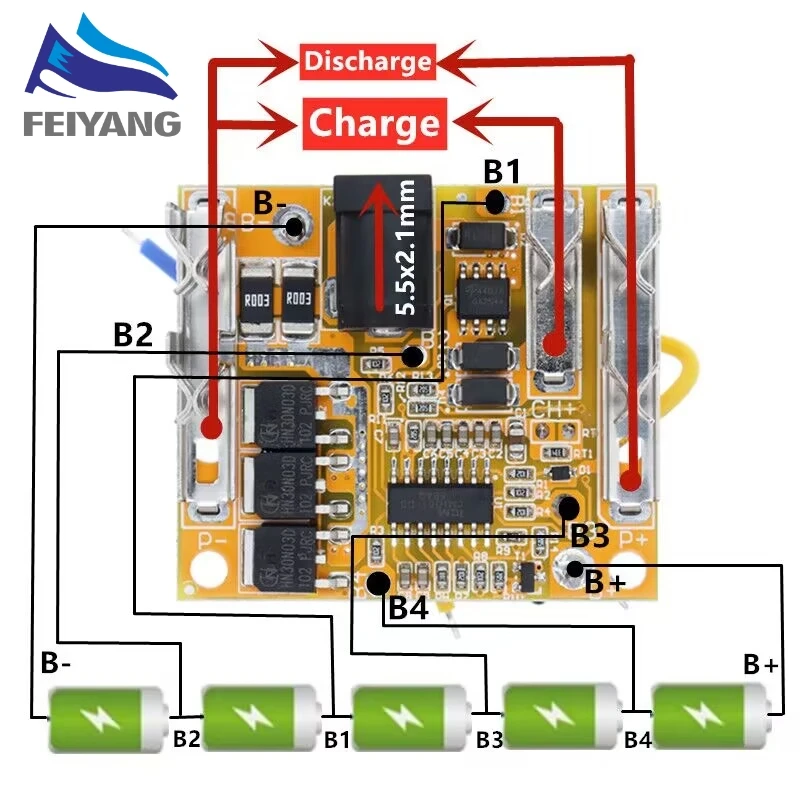

5S 18V 21V 20A Batterie Lade Schutz Bord Li-Ion Lithium-Batterie Pack Schutz Platine BMS Modul für Power Tools

Produktbeschreibung

Features
The protection board is for 5 series Li-ion batteries, mainly used for electric power tools.
It uses special IC for 5S lithium batteries as processor to detect real-time voltage, charge and discharge current and ambient temperature of each battery.
Stable various protective functions for charging and discharging, such as overcharge protection, over-discharge protection and short circuit protection.
Low power consumption,the working current is about 25uA and quiescent current is about 6uA.
Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries.
Specifications
Charge Voltage:19/21V
Single Cell Charge Voltage:3.8/4.25V
Continuous Discharge Current:8-20A
Overcharge Single Cell Detection Voltage:3.85-4.25V
Overcharge Protection Delay:1S
Overcharge Single Cell Recovery Voltage:3.75-4.13V
Overcharge Protection Release Delay:1mS
Over-discharge Single Cell Detection Voltage:2-2.8V
Over-discharge Protection Delay:1S
Over-discharge Single Cell Recovery Voltage:2.5-3.0V
Over-discharge Protection Release Delay:100±20mS
Over-current Detection Voltage:0.1-0.4V
Over-current Detection Current:30±5A

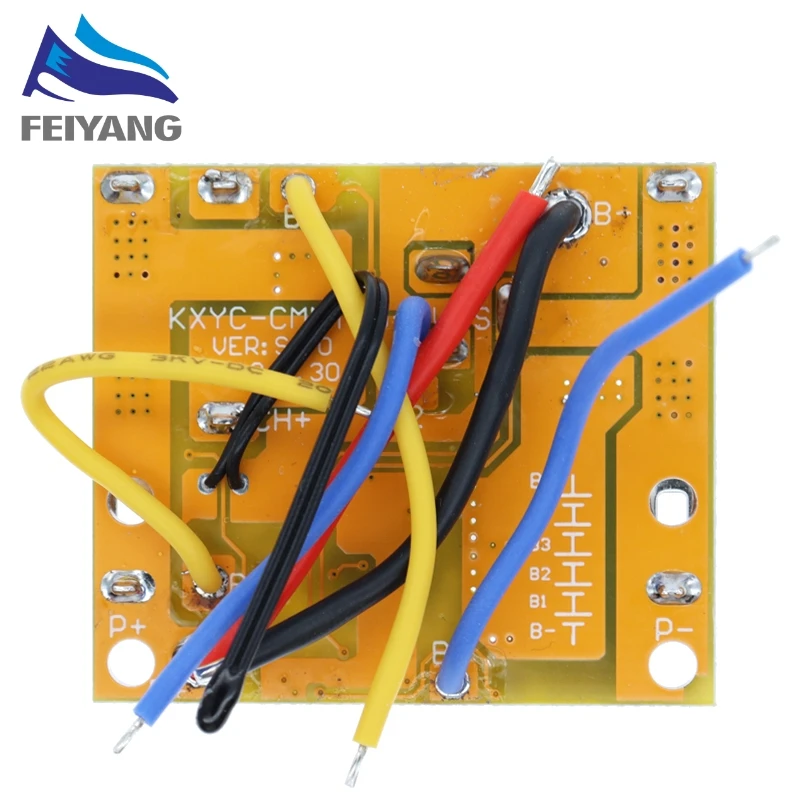

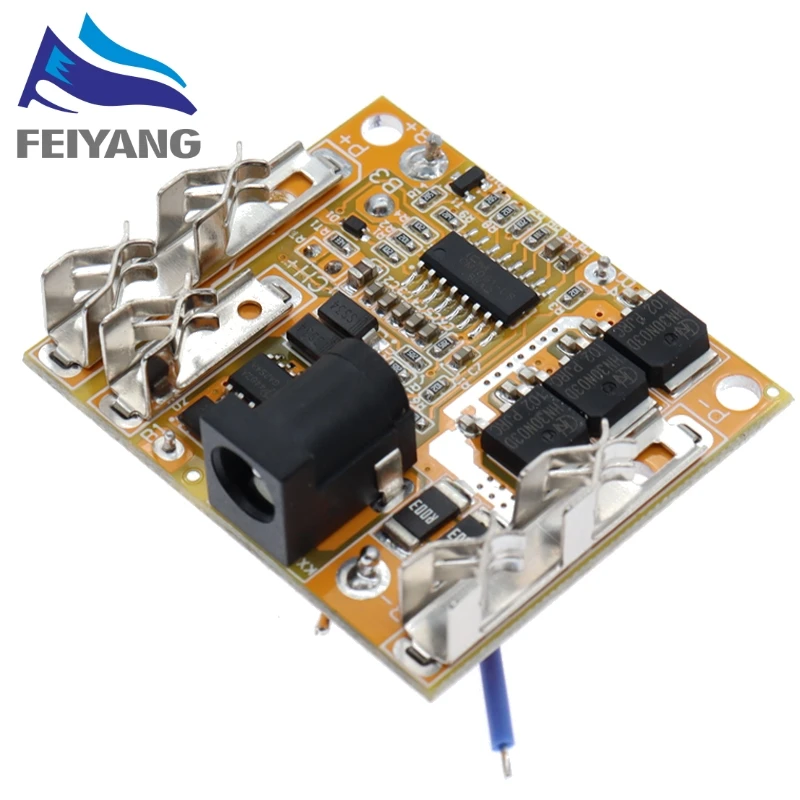

Produktdetails in Bildern

Produkteigenschaften

Markenname

SAMIORE ROBOT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

20A

Verlustleistung

18.5V

ist kundenspezifisch

Ja

Betriebstemperatur

21V

Anwendung

Computer

Paket

SMD
