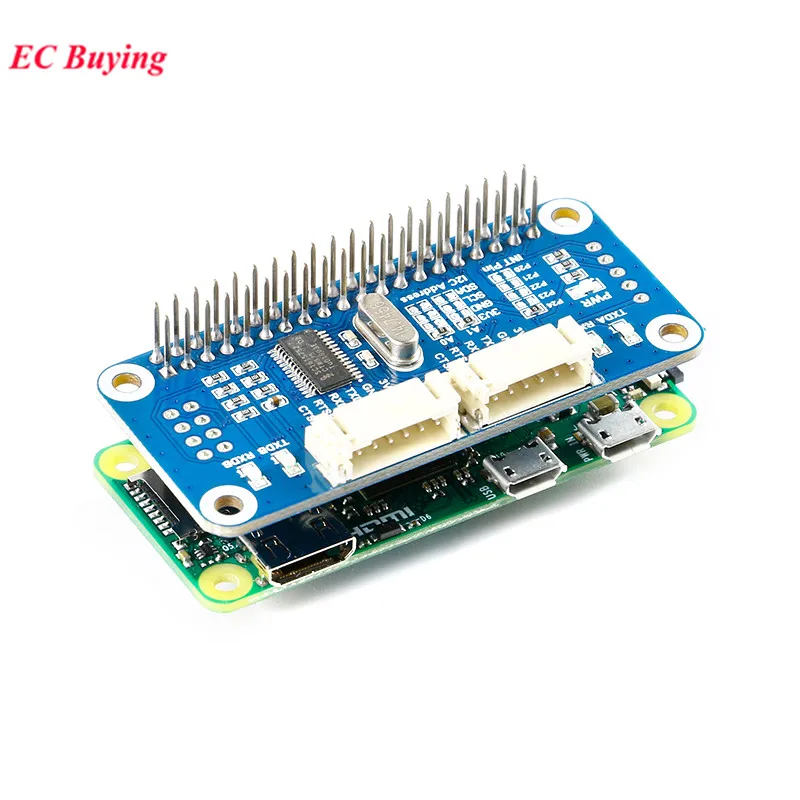

2-Kanal-UART-Seriell-Port-Modul für Raspberry Pi 4B/3B+/Zero W Serial Port Expansion Board Onboard SC16IS752 I2C-Schnittstelle

Produktbeschreibung

A serial port expansion board designed for the Raspberry Pi. It can expand 2 serial port (UART) channels and 8 programmable IOs through I2C.
The Raspberry Pi only leads to one serial port. If it is debugged as a serial terminal, it cannot be connected to other serial devices.
I am tailored to solve the troubles of the Raspberry Pi serial port.
Characteristics
Based on Raspberry Pi interface design for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
Onboard SC16IS752, can expand 2 serial ports and 8 programmable IOs through I2C, without occupying extra pins
By changing the address jumper, you can access up to 16 modules at the same time, that is, expand 32 serial ports.
Multiple indicators on the board for easy viewing of the working status of the extended serial port
Reserve the I2C control interface to facilitate access to other main control boards.
Provide a complete supporting information manual (providing C and python routines/user manuals)
[My parameters]
Working voltage: 3.3V
Expansion chip: SC16IS752
Control interface: I2C
Product size: 65mm × 30mm
Through hole diameter: 3.0mm

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

module
