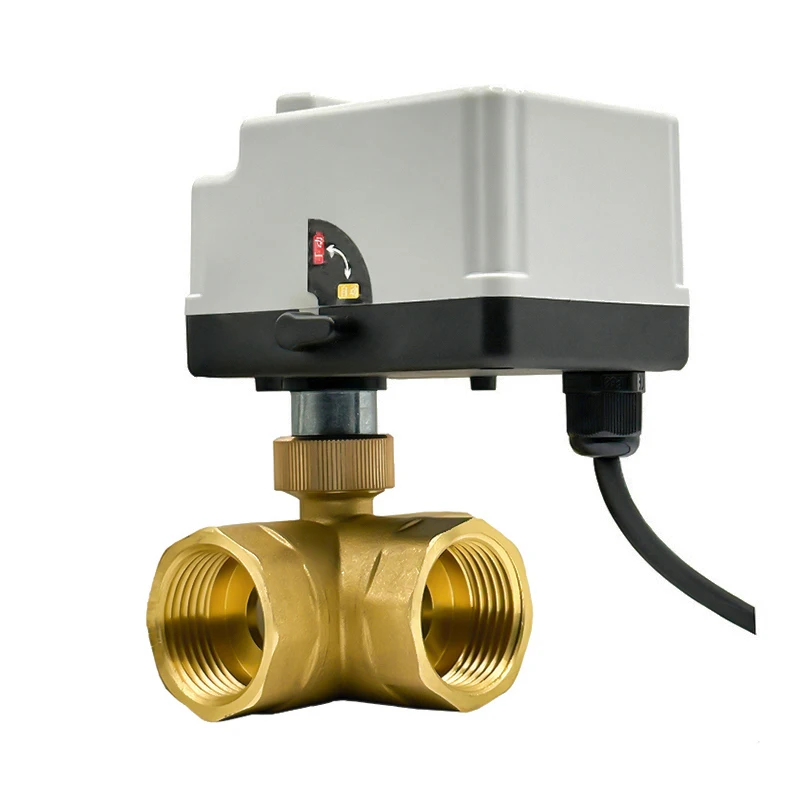

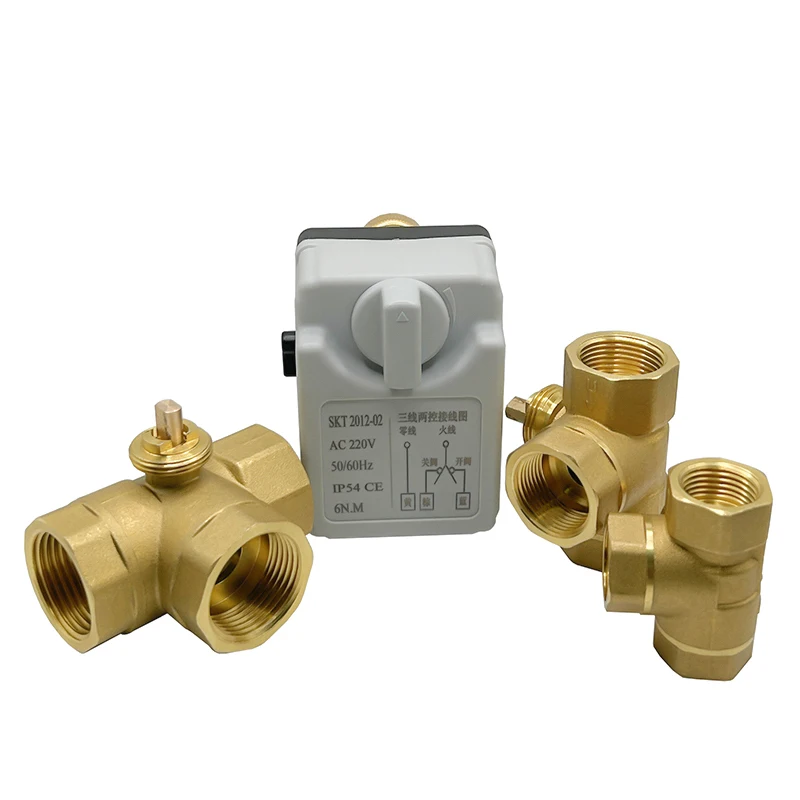

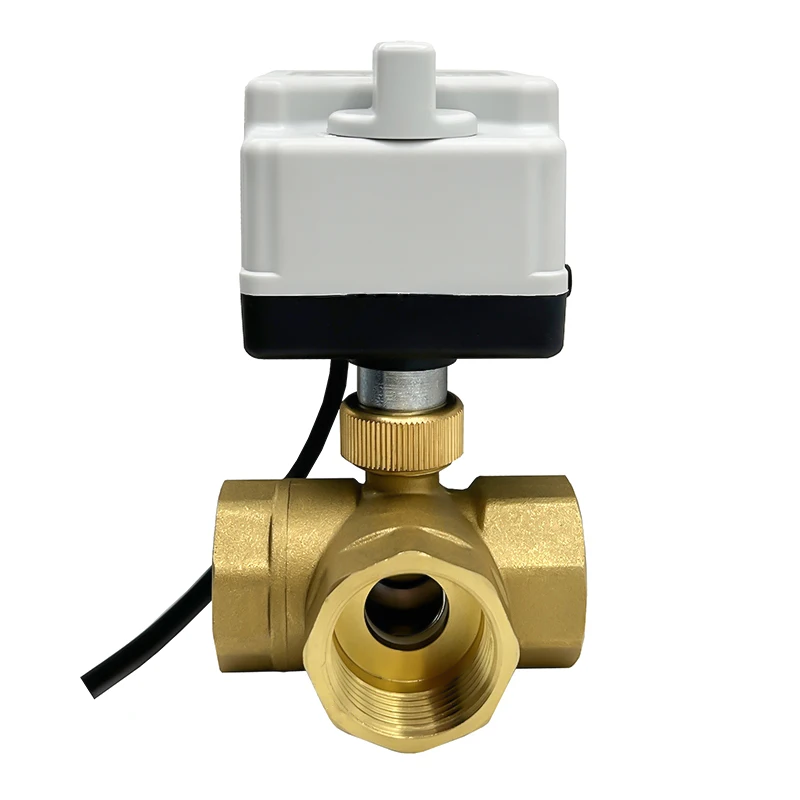

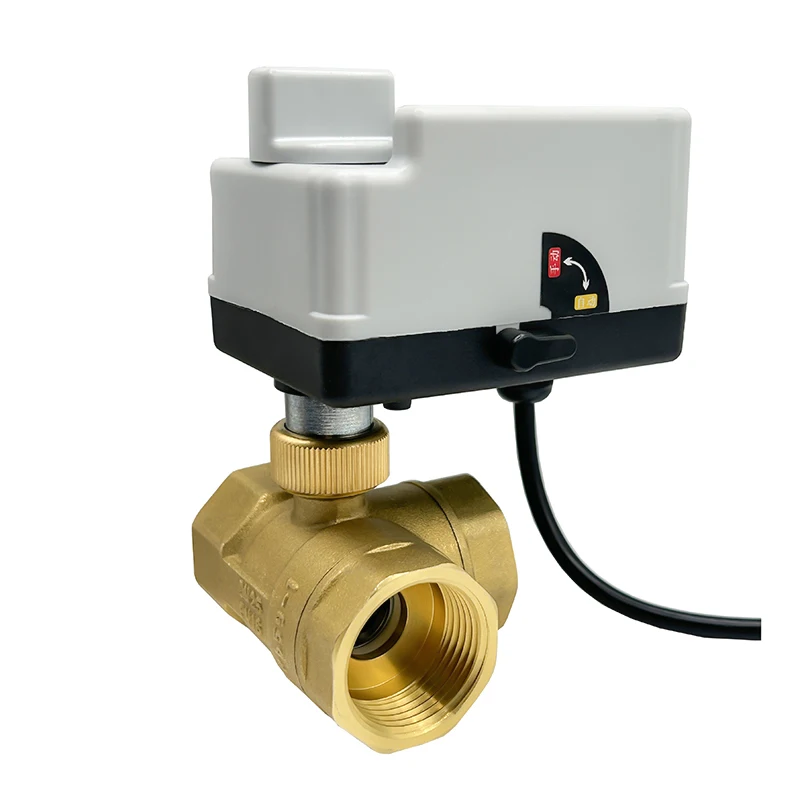

DN15-DN50 3-Wege-Motorisierter Kugelhahn aus Messing, 3-Draht, 2-Steuerung, elektrische Stellantriebe mit manuellem Schalter, 220 V, 12 V, 24 V

Produktbeschreibung

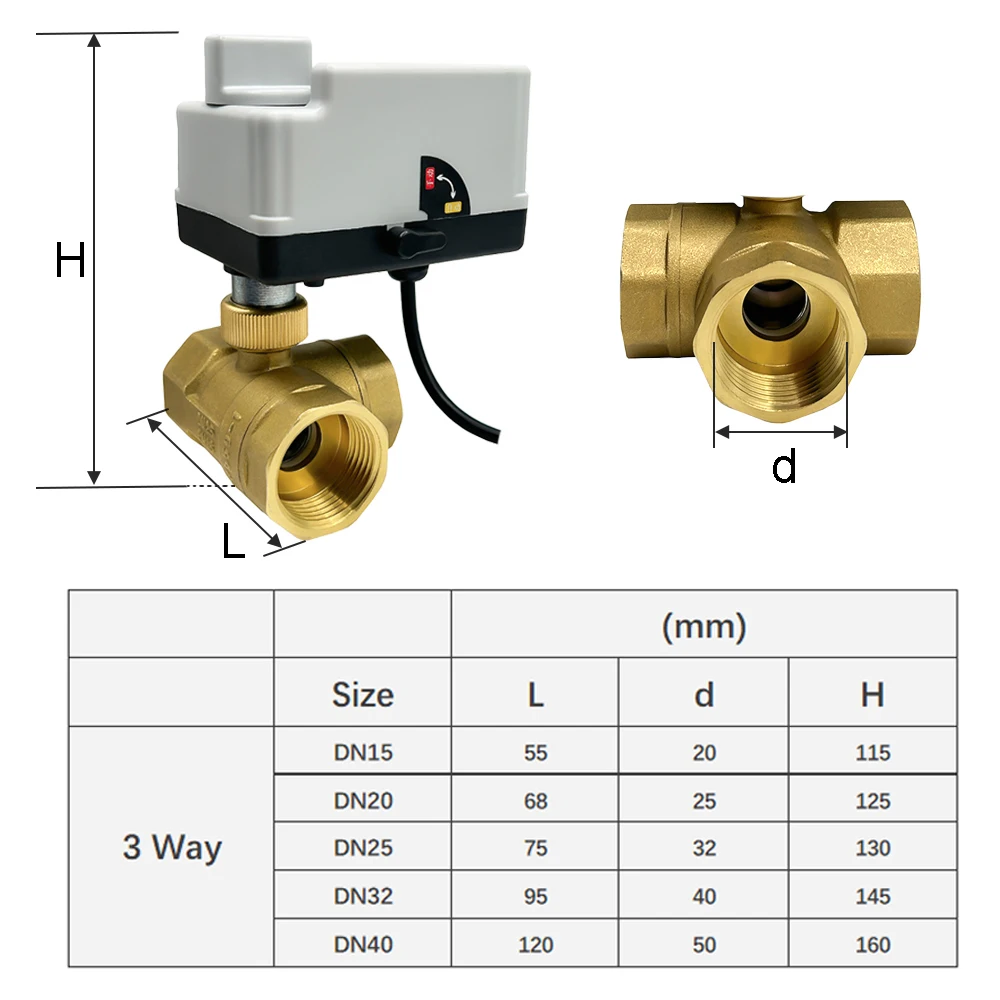

Dimension: DN15 DN20 DN25 DN32 DN40 DN50

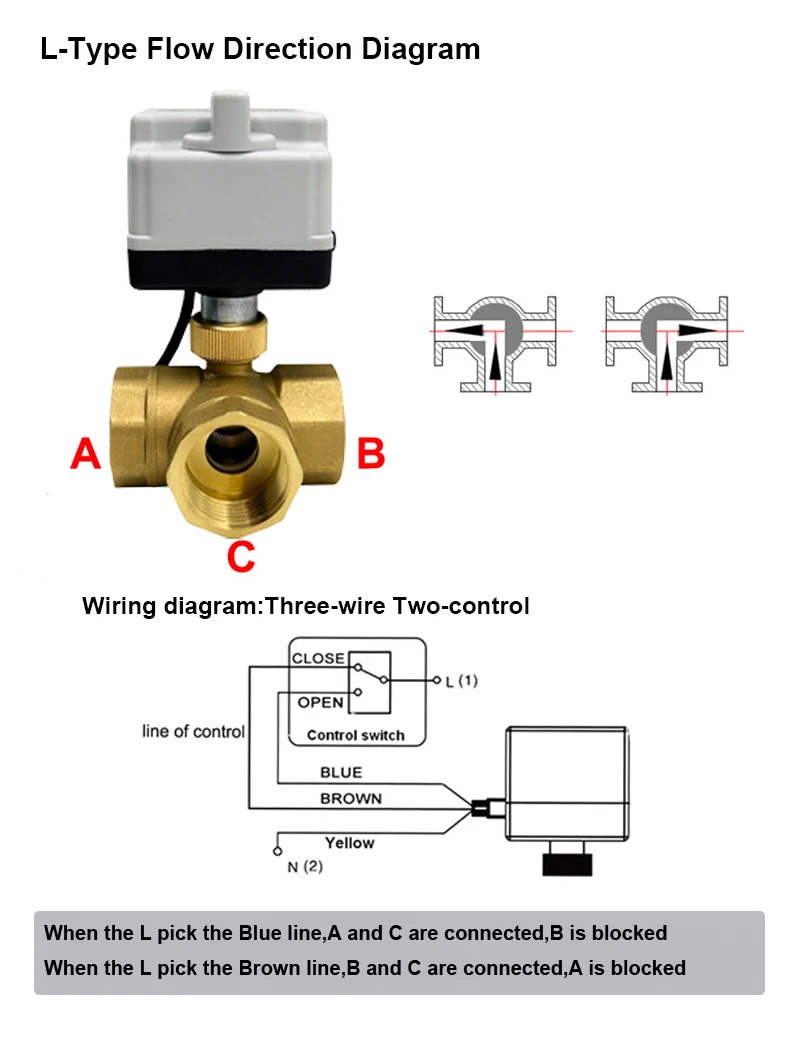

Feature: 3-Wire 2-Control
Way: 3 Way
Open/Close Time: 10-25 seconds
Maxmum Working Pressure: 1.6 MPa / 232psi
Medium: Water, Air, Oil
Voltage: AC220V/DC12V/DC24V
Power: 6W (Only when the valves open and close

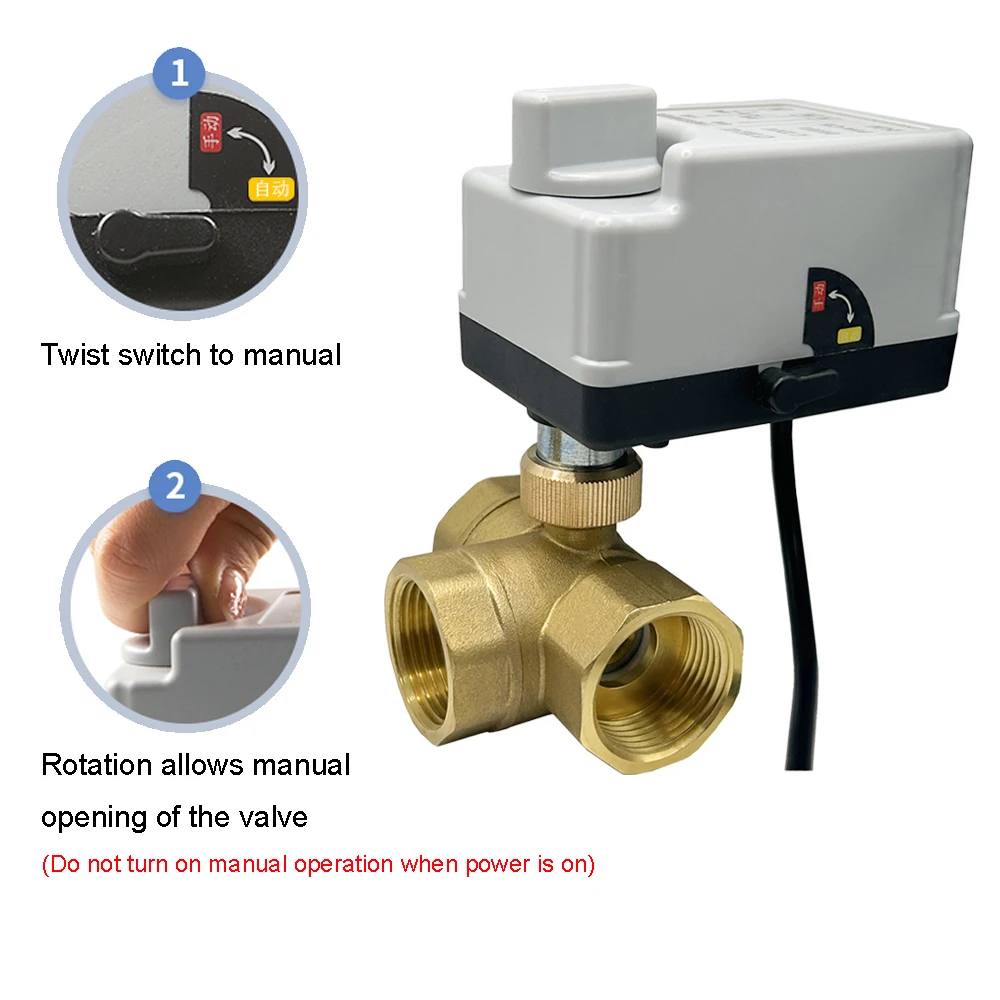

Operation: Motor and hand(with manual switch function)
Life Time: 100000 times
Material: Brass,ABS plastic
Seal Material: EPDM & PTFE
Enviroment Temperatur:0°~65° in Celsius
Medium Temperatur: 0°~95° in Celsiu
Protect Class: IP 54
Pay attention to a few points!

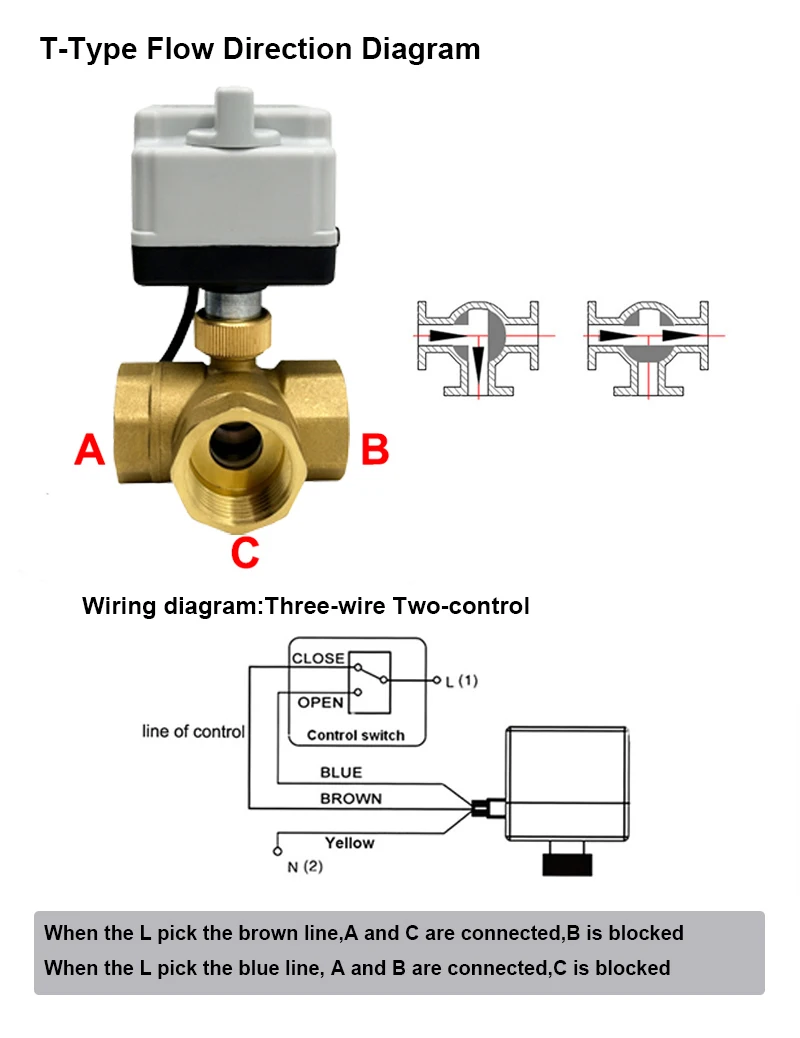

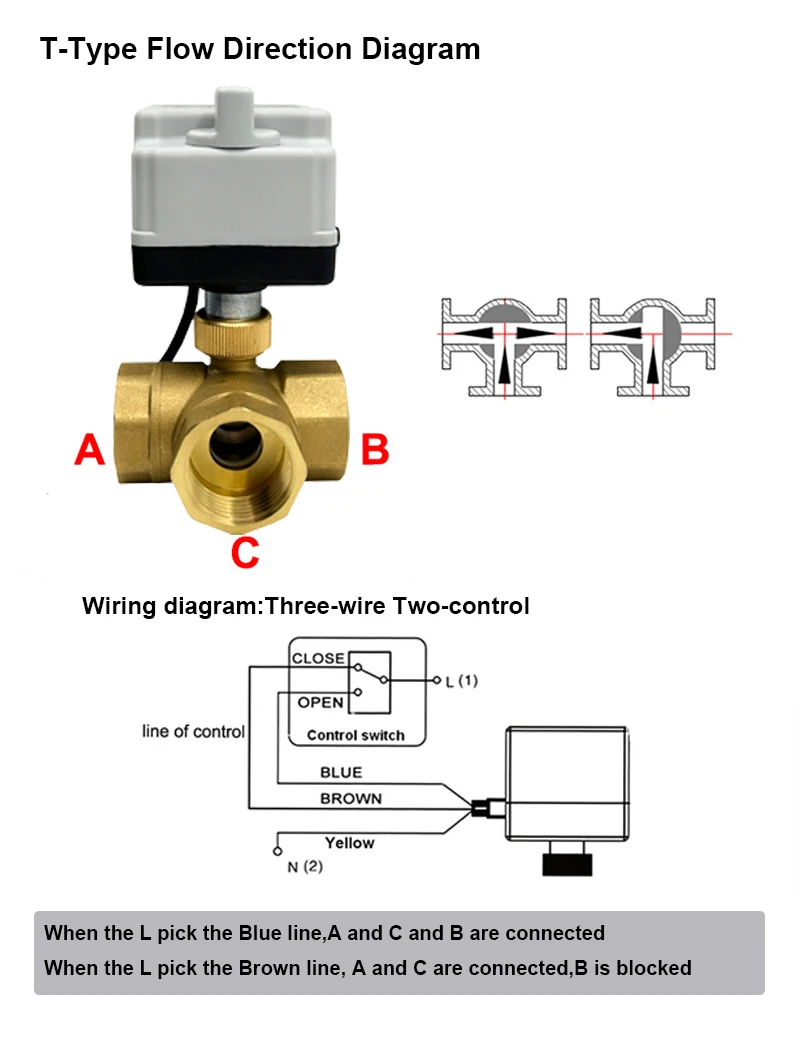

1. The valve opening and closing line cannot be charged at the same time, otherwise the motor will be damaged or the work will not be normal!
2. It is not allowed to switch multiple switches in parallel at the same time, otherwise they will be connected in series and abnormal.
3. It is not waterproof and can not be used outside or in humid environment.
This Valve used for heating systems and air-conditioning fan coil systems on-off controlled by the valve and actuator components,actuators driven by a rotary valve ball 90 percent ofmovement.Synchronous motor driven actuator, Built-in limit contacts, enabling the valve in the fully open or fully closed off, the action and stability.

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Struktur

Ball

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Stromquelle

Wechselstrom

Standard oder Nichtstandard

Standard

Medien

Wasser

Material

Messing

Temperatur der Medien

Normale Temperatur

NC oder NO

NORMALERWEISE GESCHLOSSEN

Druck

Niedriger Druck

Aktuatormodus

Mit Handbuch und Anleitung

Ist ein intelligentes Gerät

no
