1/2" 3/4" 1 Zoll Messing Hall Flow Sensor Wasserdurchflusssensor Durchflussmesser Steuerung Flüssigkeitssensorschalter

Produktbeschreibung

Description
The water flow sensor is mainly composed of a brass valve body, a water flow rotor assembly and a Hall sensor. It is installed at the water inlet end of the water heater to detect the water flow rate. When the water passes through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The device judges the size of the water flow and regulates it.
Features
1. This product is light and handy in appearance, small in size, and easy to install.
2.The impeller is inlaid with stainless steel beads, which is permanent and wear-resistant.
3.The sealing ring adopts the structure of upper and lower force and never leaks.
4. The Hall element is imported with original packaging and is encapsulated with potting glue to prevent water ingress and never age.

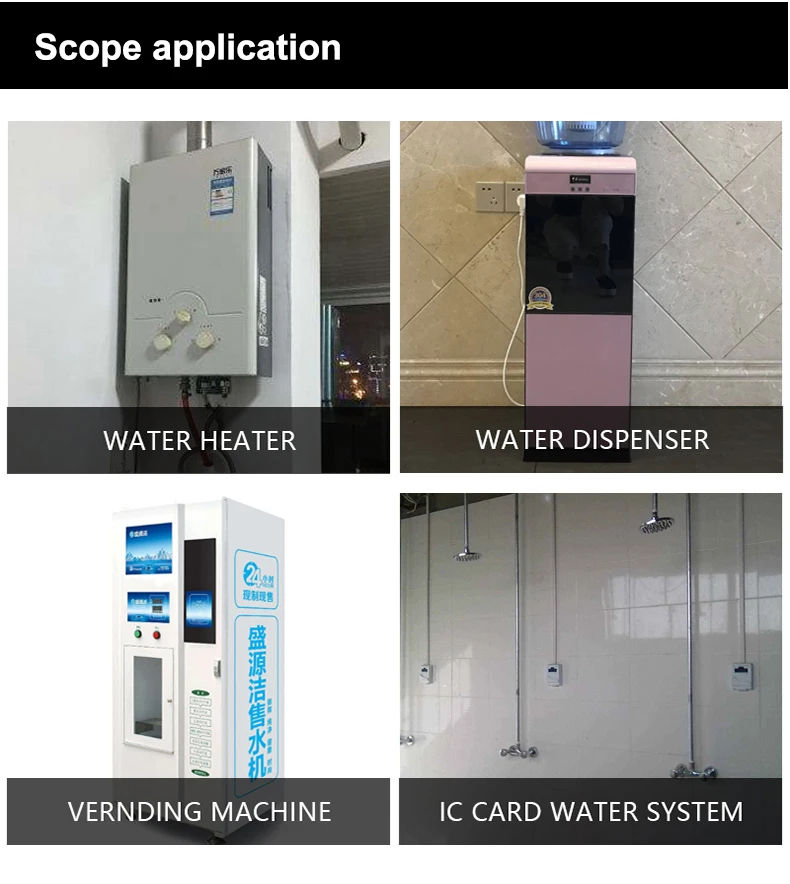

5. Wide application scenarios, widely used in water heaters, drinking fountains, water vending machines, campus credit card machines
Specifications
Interface size: G1/2, G3/4, G1
Working voltage range: DC5～18V
Water pressure resistance: ≤1.75MPa
Output pulse high level: >DC4.7V (input voltage DC 5V)

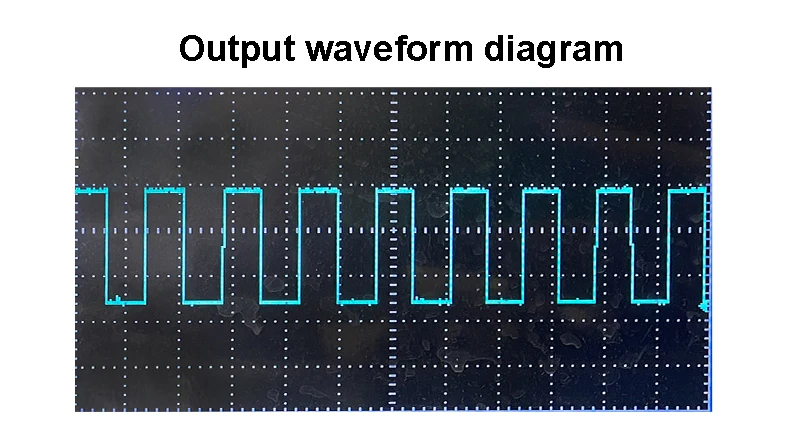

Output pulse duty cycle: 50%±10%
Insulation resistance: >100MΩ
Tightness: Close each hole, add 1.7Mpa water pressure test for 1 minute, no leakage and deformation
Flow pulse characteristics

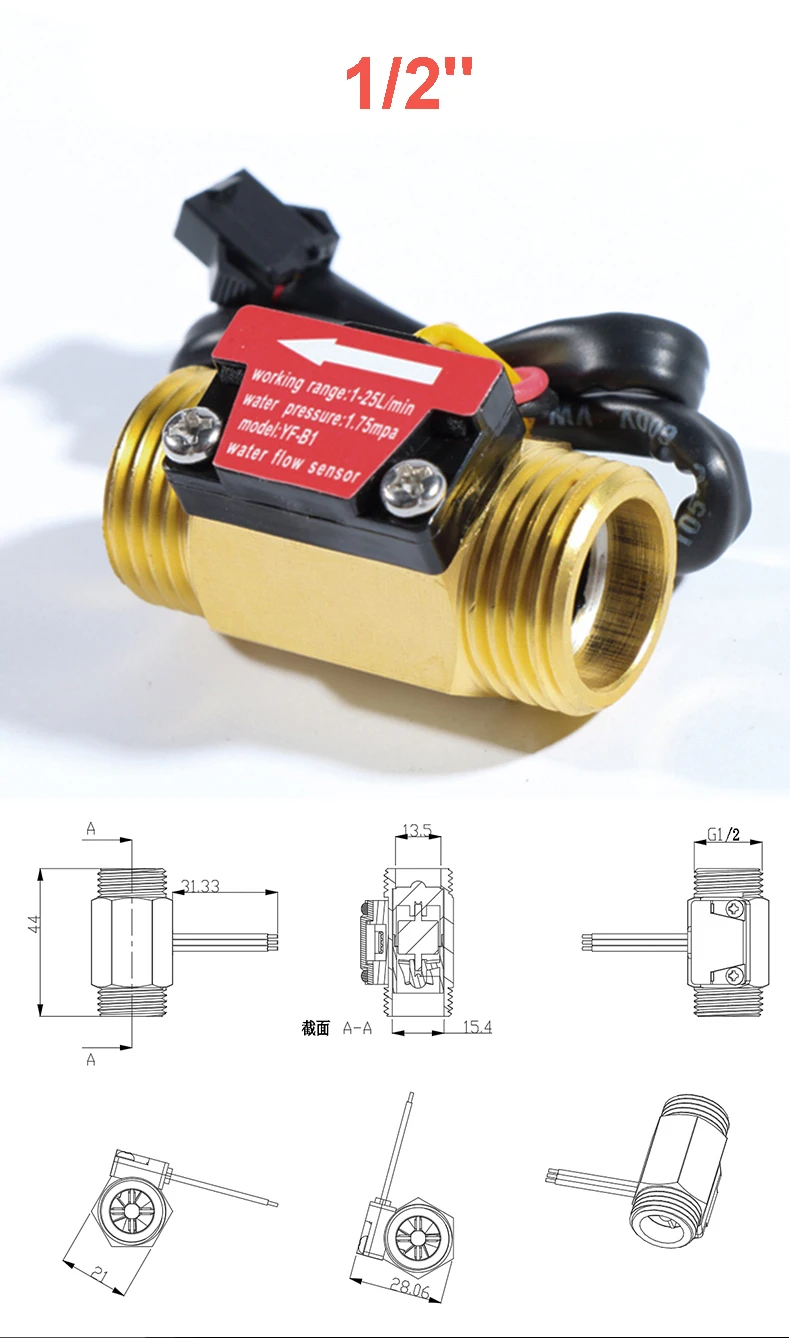

1/2'' (11 *Q)Q=L /Min+ 3%,That is 660 pulses per liter of water

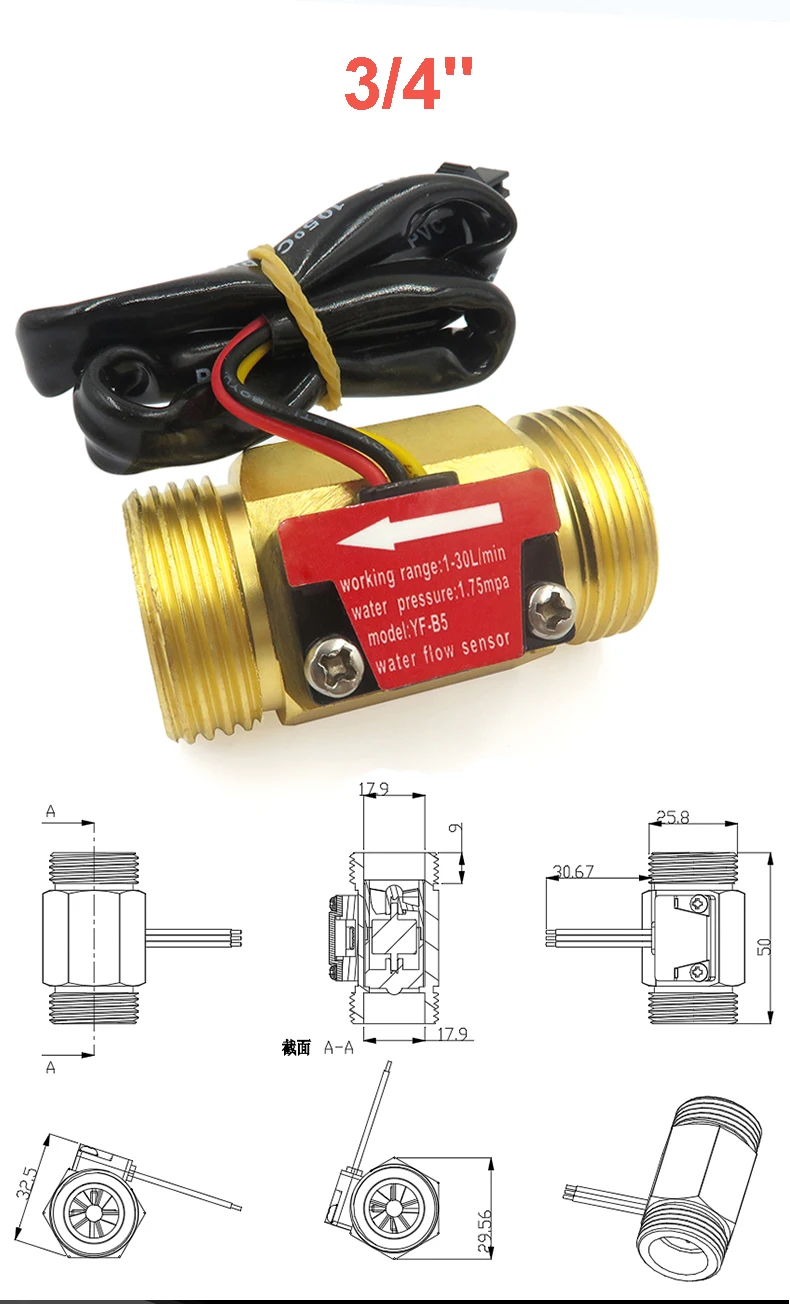

3/4'' (6.6 *Q)Q=L /Min+ 3%,That is 396 pulses per liter of water

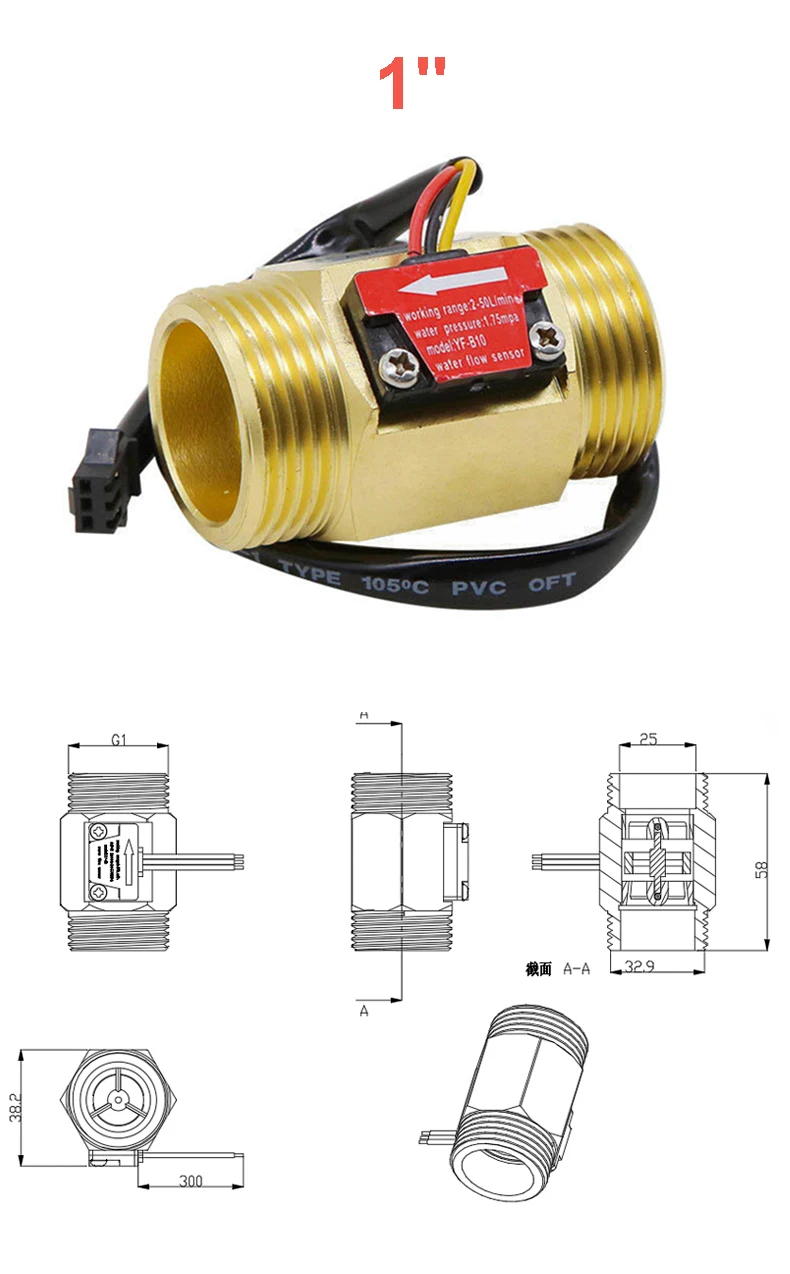

1'' F=(8*Q-4)±5%，That is 476 pulses per liter of water;(F is frequency, Q is L/min) Error±5%

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Struktur

Ball

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Standard oder Nichtstandard

Standard

Medien

Wasser

Material

Messing

Temperatur der Medien

Normale Temperatur

NC oder NO

NORMALERWEISE GESCHLOSSEN

Druck

Niedriger Druck

Aktuatormodus

Mit Handbuch und Anleitung

Ist ein intelligentes Gerät

no

Choice

yes

semi_Choice

yes
