10 "1U Leere Leere Patch Panel 12 Port Rack Mount Management Unterstützung Für RJ45 RJ11 RJ12 Keystone Jack Installation cat5e Cat6A

Produktbeschreibung

>>>The Information of Product
Product Name: 12-Port Module Mounted Blank Patch Panel CH-YS-133
Product Material: 1U Thick cold-rolled steel plate for industrial use
Front Panel: Dual layers - Nickel Plating Sheet Steel + Black Color Coating ABS
The diameter of each hole: 1.4CM*1.75CM, the width of the tail of the module must not be greater than 1.6CM
Size: length (25.4cm) x height (4.5cm) x depth (10.8cm-including bracket)
Weight: 350g
Color: Black
Suitable for installation on a 10-inch (25.4CM) rack or cabinet.
It is suitable for standard network and telephone module installation (CAT5E super five categories, CAT6 six categories, CAT3 telephone modules).
Note
1. Due to the different pitch of the module mounting frame, the pitch of the module mounting frame is relatively small, so it is not suitable for the installation of wider modules.
2. Compatible with various LINKWAY modules
>>>The Feature of Product
The front panel is made of black ABS fireproof material, and the rear module mounting frame is plated with nickel on the surface of the steel frame to prevent oxidation.

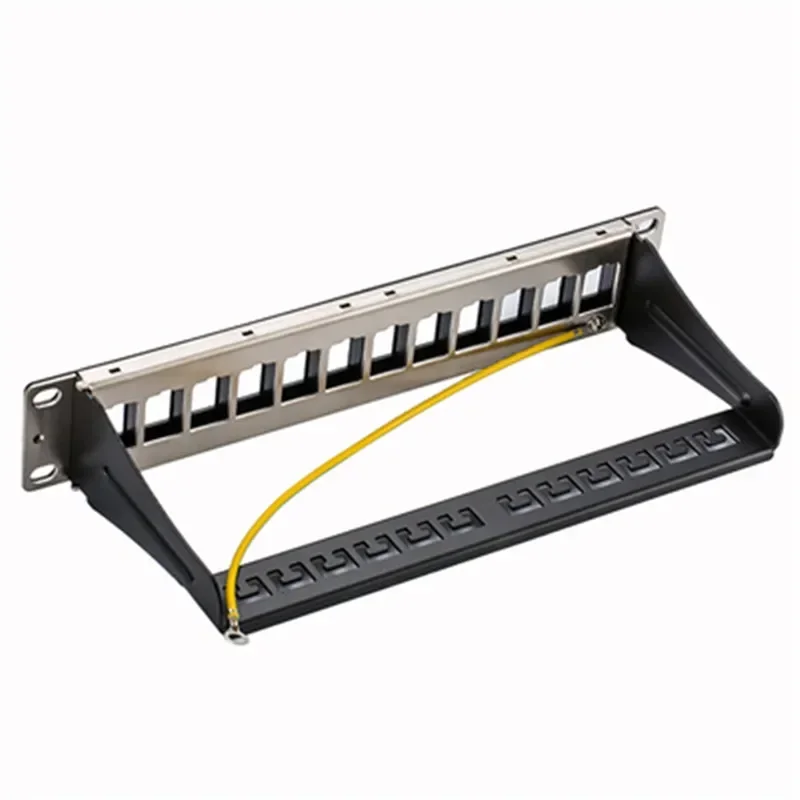

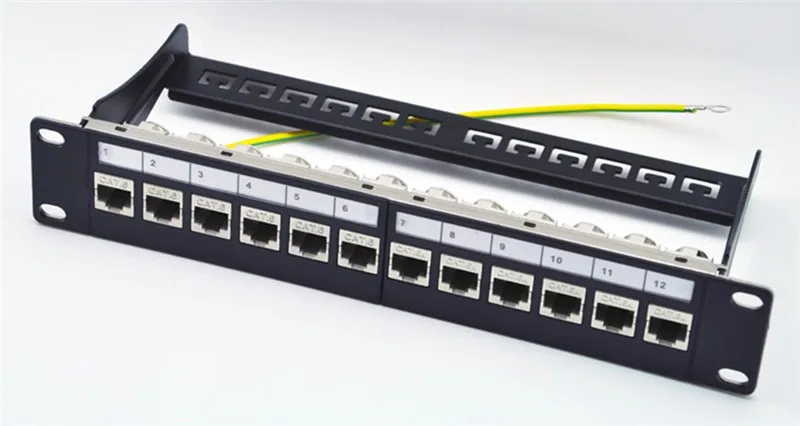

12 port Unload Patch Panel 10" Rack Mount for RJ45/RJ11/RJ12 Keystone Jacks Installation.
Specially design removable cable management support bar, convenient for managing your cabling.

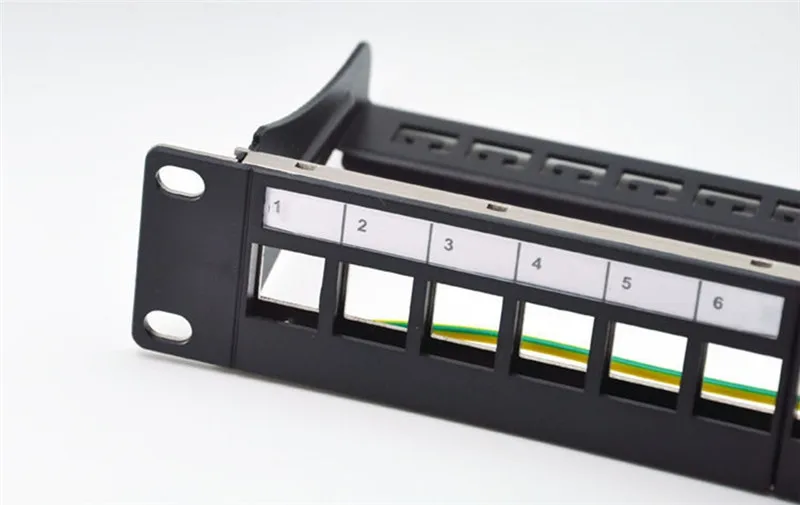

Front Panel with Port Numbering Sticker - Easy to indicate each terminal port and withdrawable at anytim
>>>You Will Get

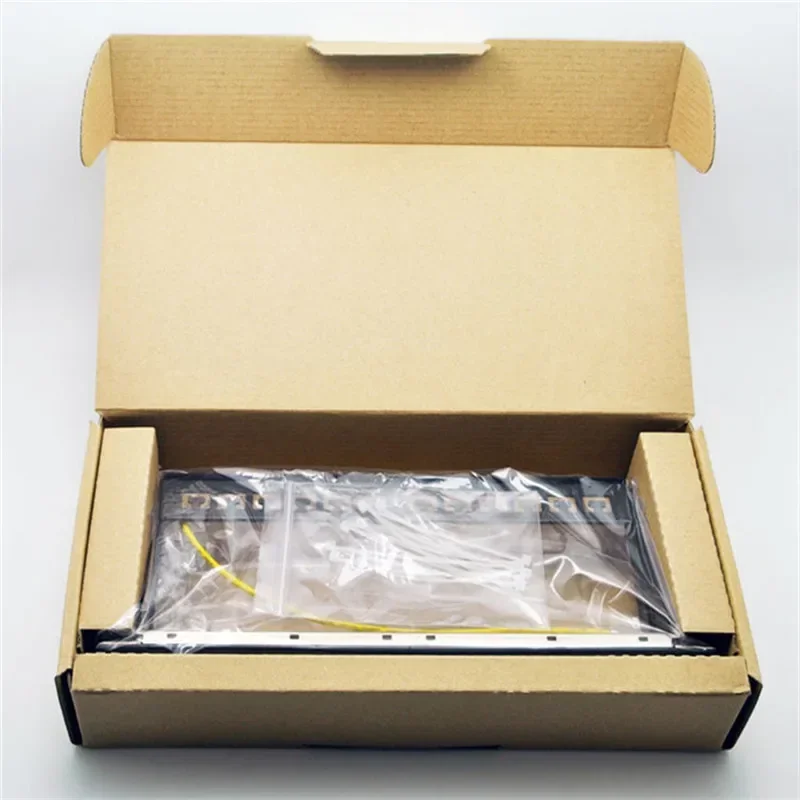

1pc x 12-port patch panel

Produktdetails in Bildern

Produkteigenschaften

Markenname

HEDANP

Artikeltyp

Rj45-wandplatte

Geschlecht

Weiblich

Material

andere

Stromquelle

Sonstiges

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Modellnummer

12-Port Blank Patch Panel

Zertifizierung

RoHS-Konformität

Product Number

CH-YS-133

Product Name

12-Ports Blank Patch Panel

Type 1

12 Ports Rack Mount

Suitable for

For RJ45/RJ11/RJ12 Keystone Jacks Installation

Length

10 Inch (25.4cm)

Height

4.4 cm (1U)

Depth

10.5cm

Color

Black

Choice

yes

semi_Choice

yes
