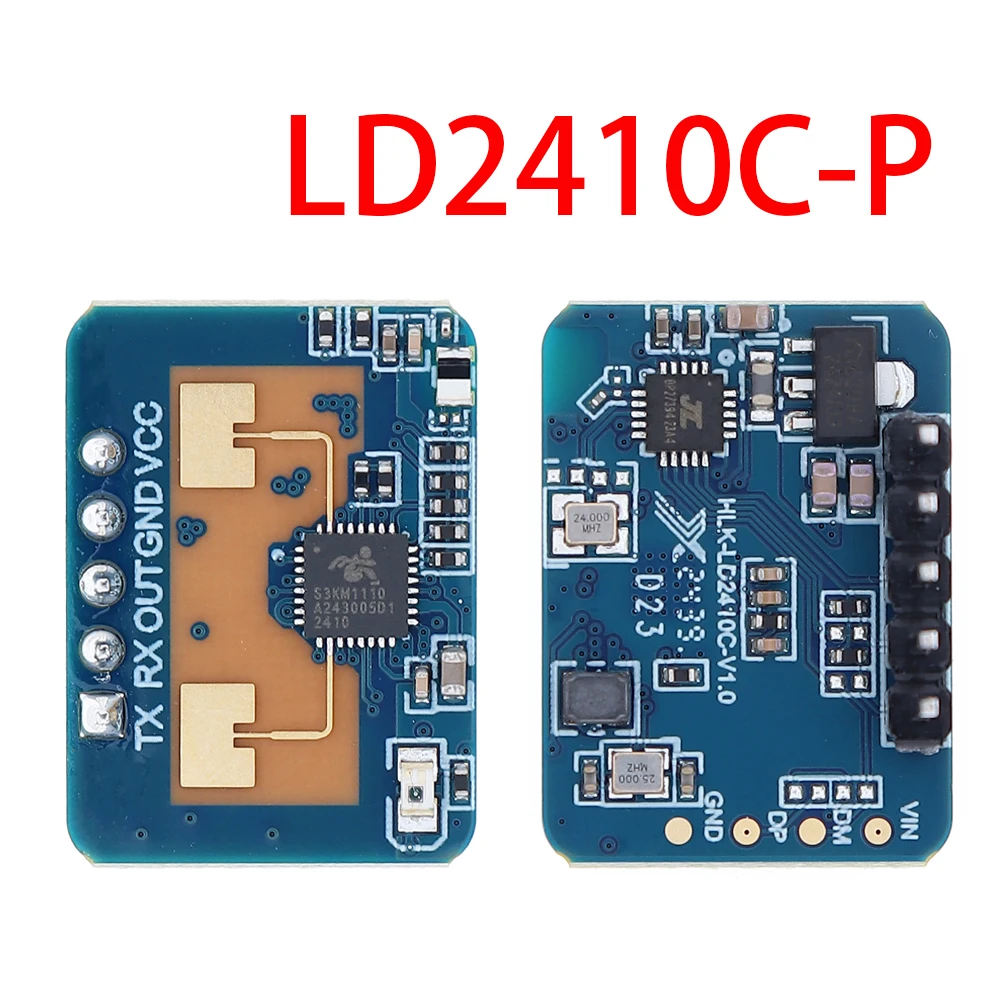

HLK-LD2410C 24G mmWave FMCW Millimeterwelle 5M menschlicher Anwesenheitsstatus Radarsensor Bewegungserkennungsmodul hohe Empfindlichkeit

6,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 18–25 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Please help to download from below link
HLK-LD2410
Recomend kit
1. Product introduction
HLK-LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave, to detect human targets in the set space, combined with radar signal processing, accurate human body induction algorithm, to achieve high sensitive human presence status sensing, which can identify the human body in motion and stationary state, and can calculate auxiliary information such as the distance to the target.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. Farthest sensing distance up to 6 meters, distance resolution 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range and sensing in different intervals sensitivity and unmanned delay time, etc., to adapt to different specific application needs.

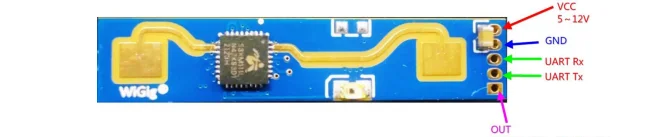

Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
2. Product Features
Plug and play, easy assembly
The longest sensing distance is up to 5 meters
Large detection angle, coverage up to ±60 degrees
Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
Multi-level intelligent parameter adjustment to meet the needs of scene changes

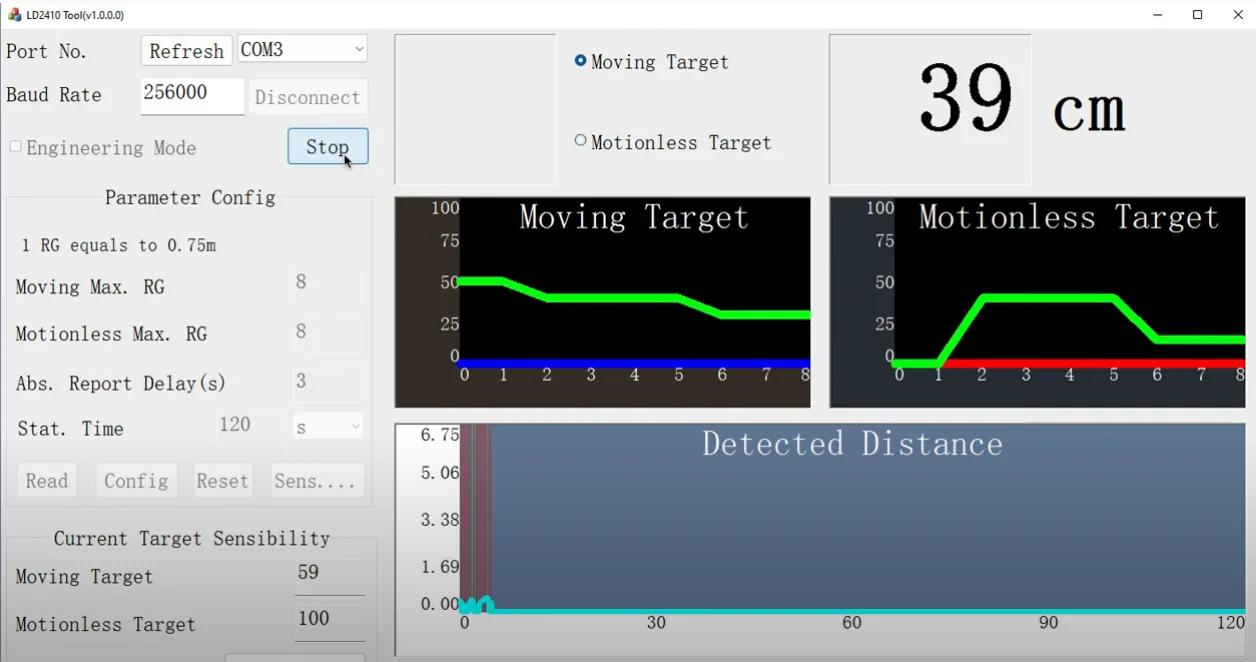

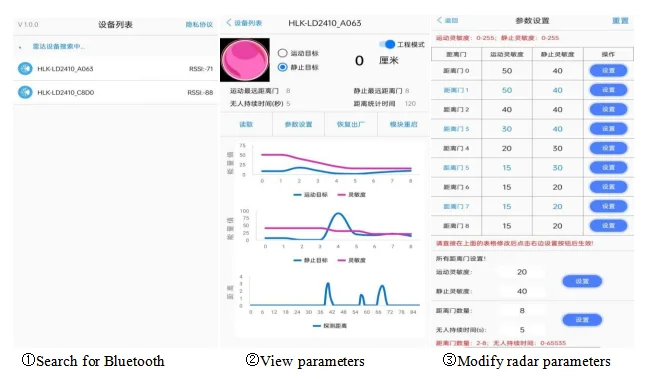

Visual debugging and configuration tools

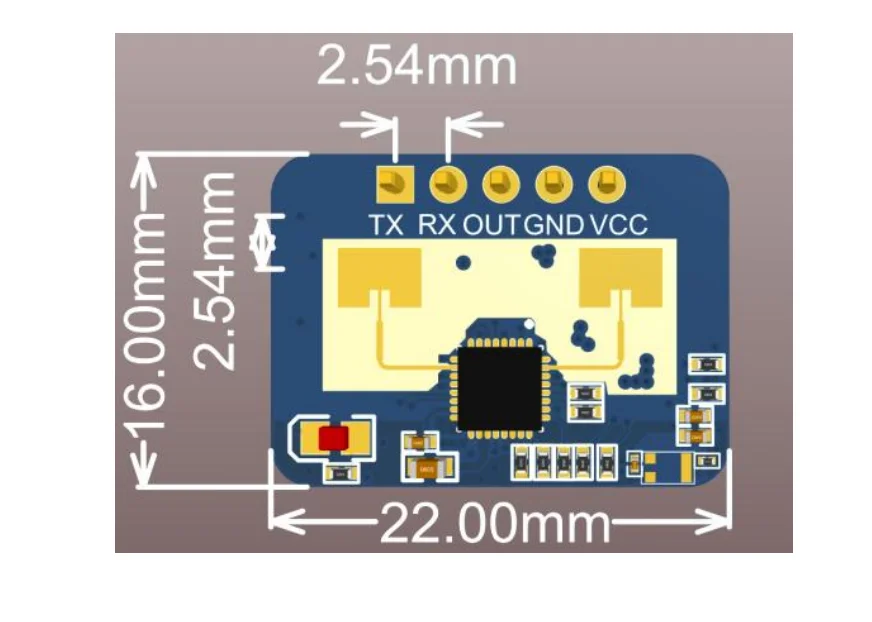

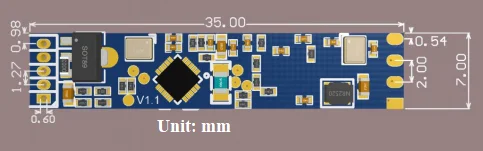

Small and simplified, the minimum size is only 7mmx35mm
Supports various installation methods such as ceiling hanging and wall hanging
24GHz ISM band, compliant with FCC and CE spectrum regulations
5～12V wide voltage power supply
The ultimate cost-effective choice
3. Benefits
