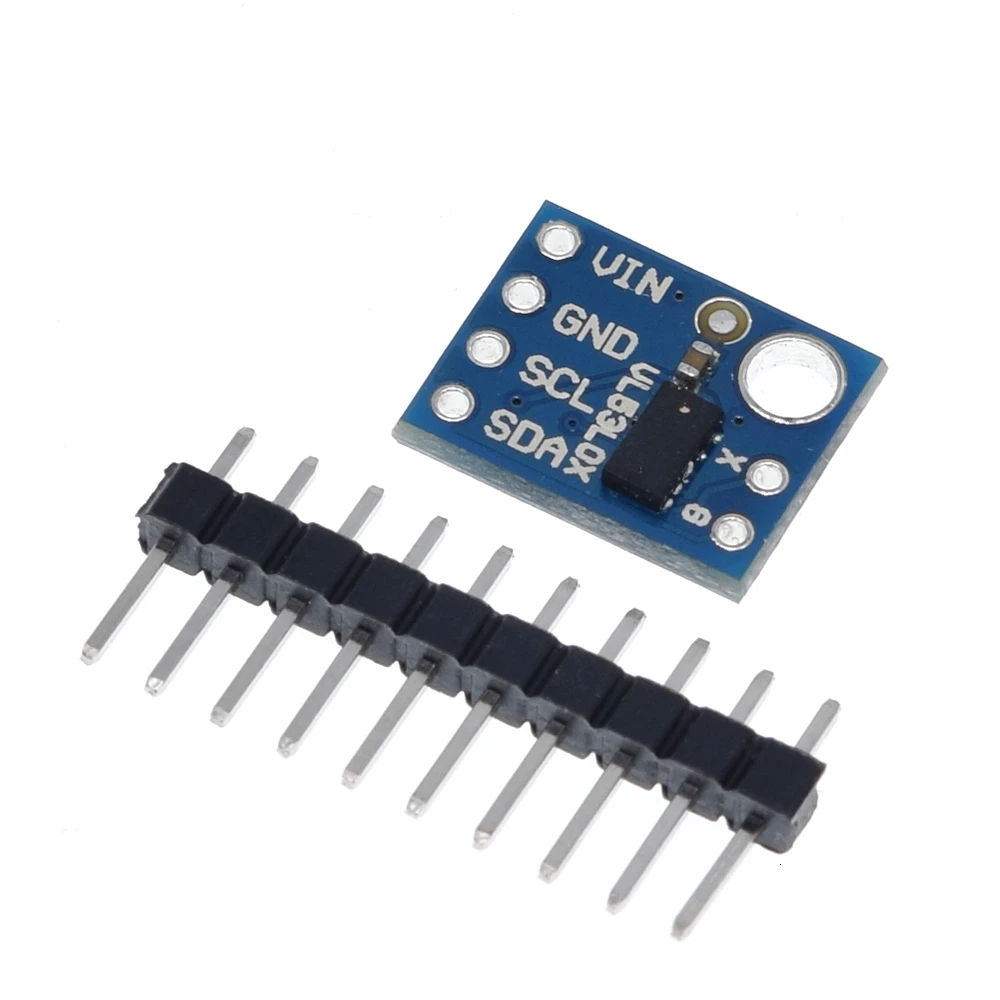

1/5PCS VL53L0X Time-of-Flight (ToF) Laser Entfernung Sensor Breakout 940nm GY-VL53L0XV2 Laser Abstand Modul I2C IIC 3,3 V/5V

Produktbeschreibung

PIN Description
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I
2
C lines high to this level.
GND The ground (0 V) connection for your power supply. Your
I
C
control source must also share a common ground with this board.
SDA Level-shifted I
C data line: HIGH is VIN, LOW is 0 V
SCL Level-shifted I
C clock line: HIGH is VIN, LOW is 0 V
XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.

Produktdetails in Bildern

Produkteigenschaften

Markenname

TZT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

..

Verlustleistung

..

ist kundenspezifisch

Ja

Betriebstemperatur

40-+85

Anwendung

experimental modules

Paket

DIY KIT

For Arduino STM

electronic module
