integrierte Schaltung

WCH CH32V208 32V208 32V208WBU6 Entwicklungsboard CH32V208WBU6 Kernplatine

29,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 5–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Option Distinguish

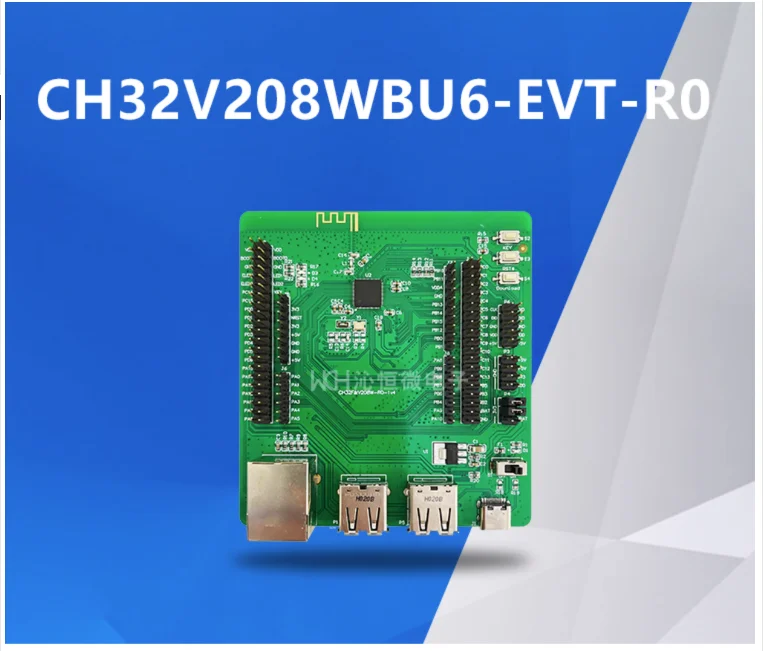

CH32V208WBU6-EVT-R0: Development Board *1
CH32V208WBU6-EVT-LinKE: Development Board *1 Debugger *1
CH32V208 WBU6 is a wireless microcontroller based on 32-bit RISC-V design, equipped with hardware stack area, fast interrupt entry, and greatly improved interrupt response speed based on standard RISC-V. Equipped with V4C core, it incorporates a memory protection unit while reducing the hardware divide cycle. On-chip integration of 2Mbps low-power Bluetooth BLE communication module, 10M Ethernet MAC+PHY module, USB2.0 full-speed device + host/device interface, CAN controller, etc.

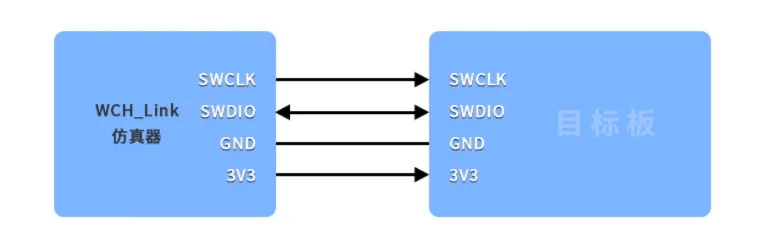

When SDI mode is used for program download and debugging, 4 lines are generally used, namely power line VCC, ground line GND, data line SWDIO, and clock line SWCLK.

Produktdetails in Bildern

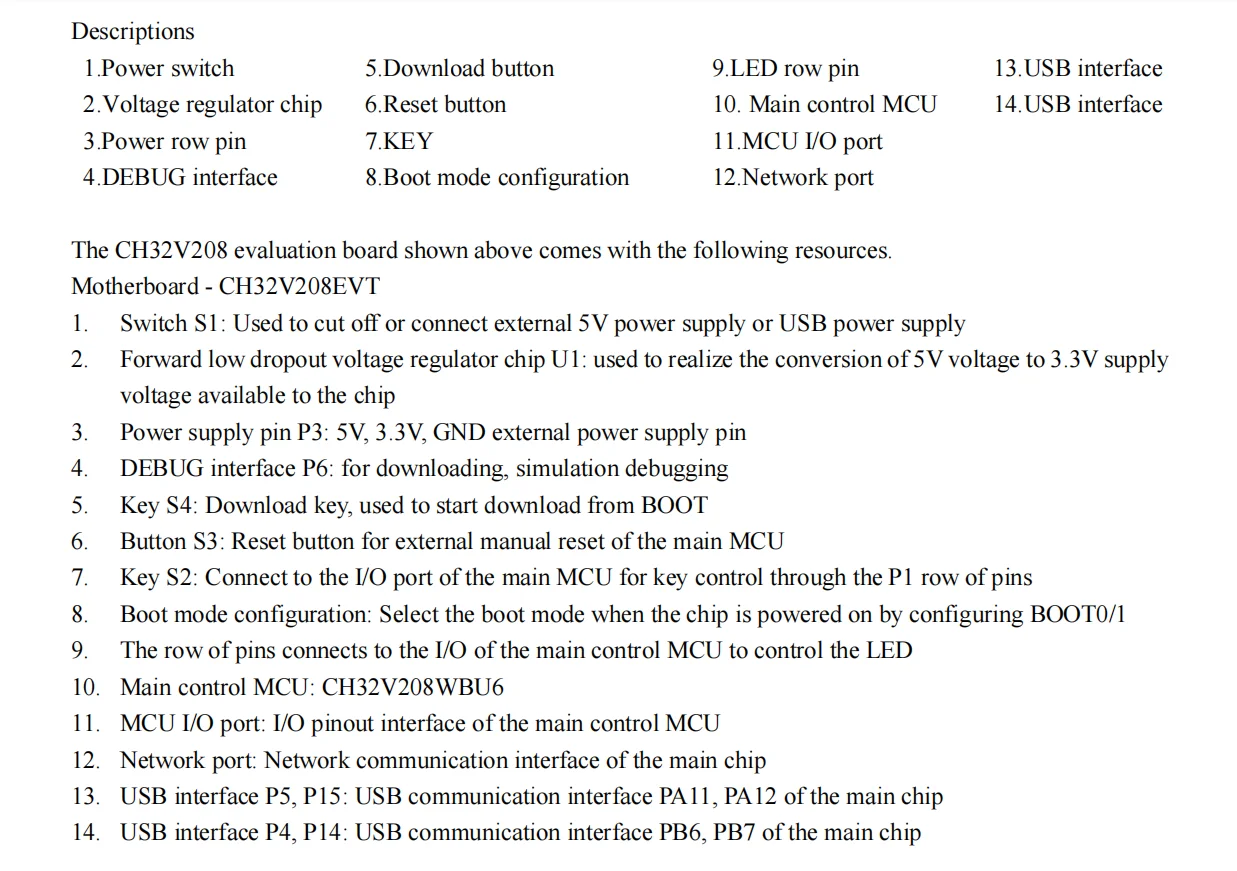

WCH CH32V208 32V208 32V208WBU6 Entwicklungsboard CH32V208WBU6 Kernplatine – Detail 1

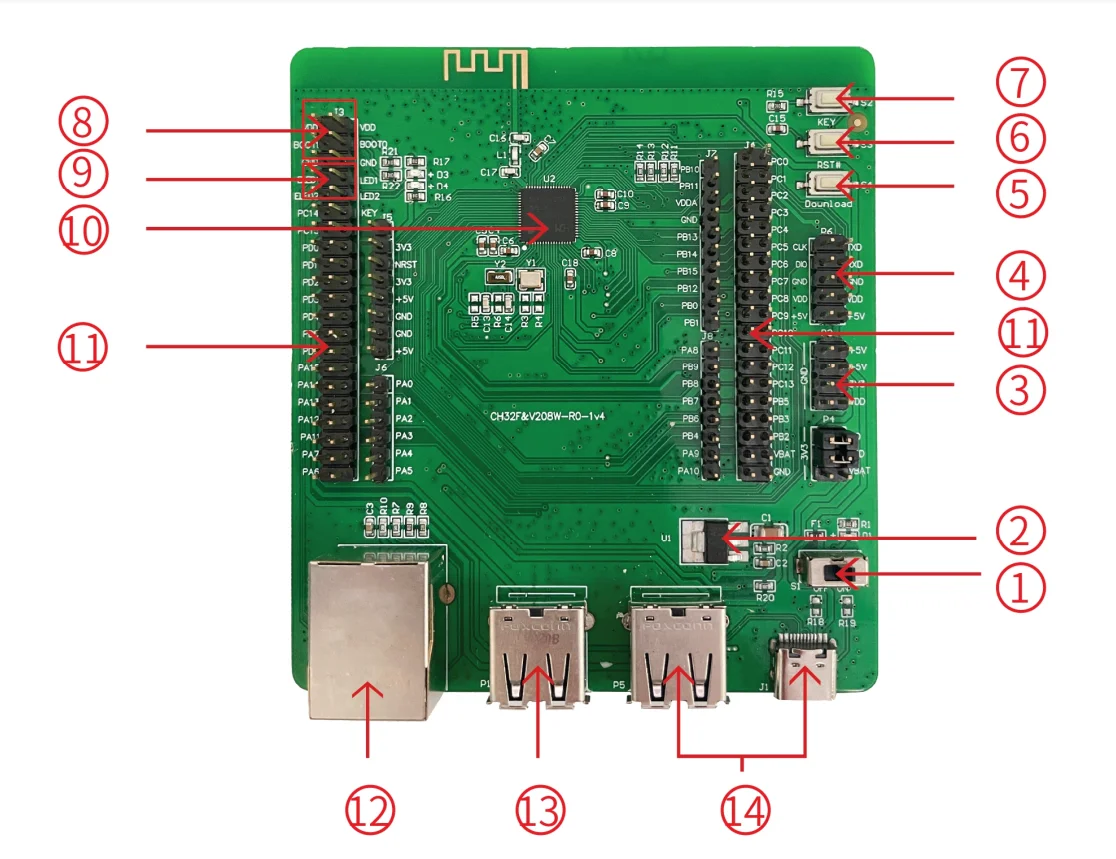

WCH CH32V208 32V208 32V208WBU6 Entwicklungsboard CH32V208WBU6 Kernplatine – Detail 2

WCH CH32V208 32V208 32V208WBU6 Entwicklungsboard CH32V208WBU6 Kernplatine – Detail 3

WCH CH32V208 32V208 32V208WBU6 Entwicklungsboard CH32V208WBU6 Kernplatine – Detail 4

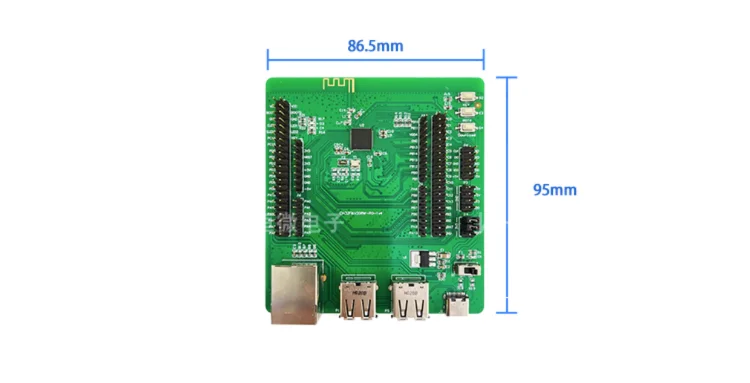

WCH CH32V208 32V208 32V208WBU6 Entwicklungsboard CH32V208WBU6 Kernplatine – Detail 5

WCH CH32V208 32V208 32V208WBU6 Entwicklungsboard CH32V208WBU6 Kernplatine – Detail 6

WCH CH32V208 32V208 32V208WBU6 Entwicklungsboard CH32V208WBU6 Kernplatine – Detail 7

WCH CH32V208 32V208 32V208WBU6 Entwicklungsboard CH32V208WBU6 Kernplatine – Detail 8

Produkteigenschaften

Markenname: W
Ursprung: CN (Herkunft)
Hochbetriebenes Chemikalienunternehmen: Keine
Zustand: Neu
Typ: Modul
Choice: yes
semi_Choice: yes

Artikelnummer: 1005005618694083
