Produktbeschreibung

Description

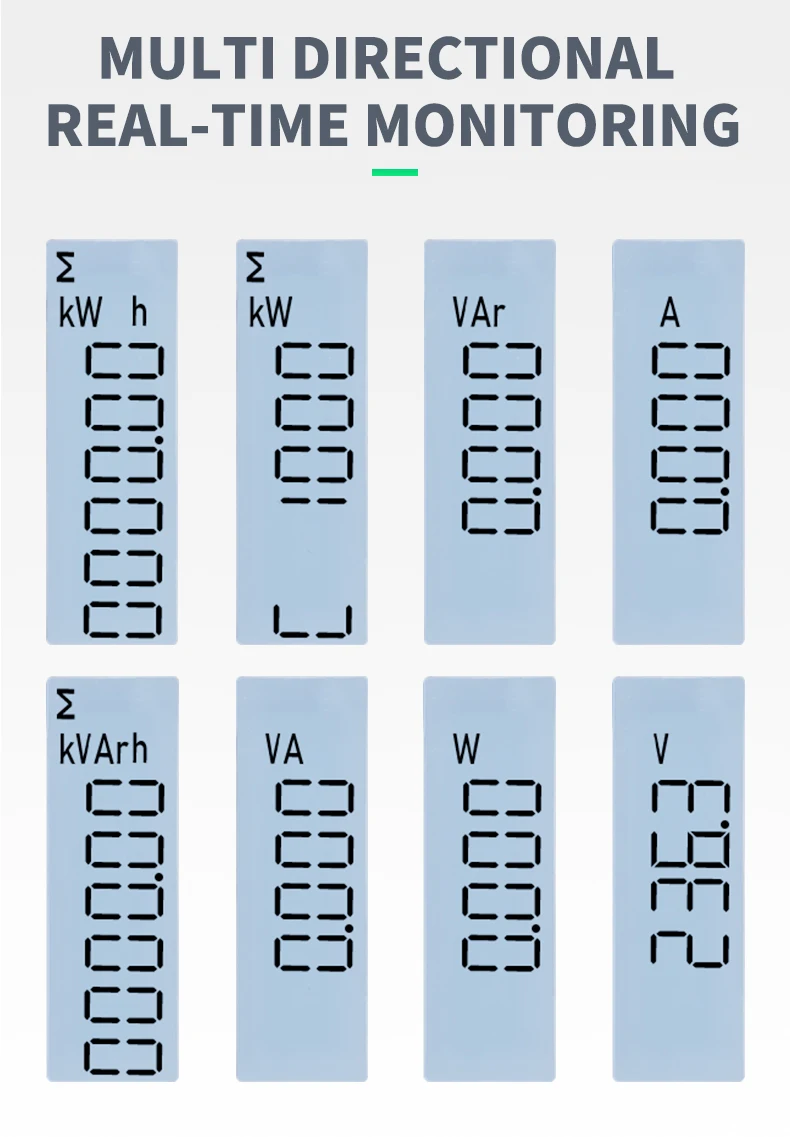

TAC1100 series products are single phase multi-function DIN rail installtion energy meter. This series of products can support a variety of electric parameter measurement analysis, such as voltage, current, the four quadrant power parameters, power factor, etc.Meanwhile they can provide a variety of electrical energy parameters measurement, such as two-way active energy, reactive energy, monthly and daily energy consumption statistics.
TAC1100 series products are multi-functional electric energy meters designed for electric energy monitoring of photovoltaic inverter, statistical analysis of new energy electricity consumption, power monitoring needs of power system utilities and intelligent buildings.
Please note that TAC1101 is a mulit tariff style
The multi-tariffs function refers to the function that the meter realizes time-sharing measurement of electric quantity.
Specification
Active energy:0 to 999999.999 kWh
Reactive energy:0 to 999999.999 kvarh
Rate voltage:230 Vac
Measured range:176 to 275 Vac
Frequency range:45 to 65 Hz
Measured range:0.005 to 100 A, basic current (Ib) is 5A

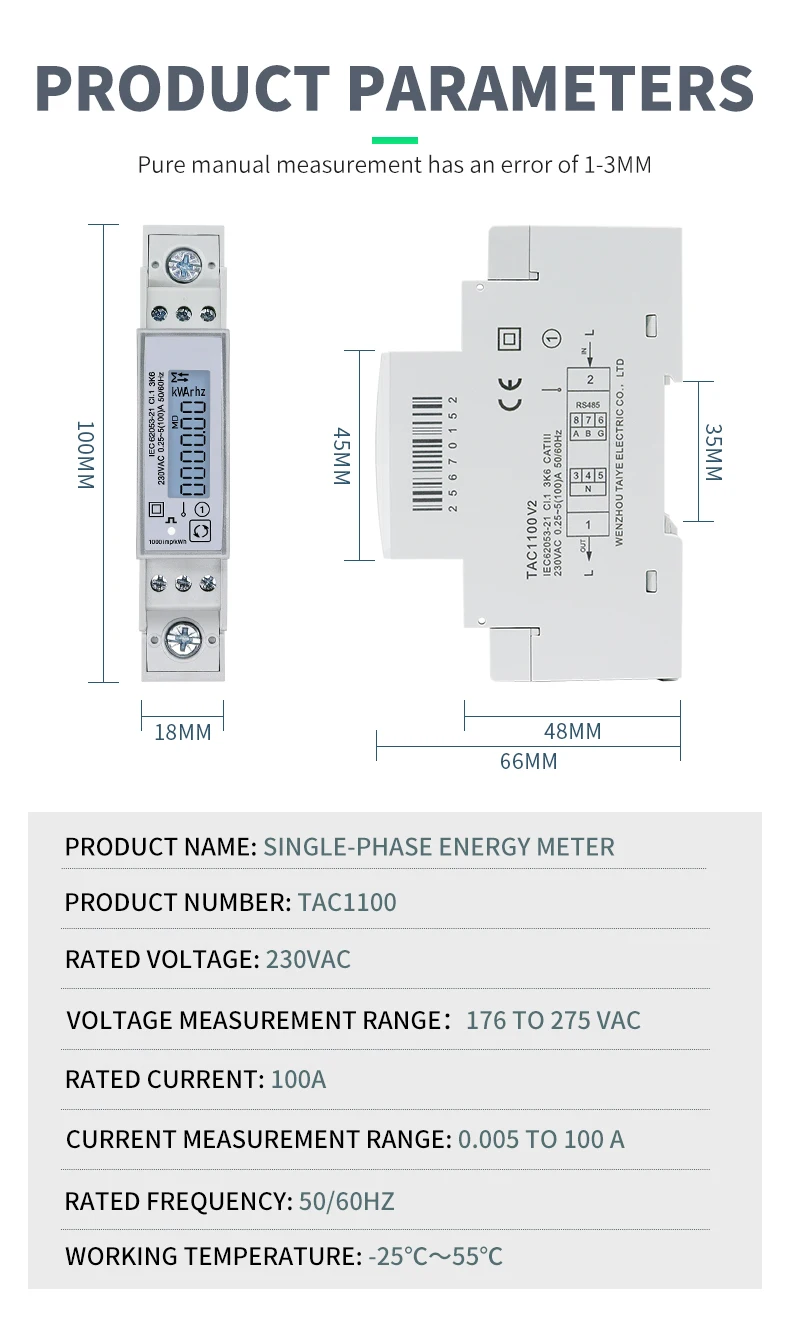

Dimensions (W X H X D):18 x 116 x 72 mm
Operating Temperature:-25 to +55℃
Interfaces standard and protocols:2-wire RS485, Modbus RTU
Buad rate:default is 9600 bps
Touch buttons
Package Included
1 × TAC1100 Energy Meter

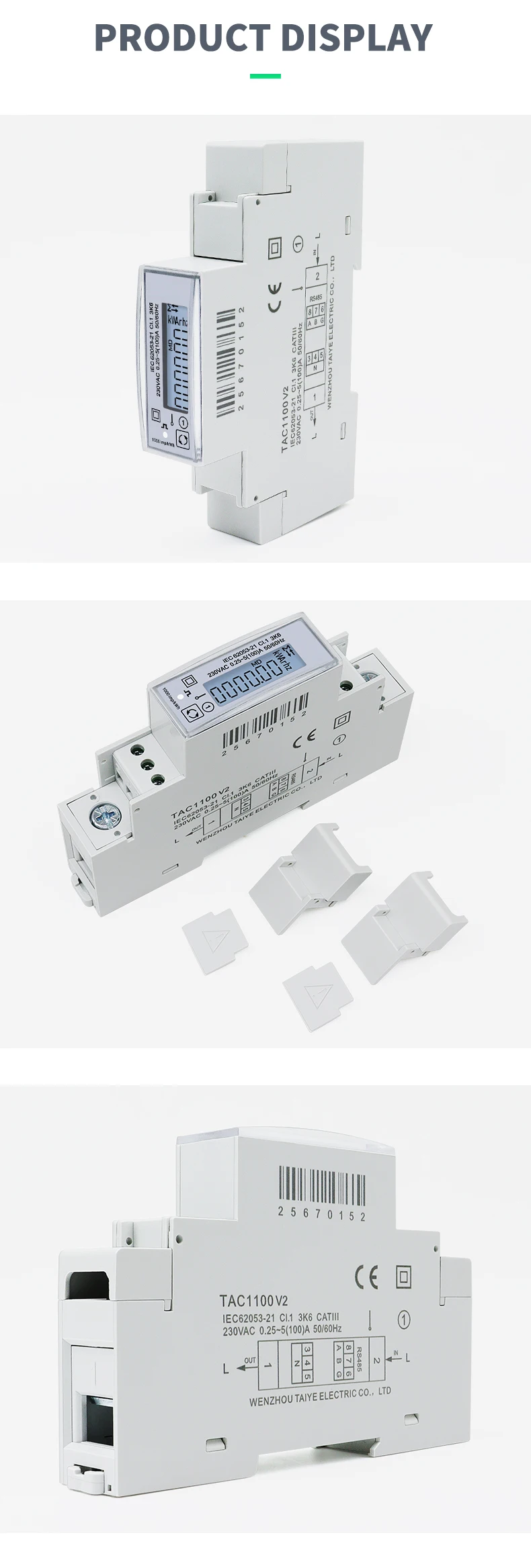

Produktdetails in Bildern

Produkteigenschaften

Markenname

CNYANNUA

CNYANNUA Model

TAC1100

Hochbetriebenes Chemikalienunternehmen

Keine

Halbfertigprodukt

Nein

Ursprung

CN (Herkunft)

Heimwerkerbedarf

Sanitär

Batterie im Lieferumfang enthalten

no

Messenergiebereich

0 to 999999.999 kWh

Anzeigetyp

LCD-Bildschirm

Modellnummer

TAC1100

Zertifizierung

NONE

Stromversorgung

Wechselstrom

Phase

Einphasig

Nennspannung

230 V

Abmessungen

18 x 116 x 72 mm

Betriebstemperatur

25 to +55℃

Genauigkeitsklasse

1

Maximaler Betriebsstrom

80A – 99A
