MP3429 5V 9V 12V 15V Booster Netzteil Modul Step Up Boost Modul Lithium Batterie Power Board niedrige Welligkeit 21A Spitzen Eingang

Produktbeschreibung

Module description

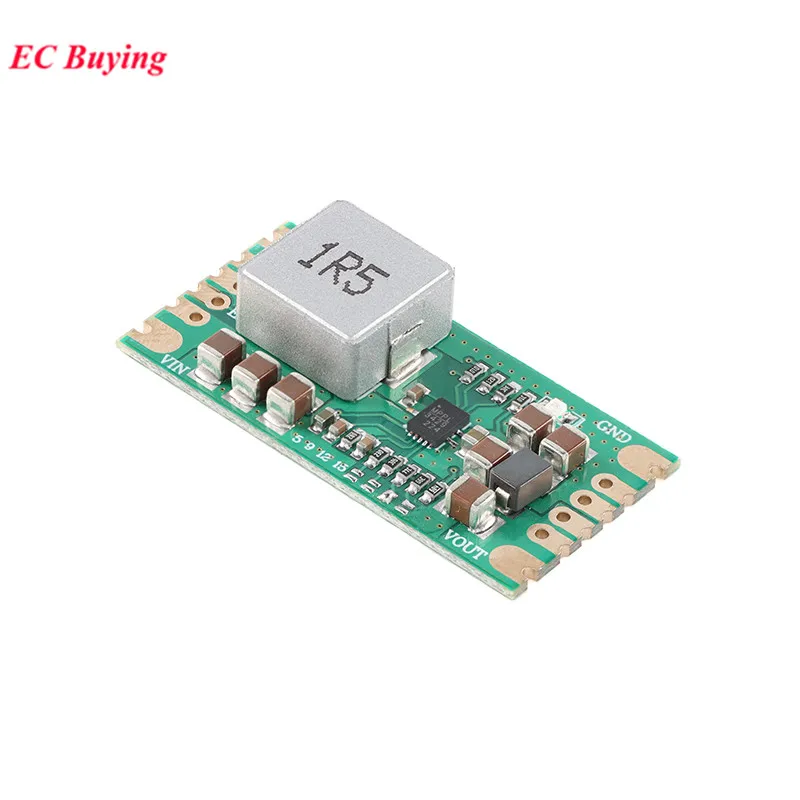

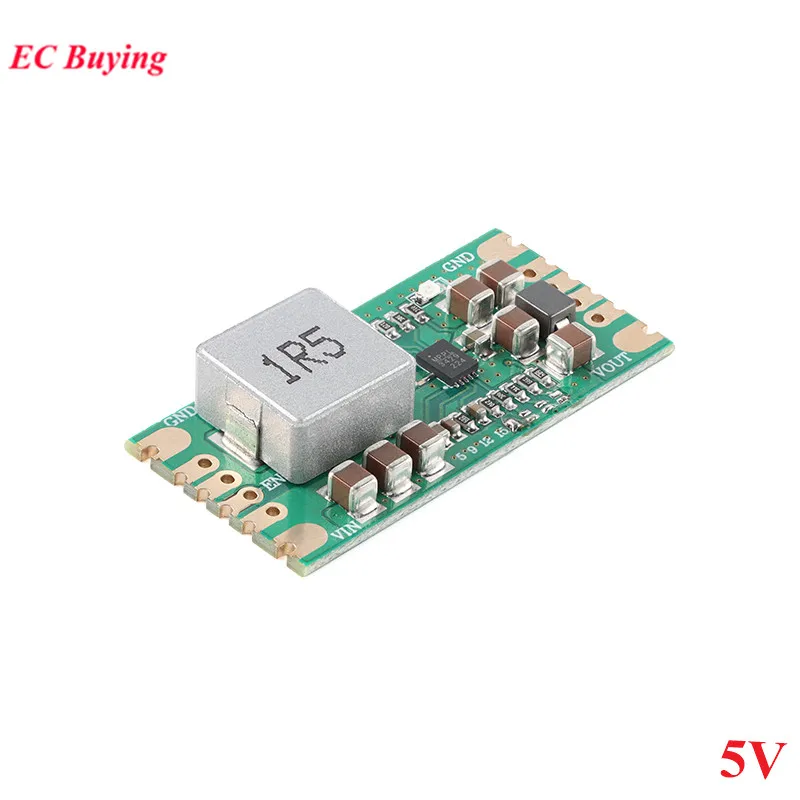

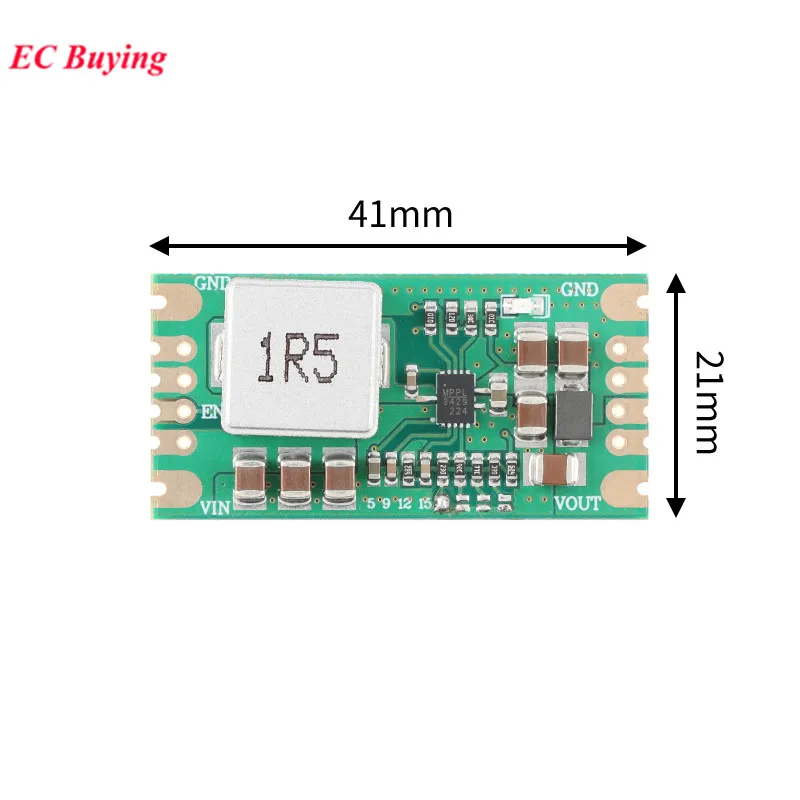

This module is a boost switching power supply with high power density. Various voltage outputs (5V, 9V, 12V, 15V) are configured on the board by default, and can be converted to corresponding voltage output only by welding the corresponding jump point. The optimal theoretical conversion rate can reach 97%. It has overheat protection, boost switch enabling pin, regular module layout, layout and wiring in strict accordance with the design specifications of switching power supply circuit, generous materials, small ripple, convenient and practical power output. The MP3429 used in the module is a 600kHz fixed-frequency wide-input range high-integrated boost converter. Starting voltage is as low as 2.7V, single battery power supply can support up to 30W load power, and low on-impedance power MOSFET is integrated. The constant turn-off time control (COT) mode can provide fast transient response. The periodic current protection in the low-end MOSFET can prevent the current from running away, and the high-end MOSFET can avoid using external Schottky diodes.
Precautions for module use
(1) The module has its own enabling function. By default, it is enabled by pulling up. The EN pin can be grounded to disable the module.
(2) If the module heats up in use, the buyer should enhance the heat dissipation according to the actual situation. When the module is loaded with large load, the heat sink can be appropriately increased.
(3) The module is a step-up module, and the input voltage needs to be less than the set output voltage.
FAQ
Q: Jump point selects 9V output and module input 10V. Why is the output greater than 9V?
A: The module is a boost power supply, and the input voltage needs to be less than the set output voltage.
Q: Why can't the module conversion efficiency or ripple reach the nominal value?
A: First of all, we need to have a correct measurement method. There are many explanations about the conversion efficiency and ripple measurement method of Baidu switching power supply. Secondly, the smaller the input and output voltage difference, the higher the efficiency. The load current will also affect the efficiency and ripple.
Q: Why can't the maximum output of the module reach the nominal value when I use it?
A: To achieve high output power, the input power of the module must be greater than the output power.

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

Input 2.7V-13V Output 5V/12V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

module
