7 Farben auf Lager PVC-Gummikappe Silikonhülle Kunststoffrohrhülse Nabenfaden Schutzhülle Rundrohr Kabelendabdeckung

Produktbeschreibung

How to match dimensions
Measure the outer diameter of your product. For example, if the outer diameter of your screw is 9.53 mm, you can select a 9.5mm product. Refer to the dimension table for the length of the rubber sleeve. If you want to select 9.0 mm firmly.
Product name: rubber sleeve
Product model: HR series
Size: inner diameter 1.3mm - 90mm

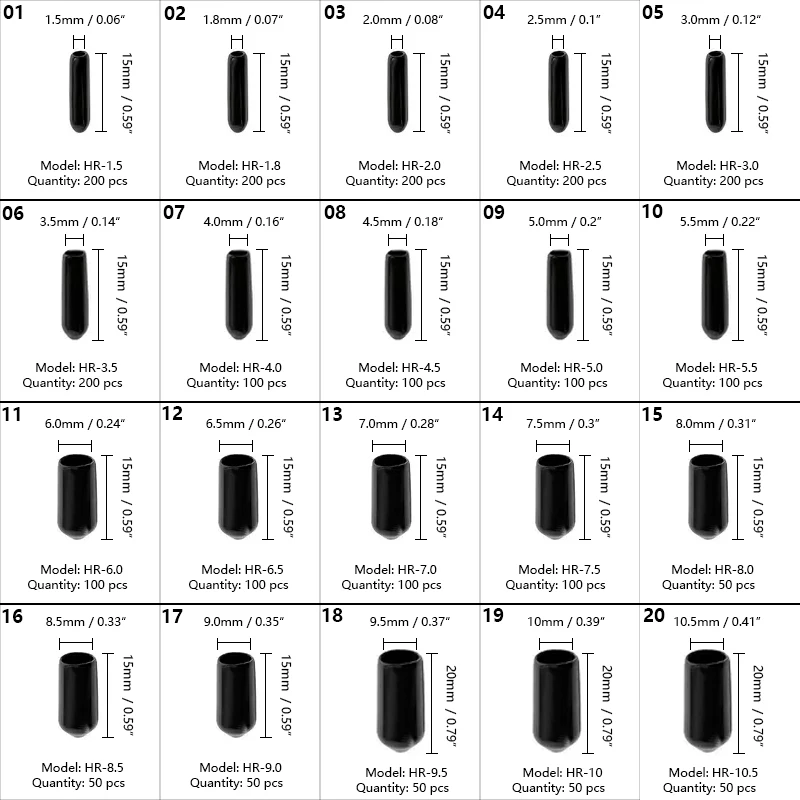

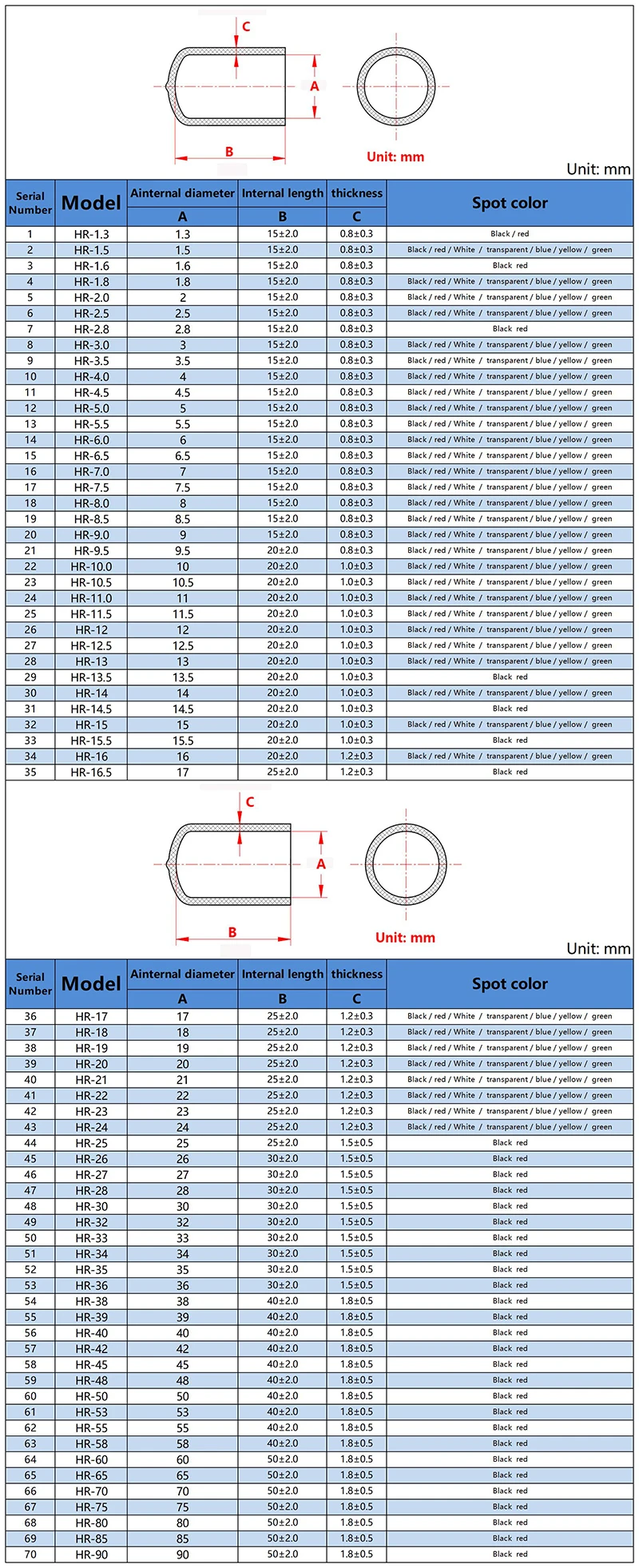

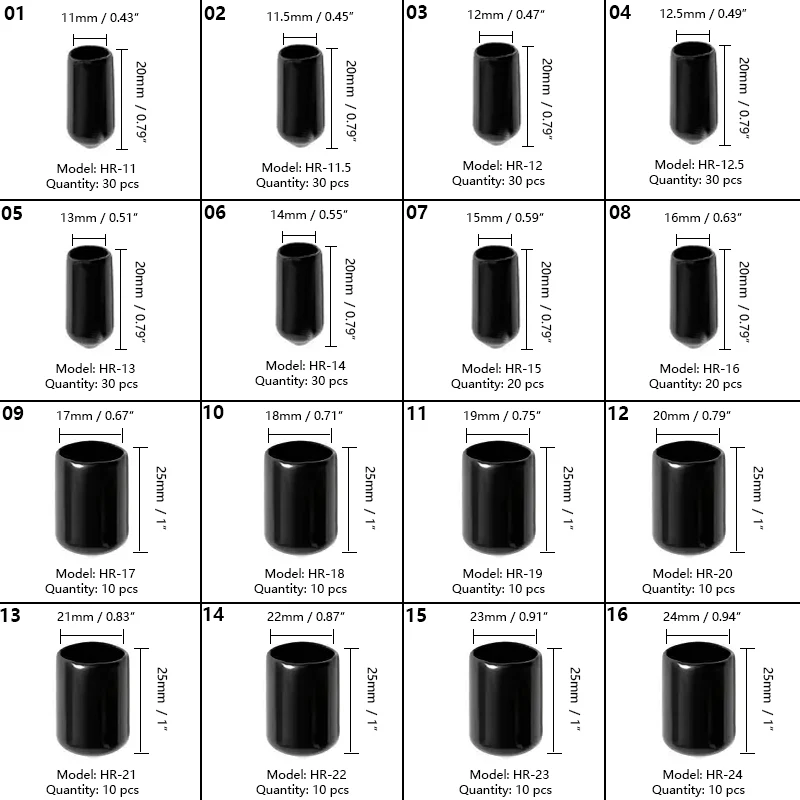

Length: refer to the size table in the picture below
Material: soft PVC
Characteristics: shiny surface, oily and elastic
Spot colors: black, red, white, semi transparent, yellow, blue, green
About color difference: due to different production batches, different photo environment and different display resolution of mobile phones and computers, the physical products will have a certain color difference. Please be informed.
Product size error: The inner diameter of the rubber cap is accurate, with a thickness error of plus or minus 0.2-0.5mm, and a length error of plus or minus 1-3mm. The size error is caused by the production process. If you have high requirements for product size accuracy, please purchase with caution.
Product Description: Release agents are used for the production of rubber caps, and there may be residue of release agents in the product, which is displayed as oily. If you have high requirements for product cleanliness, you need to clean it yourself. The raw material of the product is PVC soft rubber, which may have a certain rubber odor. Please understand.
Product hardness and elasticity description: The hardness of the rubber cap is Shore hardness HA 40-60 degrees, and the elasticity of the product is greatly affected by the temperature of the use environment. When the temperature is low, the elasticity decreases, and the hardness increases. When the temperature is high, the elasticity becomes better, and the hardness decreases.
Regarding non-standard color and size customization: Customizing colors, sizes, and styles may involve mold costs, and the unit price may be higher. Additionally, there may be delivery times, and the unit price may be more favorable for larger quantities. Please consult our salesperson for specific information.
Application products:Hook, hanger, iron wire, iron rod, wooden rod, wooden rod, fiber rod, glass rod, round tube, round rod, screw, thread, nut, screw, fishing rod, cat rod, hair hoop, wire insulation, cable, iron pipe, PVC pipe, glass pipe, copper rod, copper wire, oil pipe, copper wire, connector, iron nail, nail, table leg, table leg, chair leg, chair leg, stainless steel pipe, steel pipe, steel bar, water pipe, gas pipe, industrial parts, etc.
Purpose: product protection, dust prevention, waterproof, insulation, puncture prevention, beautiful decoration
Non-standard customization: a large number of colors and sizes can be customized. Please contact the salesperson for details
Special reminder: the length of the product has an error of plus or minus 1-2 mm, the thickness has an error of plus or minus 0.3-0.5 mm, and the product has oil stains
Satisfaction guarantee
Our primary task is to provide you with a relaxed, happy and worry-free shopping experience

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ursprung

CN (Herkunft)

Material

GUMMI

Hochbetriebenes Chemikalienunternehmen

Keine

Modellnummer

HR

Form

Ringdichtung

Standard oder Nichtstandard

Standard

Zertifizierung

RoHS-Konformität

Spot colors

black, red, white, semi transparent, yellow, blue, green

Round Pipe Cable End Cover

PVC rubber

Product size

inner diameter 1.3mm-90mm

Temperature resistance

Resistant to -20 ° C low temperature and 100 ° C high temperature

Packing

PE bagged or box

Product hardness

Shore hardness HA 40-60 degrees

Process

Dip and bake to shape

Product Function

Protection, decoration, packaging, insulation, flame retardant

Applicable products

Screw thread circular pipe iron wire hook clothes hanger cable wire

Choice

yes

semi_Choice

yes
