Produktbeschreibung

Conversion Module Analog 4-20mA 0-5V 0-10V to RS485 Modbus RTU Protocol 2 4 8 Channel Digital RS485 Transform Modules
2-Channel Product Overview

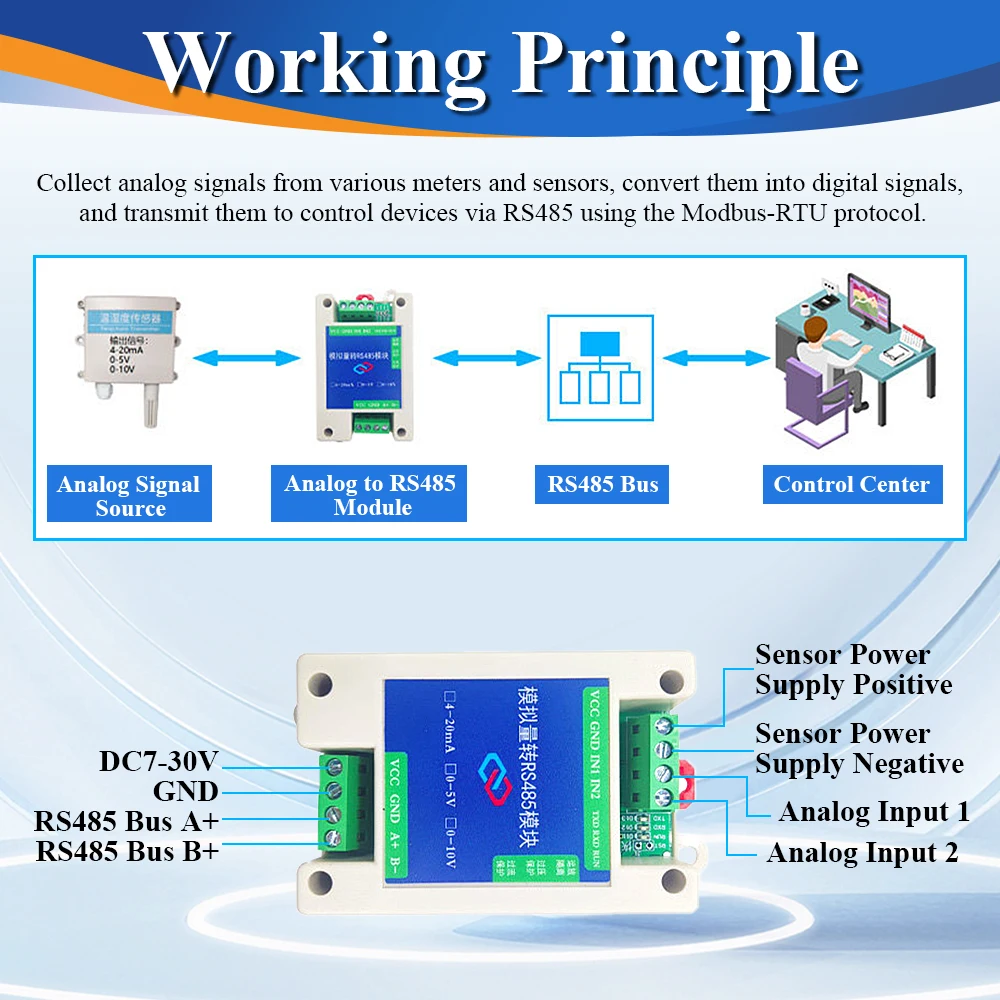

The module can collect up to two analog signals (4-20mA, 0-5V, 0-10V) on site and upload them through the standard ModBus-RTU communication protocol of 485 interface. The maximum communication distance of 485 interface is 1000 meters. It can be directly connected to the PLC, industrial control instrument, configuration screen or configuration software on site. Acquisition accuracy 12-bit resolution, 0.1% accuracy. It can be widely used in industrial sites, distribution cabinets and other places requiring analog signal acquisition.
Functional characteristics
1, DC7-30V anti-reverse connection, over voltage protection, over current protection, short circuit protection
2, 2-way analog current input 4 ~ 20mA (compatible with 0-20mA)
3, two analog voltage input 0 ~ 5V, 0 ~ 10V
4, 2 relay switching output
5, 12-bit resolution, 0.1% precision ADC
6, support standard Modbus-RTU communication protocol
7, communication operation indicator light, anti-crash guard dog
8, with lightning protection, electrostatic protection RS485 communication port, operation amplifier signal isolation
9, each channel analog signal acquisition range can be set independently
10. The address, baud rate and check bit can be set by the upper computer software
Main technical indicators
Power supply: 5-30 VDC (12VDC is recommended)
Power consumption: 0.3W
AD conversion resolution: 12 bits
Collection signal: 4 to 20mA(compatible with 0 to 20mA), 0 to 5V, 0 to 10V Optional
Storage environment: -40 ° C to 60 ° C

Produktdetails in Bildern

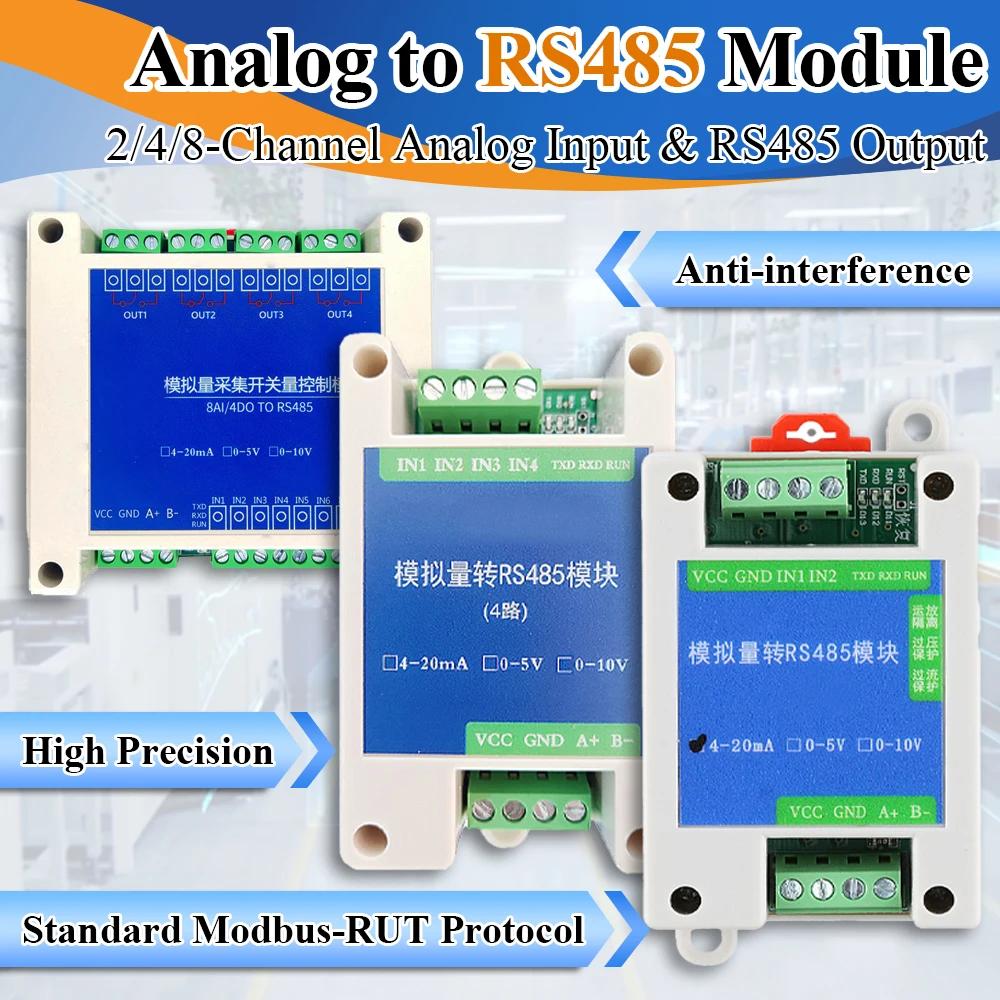

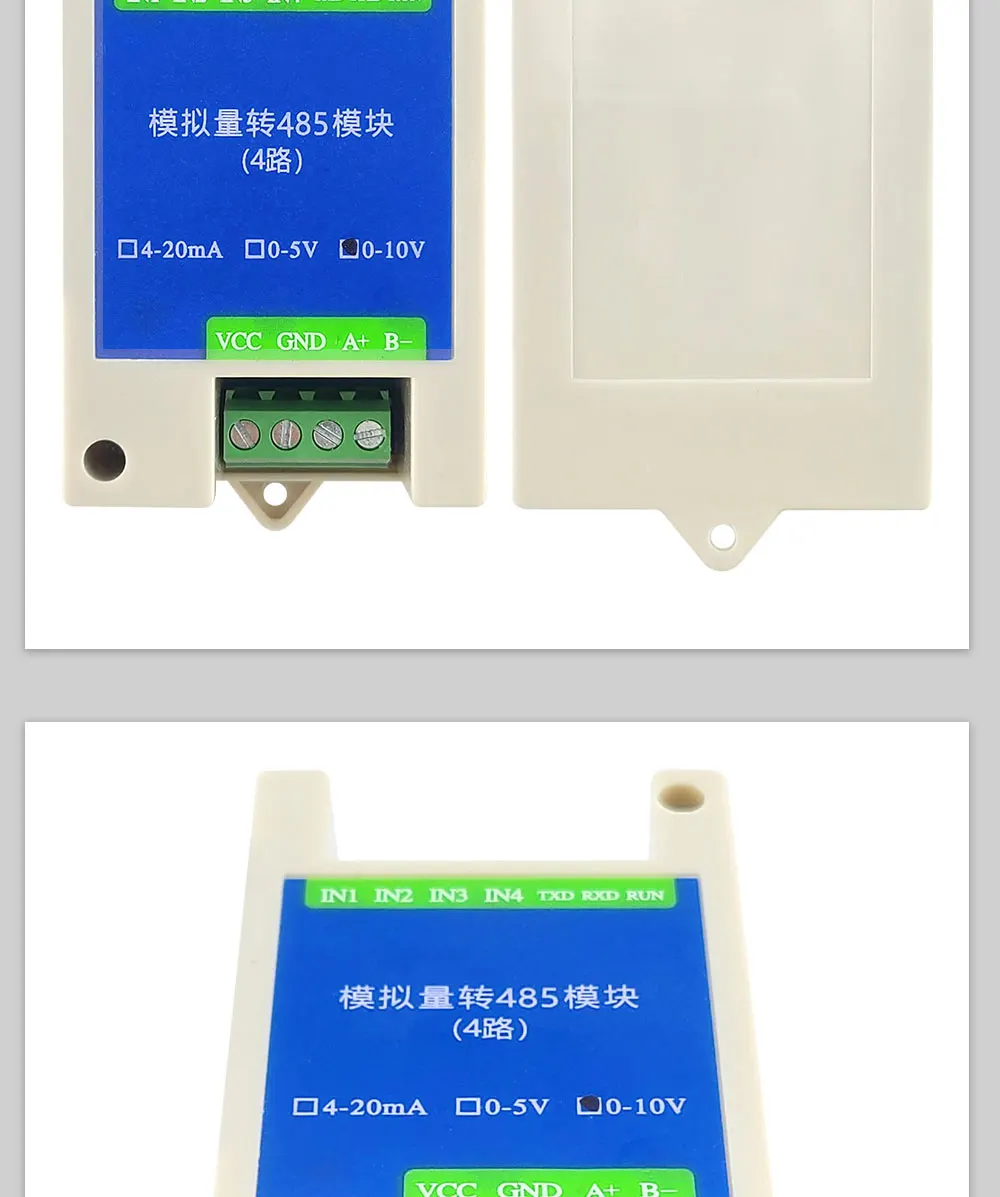

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 1

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 2

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 3

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 4

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 5

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 6

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 7

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 8

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 9

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 10

Konvertierungsmodul Analog 4-20 mA 0-5 V 0-10 V zu RS485 Modbus RTU-Protokoll 2 4 8-Kanal digitale RS485-Transformationsmodule – Detail 11

Produkteigenschaften

Markenname: NONE
Ursprung: CN (Herkunft)
Hochbetriebenes Chemikalienunternehmen: Keine
Zustand: Neu
Typ: Modul
Paket: SMD
Package: SMD
isCustomized: Yes
Model Number: Conversion Module Analog RS485
Condition: New
Type: Module
Brand Name: UICPAL
Origin: Mainland China

Artikelnummer: 1005005767517688
