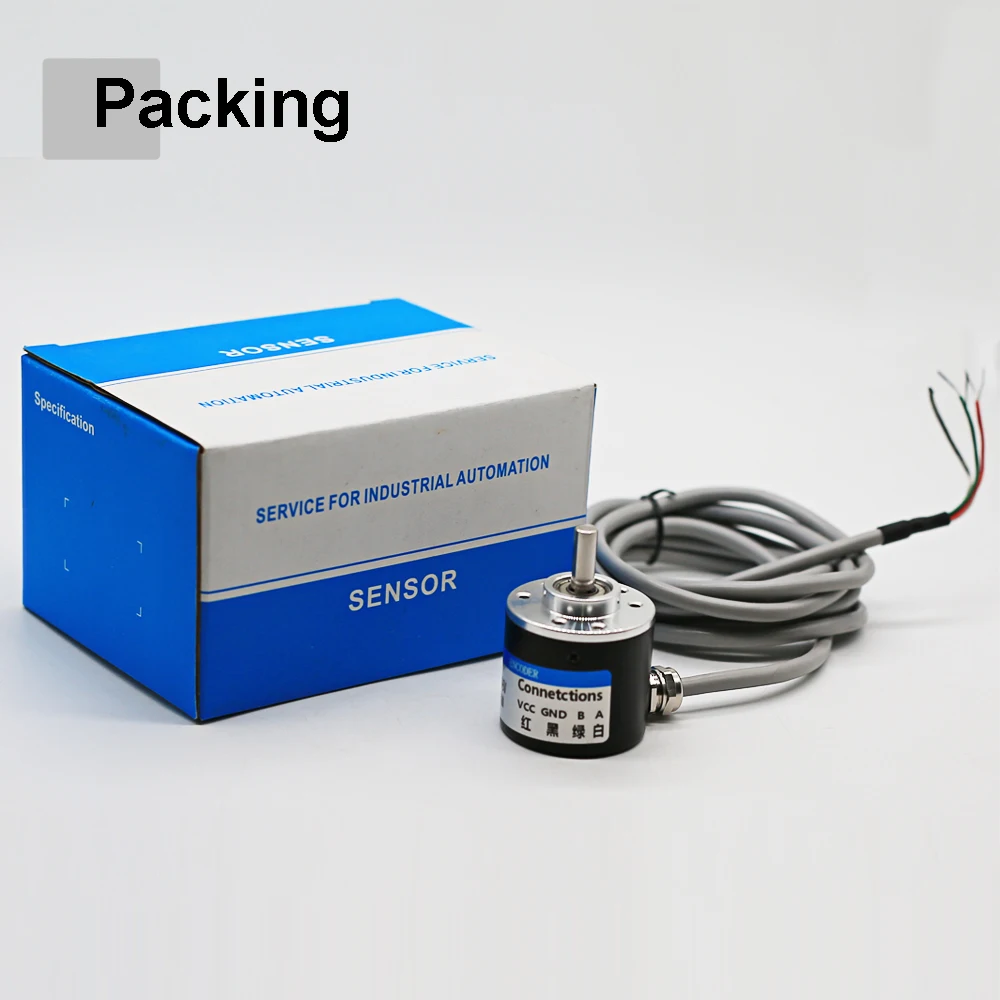

Photoelektrischer Inkremental-Drehgeber 38S6G5-B-G24N 50/100/200/360/400/500/600PPR AB 2 Phasen DC8-24V NPN PNP Optischer Encoder

Produktbeschreibung

Wiring Instructions
Signal
A
B
+VVC
OV
GNC
Wire color
White
Green
Red
Black
shielded
(Note: The signal is connected according to the wire color shown in the above table, the actual wiring is subject to the label ofeach encoder, and the standard length of the output cable is 1.5 meters)
Reminder
1.As the wiring standards of each factory are different, please strictly follow the wiring diagram
2.If you are not a professional, please do not connect the wires randomly If you have any questions, please contact our customer service
3.The outer core (shield) of the shielded wire shall not be linked with the inside and the shell
YT
38

Produktdetails in Bildern

Produkteigenschaften

Markenname

cloweit

Material

Edelstahl

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Merkmale

Rotary Incremental Encoder

Artikeltyp

SCHALTER

Garantie

1 year

Schaltertyp

Knopfschalter

Modellnummer

YT06-0P

Ist ein intelligentes Gerät

no

Protection class

IP50

Starting torque

��2x10-3N.m

Relative temperature

��RH85% No frost

Impact resistance

1000m/s².6ms

Line length

2m

Choice

yes

semi_Choice

yes
