TZT 50KV Hochspannungs-Impulsbogengenerator, Wechselrichter, Step-Up-Boost-Transformator, Super-Bogen-Zündspulenmodul, DC 3,7–6 V bis 2–3 A

Produktbeschreibung

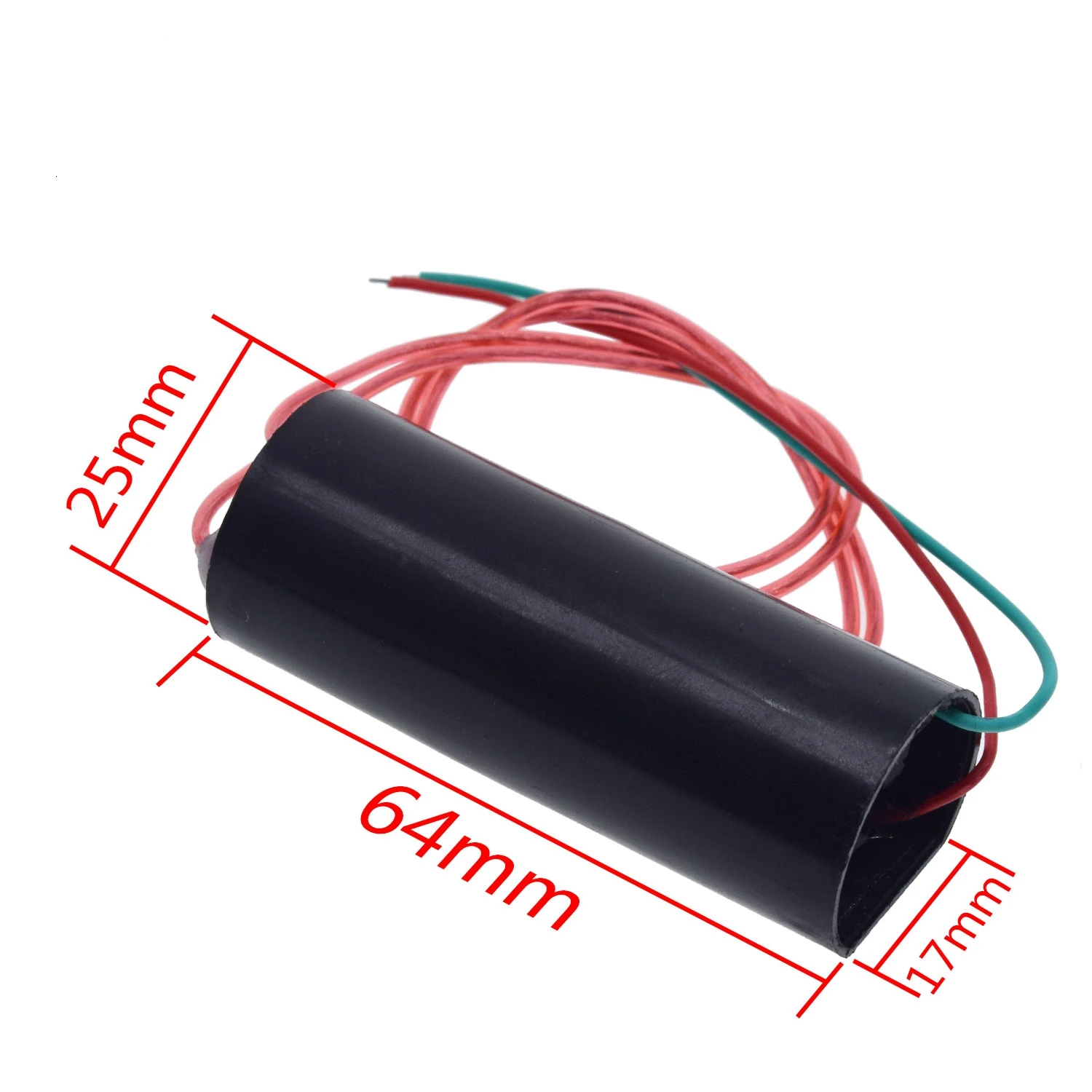

1.Model:MC-105
2.Length:64mm
3.Diameter:24mm
4.Plane Diameter:21mm
5.Input Voltage:DC 3.7-6V
6.Input Current:2A-3A
7.Input Wire Length:10cm
8.High Voltage Form:pulse DC type
9.Output Voltage:50kV
10.Output Current:0.05A
11.Output Wire Length:8cm
12.High Voltage Polarization Discharging Distance:1-2cm
13.Using Method:red and green wire are input port;red wire is positive,green wire is negatice;other two high voltage wire are output port;fixing high voltage wire port for proper distance;and input port connects with battery can achieve high voltage arc
14.Input Power:can use single 3.7V lithium battery or 2S parallel connection,auch as 18650 battery etc
Package included
1 x 50kV High Voltage Pulse Generator Super Arc Pulse Ignition Coil Module

Produktdetails in Bildern

Produkteigenschaften

Markenname

TZT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

3.7-6V

Verlustleistung

2-3A

ist kundenspezifisch

Ja

Betriebstemperatur

40-+85

Anwendung

Computer

Paket

DIY KIT

Functions

Electronic Module

Range of application

Switch And Sensor For Arduino STM
