20 Stück/1 Stück LD2420 24G Millimeterwellen-Radarsensor Intelligenter menschlicher Körper Micro Motion ISM Band Hohe Empfindlichkeit Geringer Verbrauch

Produktbeschreibung

1. Product introduction
HLK-LD2420 is a high-performance 24 GHz radar module with a send-and-receive antenna. Its human body sensing algorithm adopts millimeter-wave radar distance measurement technology and advanced proprietary signal processing technology of S3 series chips to achieve precise perception of movement, micro-movement and standing human body.
HLK-LD2420 is mainly used to detect whether there is movement or slight movement of the human body in the indoor scene perception area, and refresh the detection results in real time. It has a maximum sensing distance of 8 m for a moving human body. It can easily configure the sensing distance range, sensing sensitivity in different intervals and refresh time. It supports GPIO and UART interfaces, plug and play, and can be flexibly applied to different smart scenarios and terminal products..
2. Product features and benefits
2.1 Features
l Equipped with single-chip intelligent millimeter wave sensor SoC and intelligent algorithm firmware

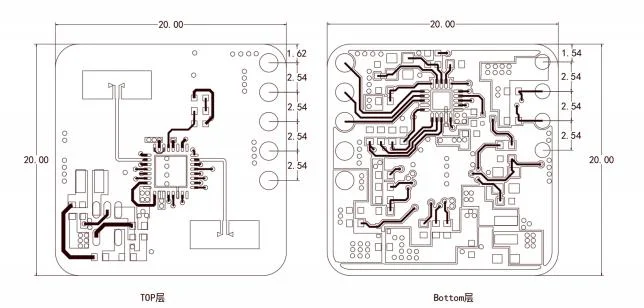

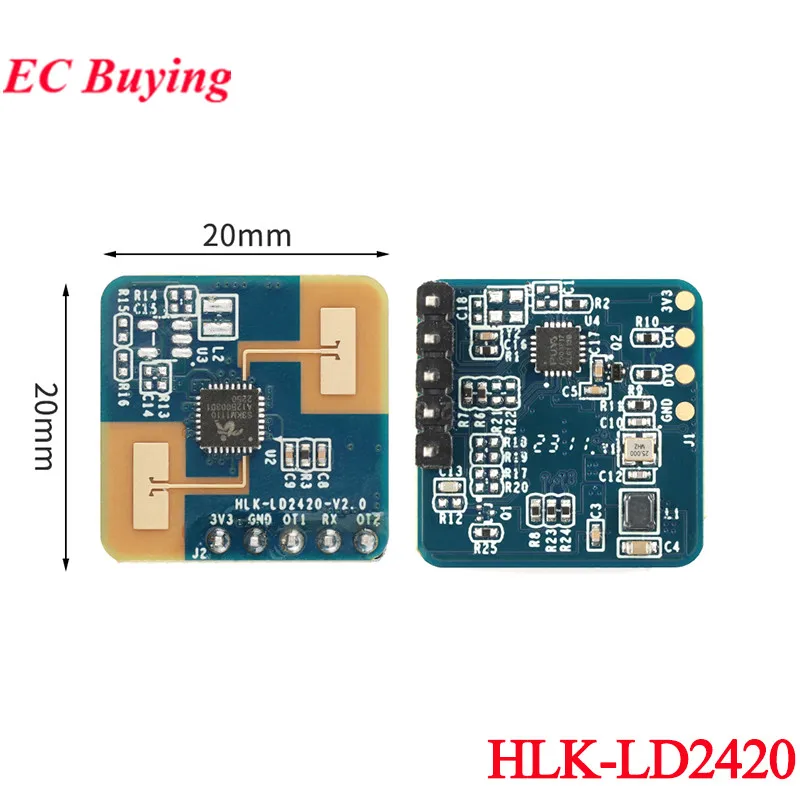

l Ultra-small module size: 20 mm × 20 mm
l Load the default human sensor configuration, plug and play
l 24 GHz ISM frequency band, certified by FCC, CE, and non-committee spectrum regulations
l 3.3 V power supply, support 3.0 V ~ 3.6 V wide voltage range
l Average operating current 50 mA
l The detection target is moving and micro-moving human body
l Real-time reporting of detection results
l Provide visualization tools to support the configuration of detection distance intervals, setting sensitivity and result reporting time between partitions
l Supports the division of sensing range, completely shielding any interference outside the range
l Short-range 0.2 m induction, no detection blind zone
l The longest distance of human motion sensing is 8 m
l Large detection angle, coverage reaches ±60°
l Support various installation methods such as ceiling hanging and wall hanging
Independent configuration of trigger and hold state, strong anti-interference ability

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SCHALTER

Versorgungsspannung

3.3V 5V

Verlustleistung

Low Consumption

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32

LD2420-24G

HLK-LD2420 24 GHz radar module

Frequency

24G-24.25GHz

Modulation method

FMCW

Detection distance

0.2-8m adjustable

Hi-Link HLK-LD2420

Intelligent Human Body Micro Motion

LD2420 24G Millimeter Wave Radar Sensor Intelligent

Human Body Micro Motion ISM Band High Sensitivity Low Consumption

HLK-LD2420 24G Millimeter Wave Radar Sensor

LD2420 FMCW Human Body Micro Motion Module ISM Band High Sensitivity

Hi-Link 24G millimeter wave radar LD2420

human presence sensing module micro motion intelligent sensor
