Am2315c hochpräziser Temperatur-und Feuchtigkeit sensor in Industrie qualität iic Signal DC 2,2 bis 5,5 V.

Produktbeschreibung

Technical Parameters
1. Product Overview
AM2315C consists of an all-new-design ASIC dedicated chip, an improved MEMS capacitive humidity sensor and a standard on-chip temperature sensor. The performance and reliability have been greatly improved
surpassing the level of the previous generations. The new generation sensor module has a more stable performance in harsh environment. At the same time, AM2315C has higher cost-effectiveness and applicability, due to the improvement from miniaturization. Each sensor is strictly calibrated and tested to ensure its high quality.
2. Application Range
The AM2315C is a kind of sensor of humidity and temperature with digital I²C output. It can be applied to HVAC, dehumidifier, testing and inspection equipment, consumer products, automobiles, automatic control, data loggers, weather stations, home appliances, humidity control, medical and other application fields which need to detect and control temperature and humidity.
3. Product Highlights
� Relative humidity and temperature output
� Superior sensor performance, typical accuracy RH: ±2%, T:±0.3℃
� Fully calibrated and processed digital output, I²C protocol
� Wide voltage support 2.2 to 5.5V DC
�
Excellent long-term stability
� Fast-response and anti-interference capability

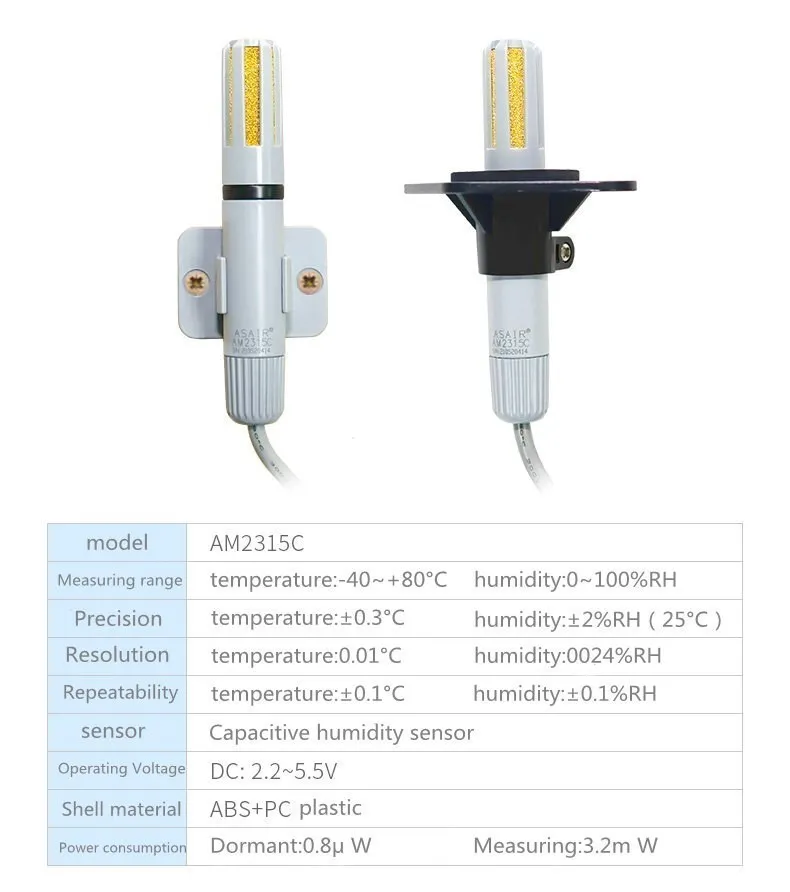

Produktdetails in Bildern

Produkteigenschaften

Markenname

SZYTF

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Ausgabe

Digitaler Sensor

Theorie

Other

Typ

Temperatursensor

ist kundenspezifisch

Ja

Benutzen

Temperatursensor

Material

Polymer
