1/5/10PCS TFmini Plus Lidar Laser Range Sensor Modul TOF Abstand Ranging Sensor Interface UART I2C IIC für Arduino Hindernis

Produktbeschreibung

TFmini Plus Lidar Laser Range Sensor Module TOF Distance Ranging Sensor Interface UART I2C IIC For Arduino Obstacle
Description
TFmini Plus is an upgrade project based on TFmini.
【Functions of stable, precise, high sensitivity and high-speed distance measurement】
It is a miniaturized, single-point ranging product, based on the TOF (time of flight) principle, with unique optical, electrical, and algorithm design, it mainly realizes the functions of stable, accurate, high-sensitivity and high-speed distance measurement.
【Low cost, small size, long distance, IP65 protection】
In addition to the features of low cost, small size, and long distance measurement, TFmini Plus is different from TFmini open modules. It also adds IP65 level protection, and has higher distance measurement accuracy. It is suitable for different environments such as outdoor strong light, different temperatures, and different reflectivity. It has stronger adaptability, lower power consumption, and more flexible detection frequency.
【Higher applicability】
To improve applicability, TFmini Plus supports Pix and customization output format, and provides common communication interfaces — UART, I/O and I2C.

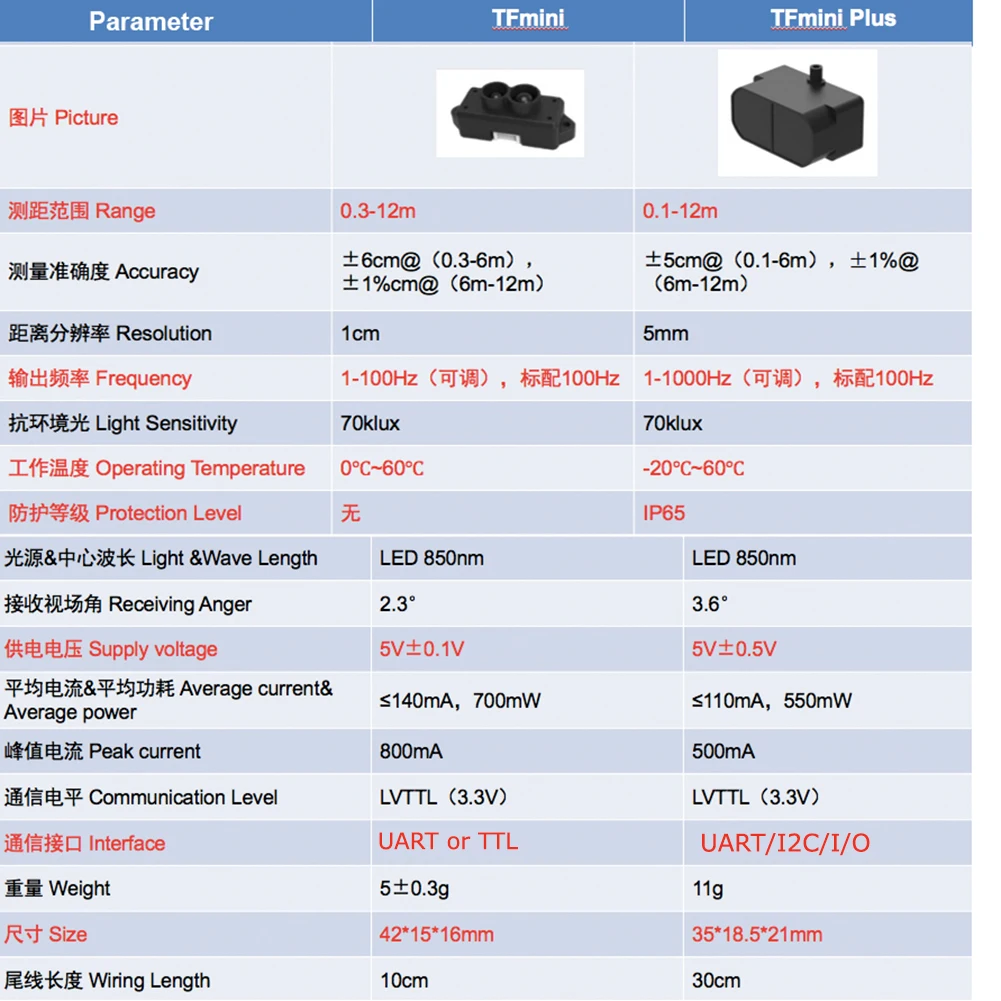

Specification
Weight:11g
Operating Range: 0.1m~12m
Distance resolution: 5mm
Frame rate:1~1000Hz(adjustable)
Accuracy:1%
Enclosure rating: IP65
Central wavelength: 850nm
Supply voltage: 5V±0.5V
Average current: ≤110mA
Power consumption: 550mW(low power mode 85mW)

Produktdetails in Bildern

Produkteigenschaften

Markenname

DIYmalls

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)
