XY12522 125V 22A 2000W CNC DC Einstellbare Buck Spannung Geregelte Step-down Netzteil Konstante Spannung Strom Modul DC12-140V

Produktbeschreibung

Features

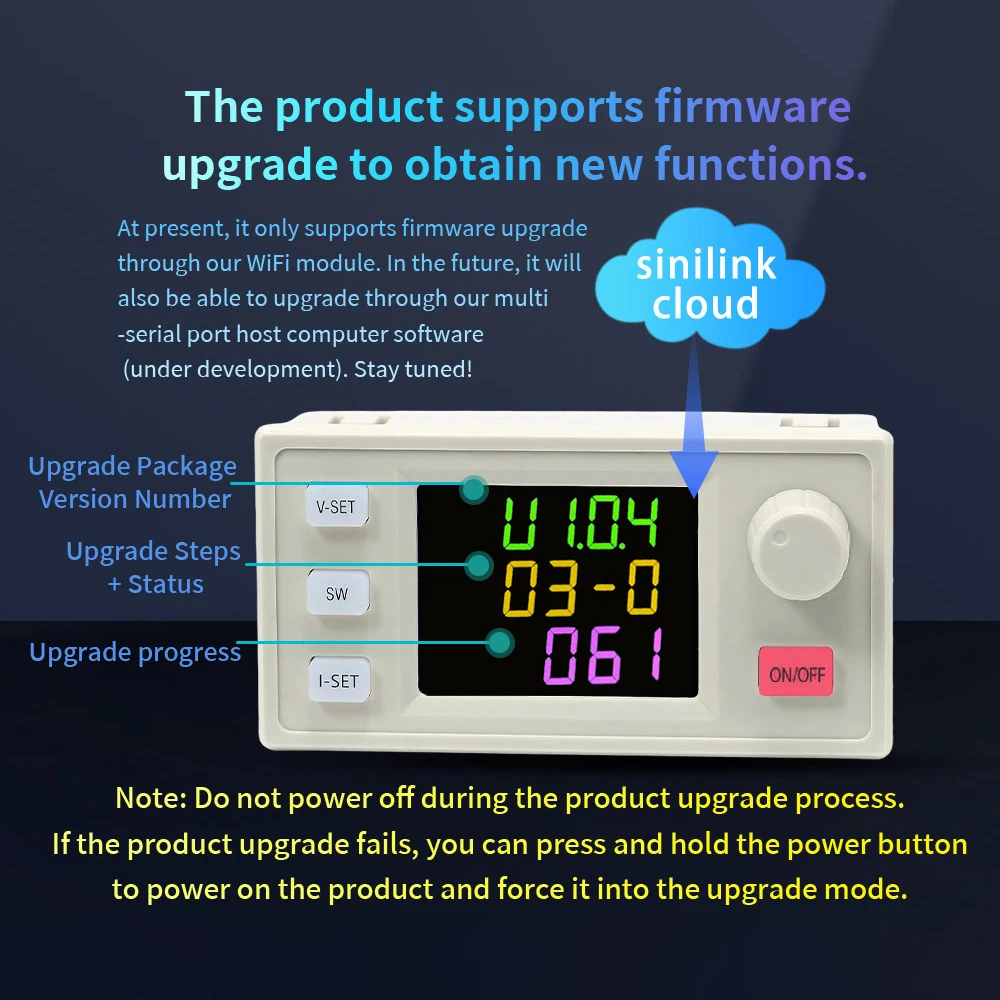

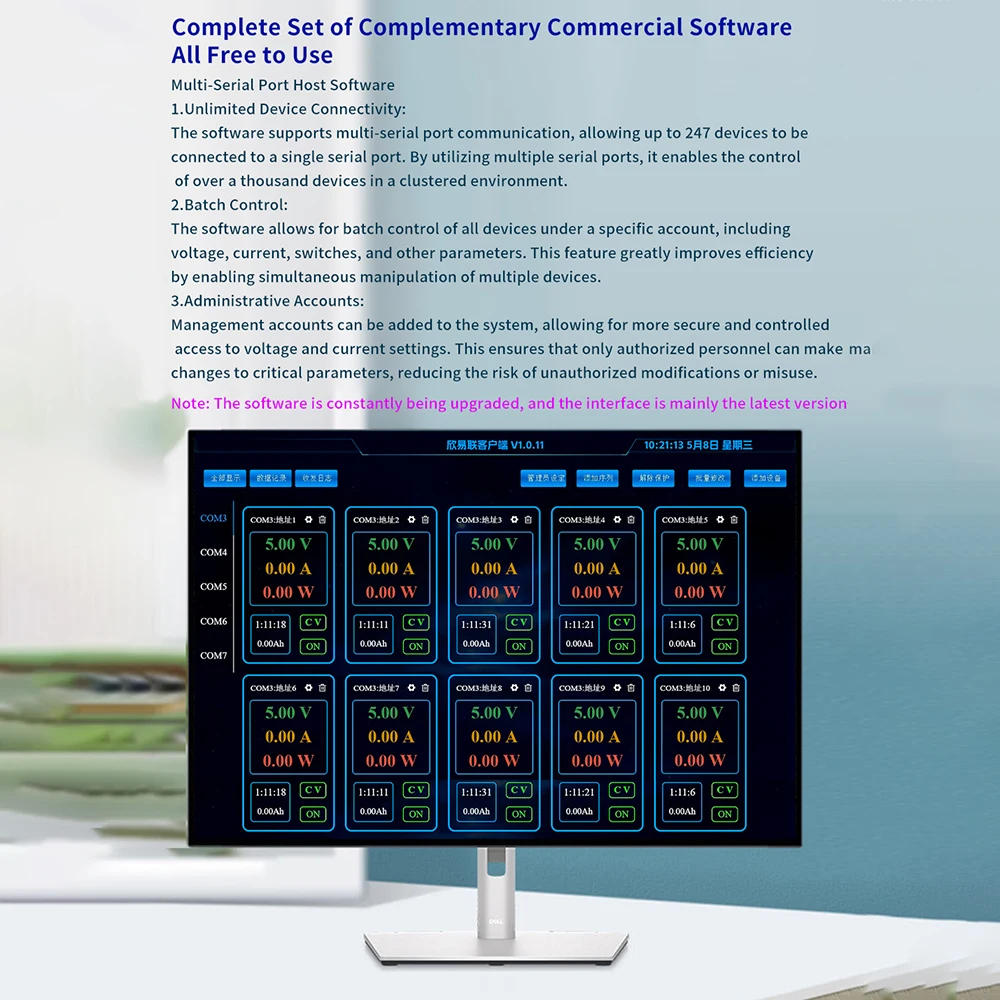

1. Support firmware upgrading, support MPPT solar charging, support serial communication, standard MODBUS agreement
2. Visualization range of 38 * 29mm, LCD screen layout is reasonable, full and rounded fonts, professional power supply LCD screen, you want the function it has!
3. Adopt one-piece injection molding shell, flame retardant material is safer! Double-layer buckle design, double circuit board fixed more firmly; display board using immersed gold design, anti-oxidation, better conductivity and more durable!
4. High-precision external clock crystal, to ensure the accuracy of the time, capacity/energy statistics more accurate, 48-pin powerful MCU controller, 64M frequency computing speed faster!
5. Upgraded PCB welded terminals (M3), greater current, lower heat, more reliable
Parameter
Product name: CNC DC step-down power supply
Input voltage: 12.00~140.0V
Output voltage: 0~125.0V
Output Current: 0~22.00A
Output power: 2000W
Voltage resolution: 0.01V
Storage data group: 10 groups
Conversion efficiency: 95% or so
Support MPPT solar charging
Precautions
1. Input can not be connected to AC power, not to mention 220V utility.
2. The maximum input voltage can not exceed 145V, it is recommended to use within 140V, positive and negative poles can not be connected to the reverse.
3. The output is not anti-reverse irrigation, when connecting the battery to ensure that the power supply output voltage is always higher than the battery voltage or in the power supply output positive series diode single conduction, to prevent the battery voltage reversal burns the power supply.

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

Output voltage: 0~125.0V Input voltage: 12.00~140.0V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

module
