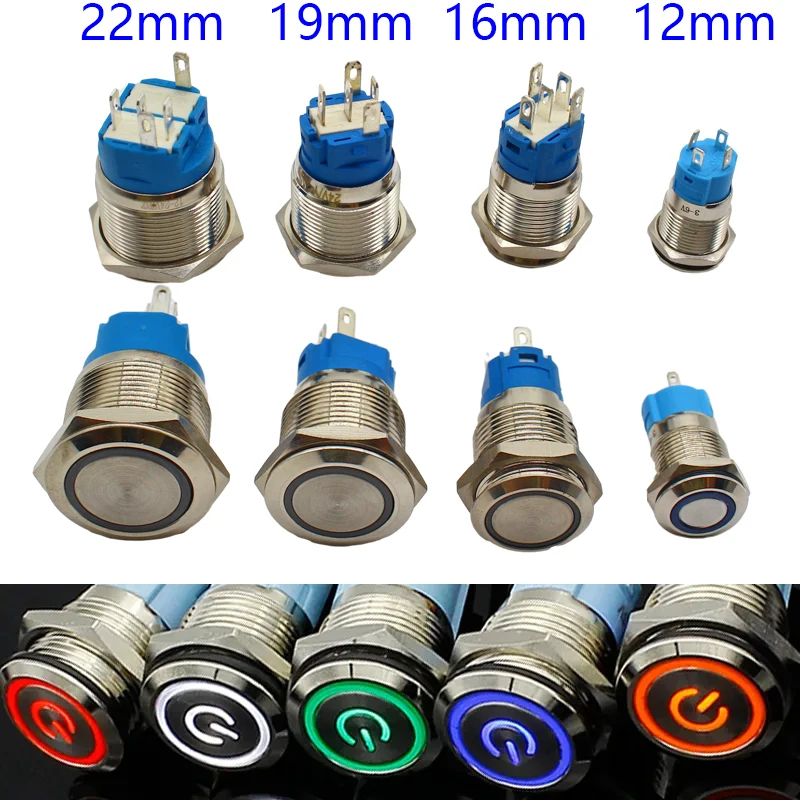

12/16/19/22mm Wasserdichte Metall Druckschalter LED Licht Momentary Rast Auto Motor Netzschalter 5V 12V 24V 220V Rot Blau

Produktbeschreibung

Note: the connector needs to be purchased separately
Difference between auto-recovery button and auto-lock button
1. Self-recovery button: press this button to turn on the power (light on)
Release your hand, the power will appear and turn off automatically (the light goes out)
2. Self-locking button: press the power button, release your hand, and keep the button stationary (lit)
Press the button again to display and turn off the power (the light goes out).
Product parameters
Head type: round head
Housing material: metal
Operation type: Momentary self-reset/fixed self-locking
Emitting color: red / yellow / blue / green / white
Opening size: 12mm/16mm/19mm/22mm
1.What does the signal "NC" and "NO" means?
"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C ": Common
2.How to connect?
1.Connect " NO " and " C ": The circuit is alway open unless press the button.

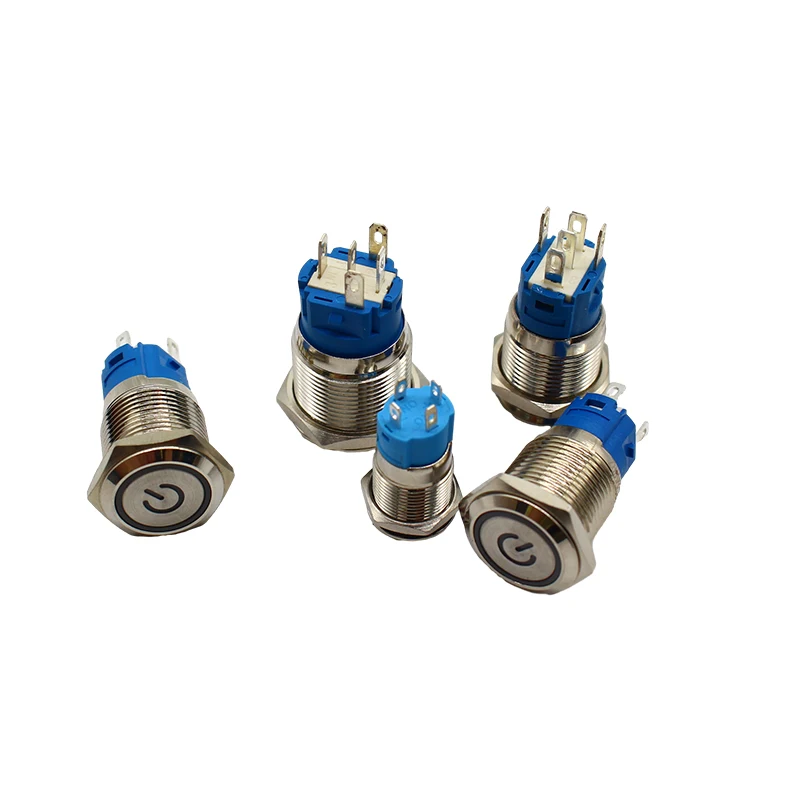

Produktdetails in Bildern

Produkteigenschaften

Markenname

ELEABC

Material

Edelstahl

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Aktuell

3A

Merkmale

self-recovery and self-lock type

Artikeltyp

SCHALTER

Garantie

1 years

Schaltertyp

DRUCKKNOPFSCHALTER

Zertifizierung

CQC

Zertifizierung

CCC

Modellnummer

12/16/19/22mm metal push button

Ist ein intelligentes Gerät

no

Customizable Material

Stainless steel

LED Colors

Red Yellow Blue White Green

Customizable LED Colors

Purple Orange

LED Voltage

Please choose the right Voltage in option

Using

Car PC machine Device buttons

Level

IP65

Rating switch

3A / 250VAC

Customization

Yes, please leave a message to us

Switch type

NO (Normally Open); NC ((Normally Closed )

Opening diameter

12mm/16mm/19mm/22mm

Choice

yes

semi_Choice

yes
