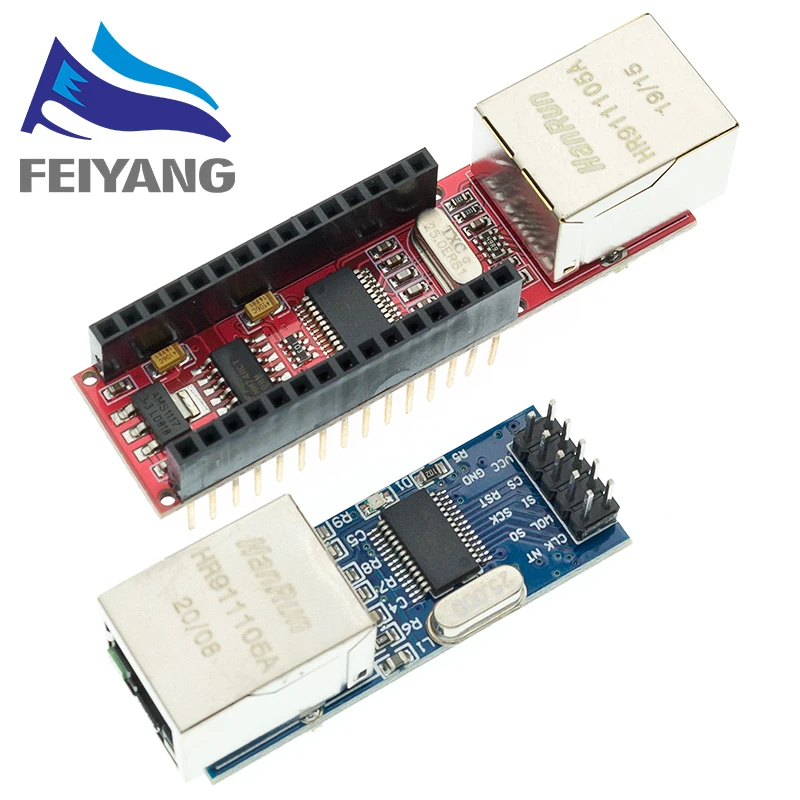

Mini ENC28J60 Ethernet Shield für Nano SPI Interface LAN Netzwerkmodul

Produktbeschreibung

ENC28J60 LAN Product Description
Brand new and high quality.
chip board ENC28J60-I/SO.
the board 25MHZ crystal.
the network interface board HR911105A.
3.3 V power supply pin.
Size:5.9cm x 3.5cm - 2.32inch x 1.38inch.
Debug reminder
1, the IP address of the computer to a network segment and module such as IP module 192.168.1.2, IP computer set: 192.168.1.3; 192.168.1 is the 3 section
2, cross the network cable connected to the mouth of the computer network module and mouth; (that is, the cable network 1 3,2 cross, and then do not understand that there are pictures Baidu)
3, the module and the MCU connection should pay attention to the connection of each line is reliable (the surface is not even connected to the good)
4, and the MCU port IO to confirm that is right
5, the program recompile, download, confirm whether to download! STM32 and 51 IO
Wiring instructions
############STM32 connection ##########
STM32f103VBT6 ENC28J60 module or other stm32
PC10----------- RESET
PC12--------- CS //PC12 pull-up output mode
//SPI1
PA5----------- SCK / / output mode
