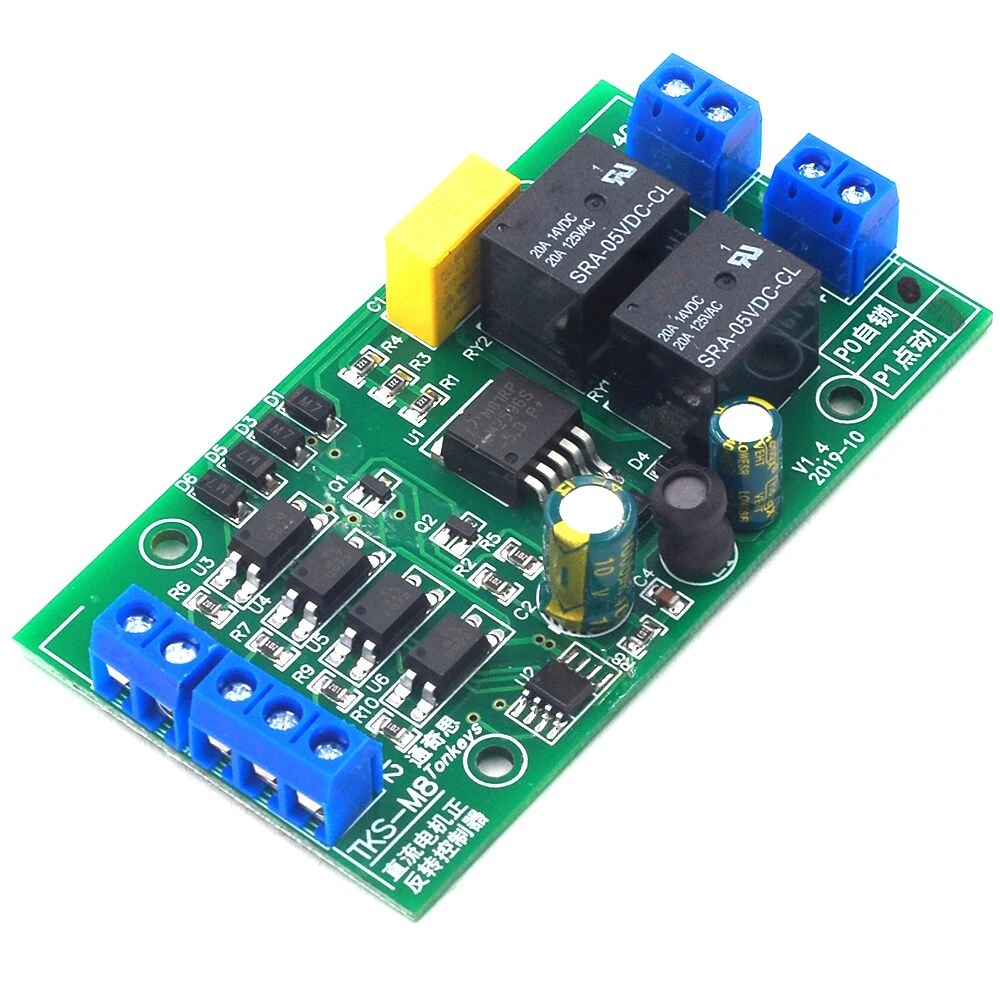

DC 6V 12V 24V DC Motor Vorwärts- und Rückwärtsregler 20A Hochstrom mit Limit-Relais-Treiber-Hebe-Steuerplatine

Produktbeschreibung

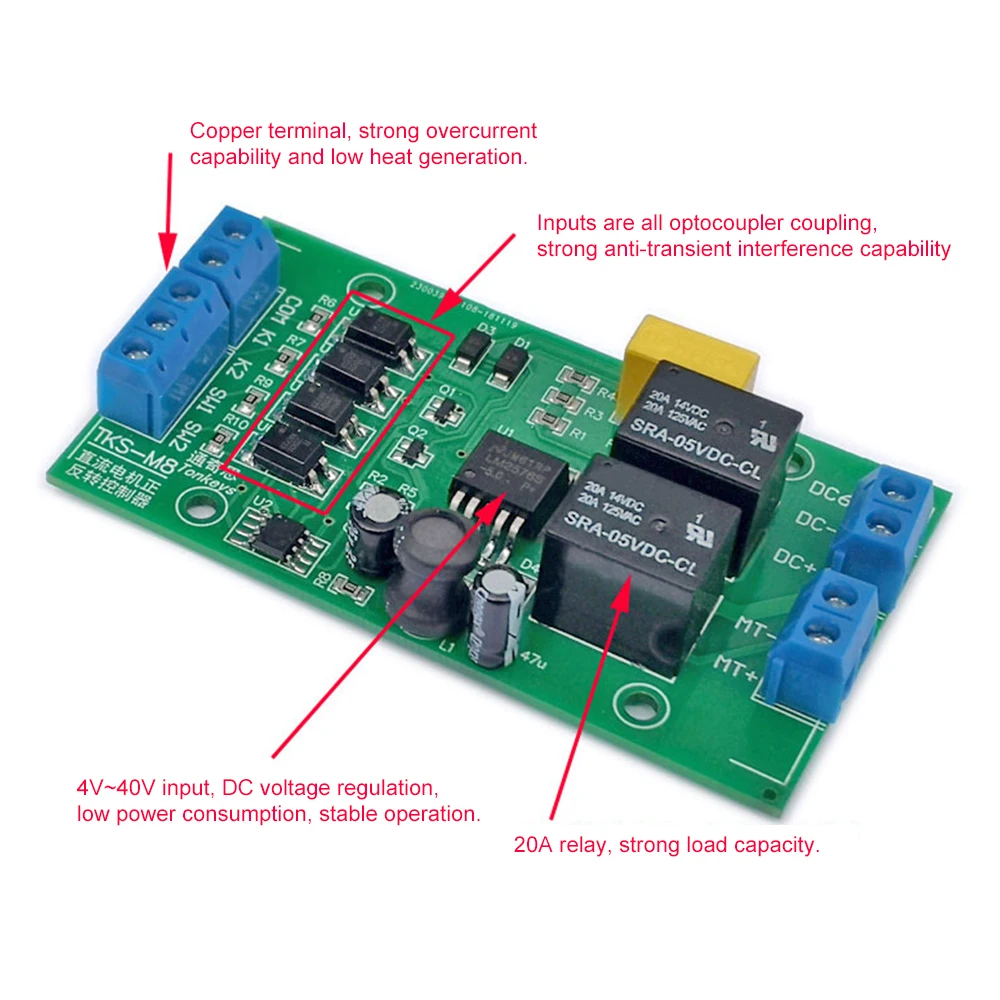

Specification
Working voltage: wide voltage DC4V~40V
Module power consumption: 0.6W (without load motor), static 0.1W
Signal input: active low level, the input is the negative pole of the optocoupler. When the voltage is lower than 2V, it is considered that there is a signal
Response speed: K1 K2 is 20mS, SW1 SW2 is 50mS
Output current: 20A
Action life: > 150,000 times
PO/Standard version: After a short trigger, the motor will keep running until it encounters a limit or commutation signal
P1/jog version: run when there is a signal, stop when there is no signal (ie, press to run, release to stop)
Common problems
1. What is the difference between PO and P1 versions?
PO is self-locking mode. For example, when the external forward switch (K1) is pressed, the motor will immediately rotate forward. At this time, the switch will be released immediately, and the motor will still keep rotating forward. It will not stop until it encounters the reverse rotation signal (K2) or the forward rotation stop signal (SW1).
P1 is in jog mode. For example, when the external forward switch (K1) is pressed, the motor will rotate forward. When K1 is released, the motor will stop running immediately.
2. What are the requirements for the signal, can the sensor be connected?
The signal is active low, it can be a three-wire sensor (NPN-NO type), K1 K2 Sw1 SW2 is still this specification.
3. Is the limit signal valid in P1 jog mode?
Valid, for example, if K1 has a signal, it will rotate forward, but the SW1 limit also has a signal, and it will stop at this time (it will not rotate forward).
4. What is the limit signal?
The limit signal can also be called a stop signal. The limit signal is trigger type and level-enabled. For example, if a short limit signal is encountered during forward rotation, it will stop, even if the limit signal disappears, it will still stop. The forward rotation signal must be restarted to run forward again.
5. What is the input and output voltage?

Produktdetails in Bildern

Produkteigenschaften

Markenname

diymore

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

Versorgungsspannung

The same as input voltage

Verlustleistung

DC Motor Forward and Reverse Controller

ist kundenspezifisch

Ja

Betriebstemperatur

TKS-M8 DC Motor Driver Module

Anwendung

Elektrisches Spielzeug

Paket

SMD

Choice

yes

semi_Choice

yes
