RC EDF Motoren

12V 9000KV Inrunner Bürstenlosen Motor High Speed Jetfan EDF Kanal Fan Luft Gebläse Turbo Für DIY Druckluft Duster reiniger

19,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 7–14 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Features of the motor ESC integrated version
1. The heat dissipation effect is not as good as the motor ESC split version. It is recommended to run at maximum power for less than 20 seconds.

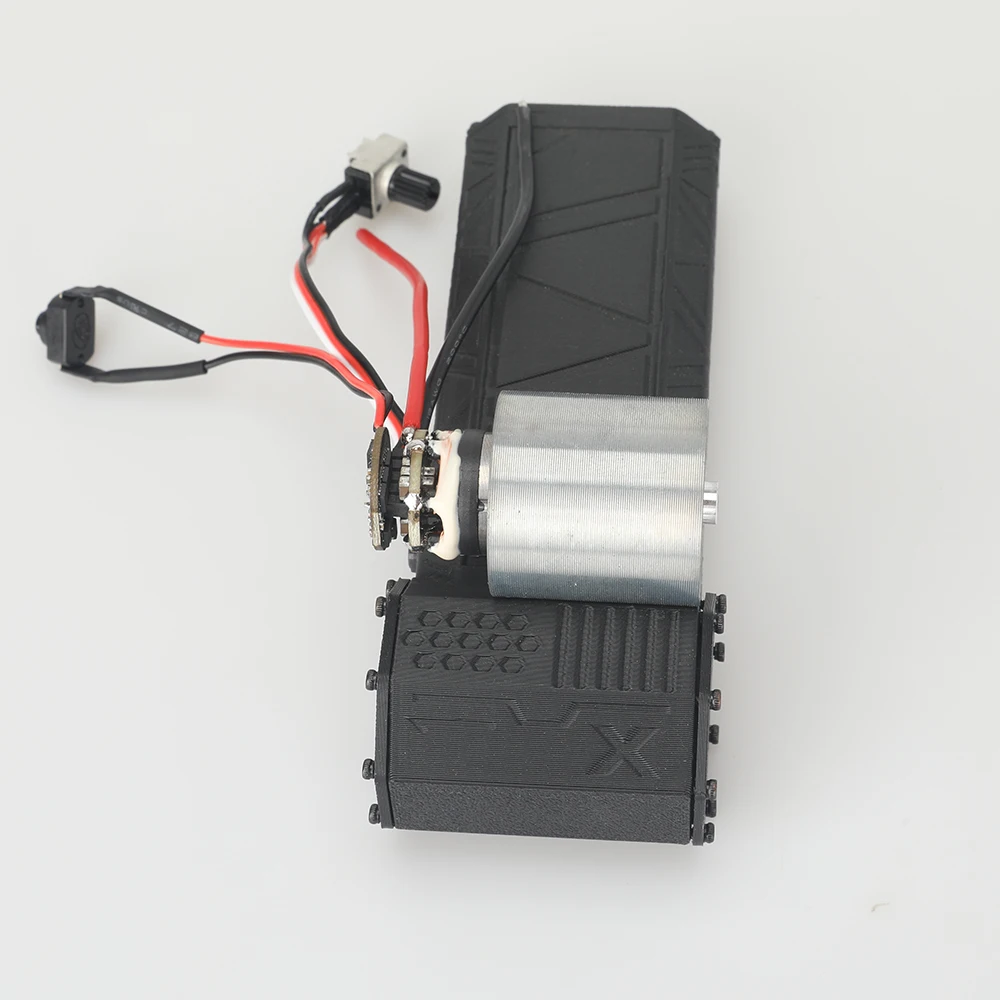

2. The motor ESC integrated version has a relatively long length. When installing the casing, please pay attention to whether the size of the casing is appropriate.
3. The motor ESC integrated version allows the motor to run immediately when the switch is pressed, and the speed can be adjusted through the speed control knob. No need for self inspection.
4. Higher cost-effectiveness. If you are a beginner, we recommend purchasing the motor ESC integrated version.

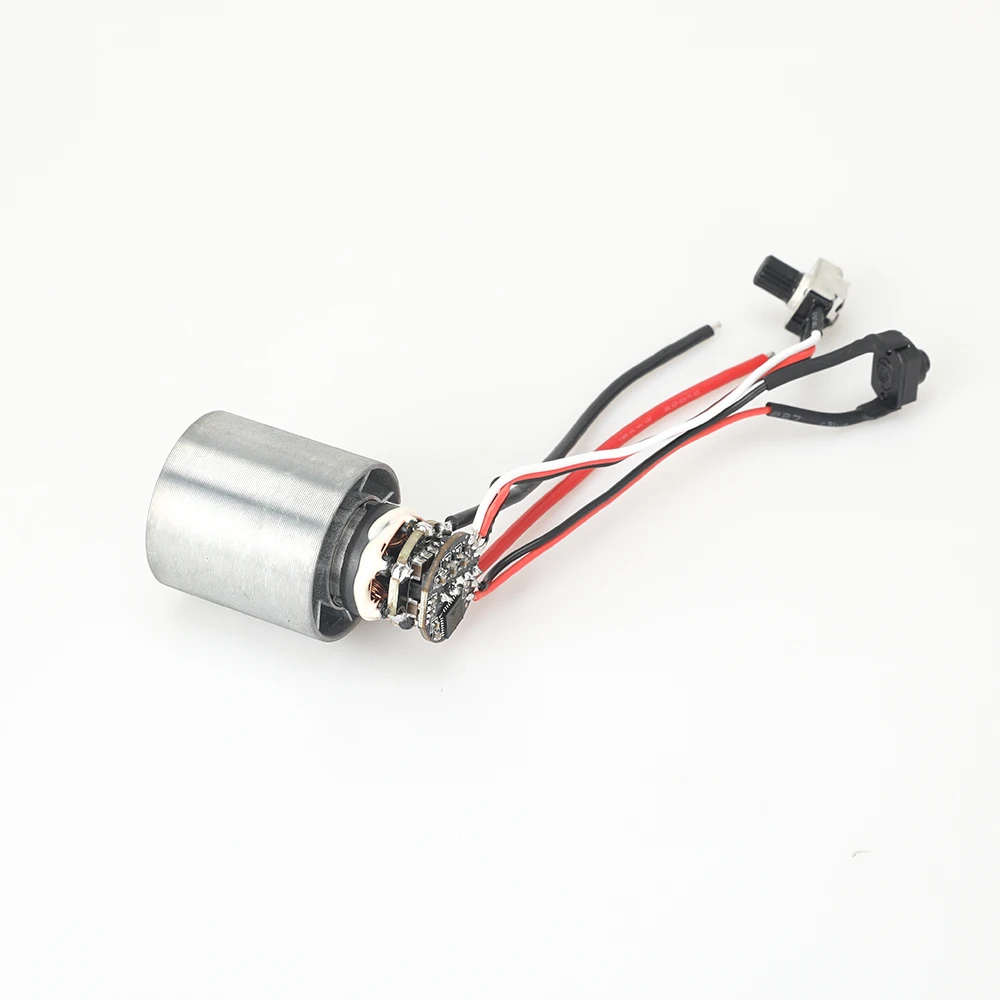

Motor ESC integrated version
max.power：250W
max.current：12.6V version is 22A，8.4V version is 30A(Please match your battery based on this data)
Notes

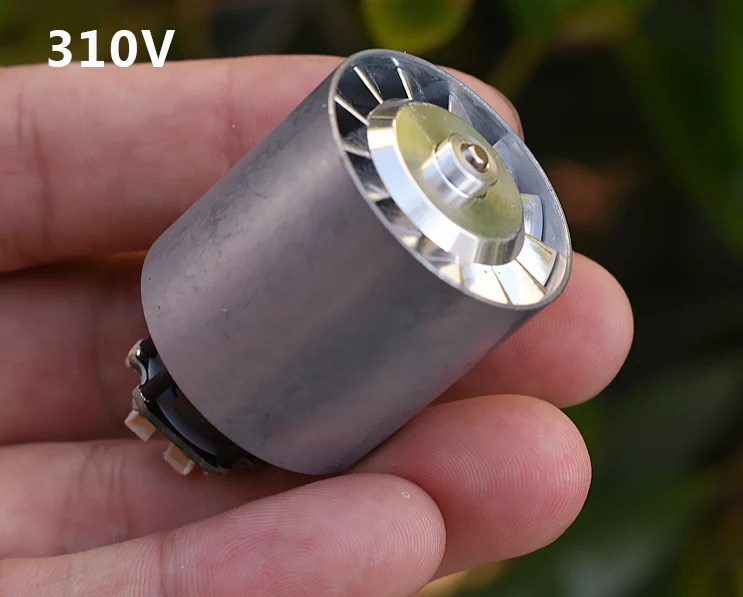

310V brushless duct fan with a power of 60W and a 110000 rpm high-speed motor is used for hair dryer. The fan does not come with ESC and requires an additional driver to be used. We don't have sales drivers.
The 7.4V-12.6V winding is our own modified winding. Can be activated using the RC ESC.
***Cannot work without ESC***
Tips
1.Due to the fact that the product is modified, it may appear defective in appearance.
2.Made of aluminum alloy shell, it has a relatively heavy weight and although it has a large thrust, it is not suitable for use in aircraft models, can be used for DIY fans and other purposes
Specifications：
Weight: 59g
Material：Aluminum alloy
KV value：9000kv（7.4-12.6V version）
Power：310V=60W，12.6V=160w MAX.
