40KG Servo DS3240 Digitales Servo mit Hohem Drehmoment 180 270 Grad Wasserdichtes Metallgetriebe Baja Servo für 1/8 1/10 Maßstab RC Crawler Autos

Produktbeschreibung

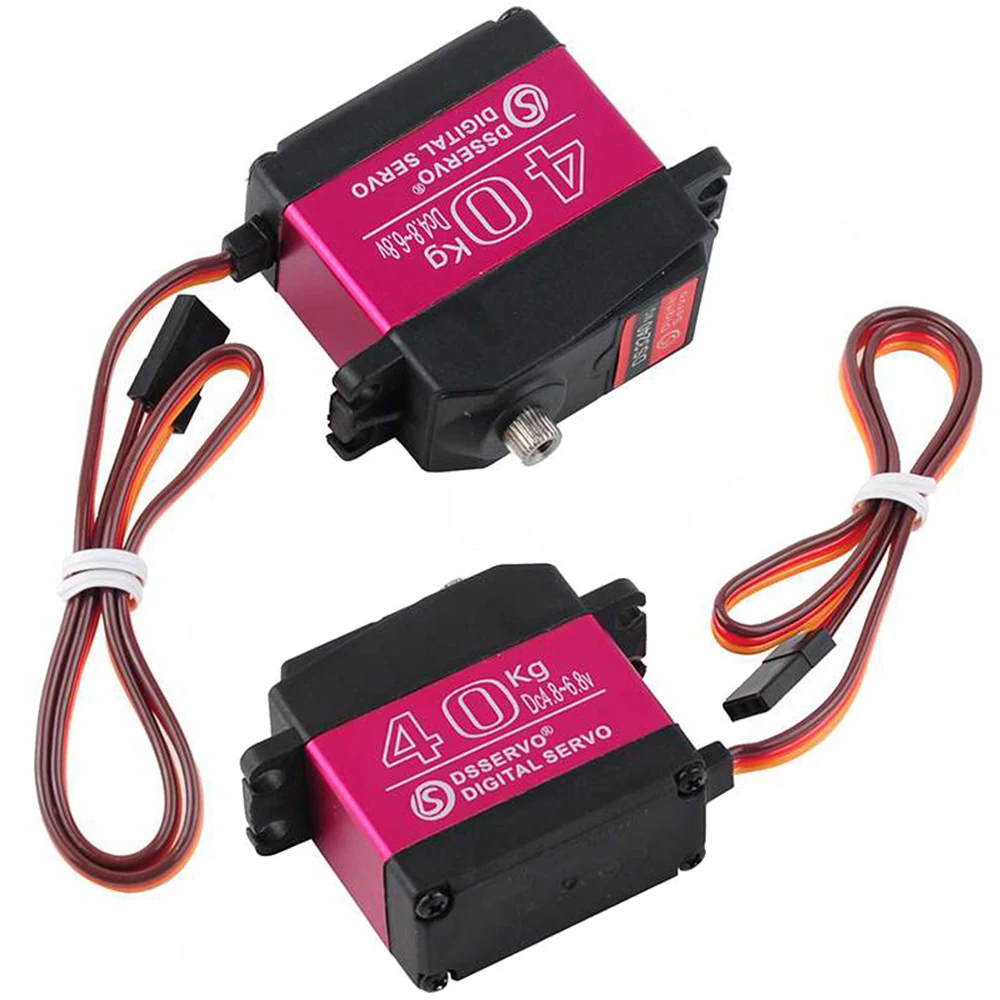

40KG Servo DS3240 Large Torque Digital Servo 180 270 degree Waterproof Metal Gear Baja Servo for 1/8 1/10 Scale RC Crawler Cars
Specification
� Motor Type: DC Motor
� Weight: 60 g (2.12 oz)
� Operating Voltage: 4.8 ~ 6.8 DC Volts; • Dead brand: 3μs
� Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
� Gear Type: Copper & Aluminum
� Working frequence: 1520μs / 334hz
Electrical Specification
Operating Voltage: --------------5V-----------6.8V
Idle current(at stopped): -------4mA----------5mA
Operating speed (at no load): 0.20 sec/60°---0.17sec/60°
Stall torque (at locked): -------36 kg-cm-----45 kg-cm
Stall current (at locked): --------3.1A---------3.9A
Control Specification
Control System: PWM(Pulse width modification)
Pulse width range: 500～2500µsec
Neutral position: 1500µsec
Running degree: 180° or 270°(when 500～2500 μ sec)
Dead band width: 3 µsec

Produktdetails in Bildern

Produkteigenschaften

Markenname

DIYmalls

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)
